Speaker Enclosure: Notes

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

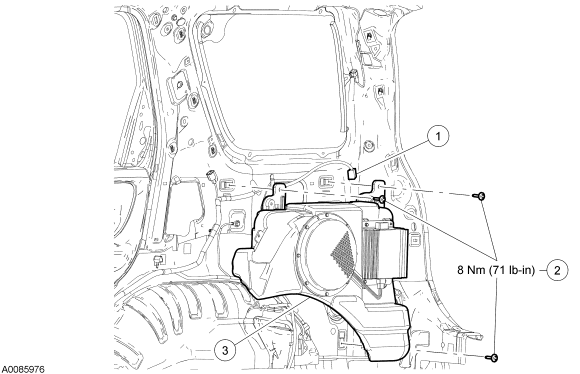

Fig 1: Exploded View Of Speaker Enclosure With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	18C808	Subwoofer amplifier electrical connector
2	W520802	Speaker enclosure bolts (3 required)
3	19A069	Speaker enclosure
