Fuel Distributor Tightening Procedure - AR07.03-P-1030-01MFC
Engine 260
FUEL DISTRIBUTOR
| Number | Designation | Engine 260 | |
|---|---|---|---|
| BA07.52-P-1001-01H | Screw/bolt, fuel distributor to cylinder head cover | Nm | 8 |
Do not use an impact wrench/driver or compressed-air tool to screw in/unscrew the bolts (1 to 8).
The threads in the cylinder head cover may be damaged otherwise.
- Insert bolts (1 to 8) alternately by turning them half a revolution from the center outward.
Start in the center from the fuel distributor and work your way outward.
The fuel distributor may otherwise be damaged.

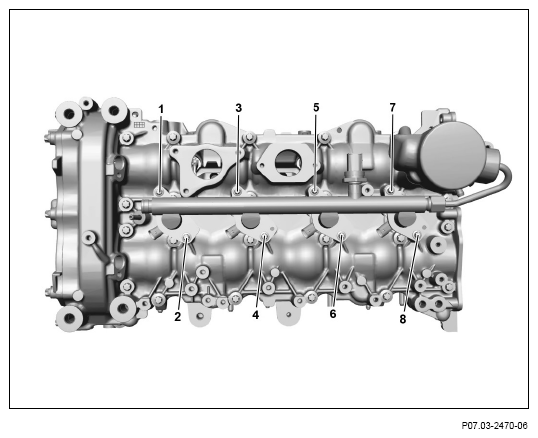

- Tighten screws/bolts (1 to 8) as per the figure in numerical sequence
.
