Remove/Install Fuel Level Sensor - AR47.50-P-0110MNA
Model 205 with engine 177, 264, 274, 276, 651, 654
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove fuel pump. | Model 205 with engine 177, 274.9, 276.8, 651, 654 | AR47.20-P-5710LW |
| Model 205 with engine 264 | AR47.20-P-5710MRI | ||

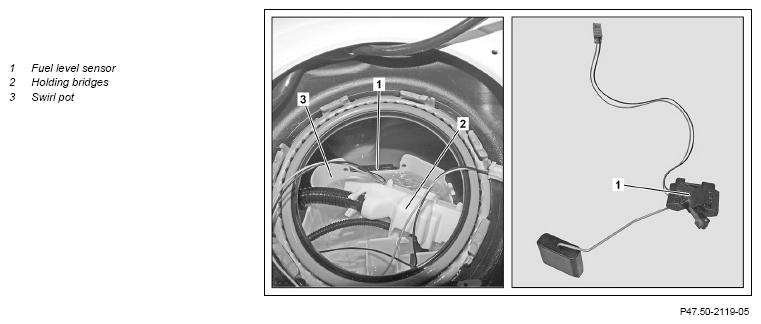

| 2 | Unclip holding bridge (2) from the swirl pot (3) and press forward with connected lines. | ||
| 3 | Unclip fuel level sensor (1) from swirl pot (3) upward and remove. | ||
| 4 | Install in the reverse order. |
