Remove/Install Rear Door Triangular Window - AR67.30-P-2570MFC
Model 118.3/6
Shown on left side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury from contusions to hands if window glass is not secured | Secure window to prevent it from falling down. | AS67.00-Z-0002-01A | |
| Remove | |||
| 1 | Remove rear door side window. | AR67.30-P-0006MFC | |
| 2 | Remove covers (2). | ||
| 3 | Loosen screw/bolt (3). | ||

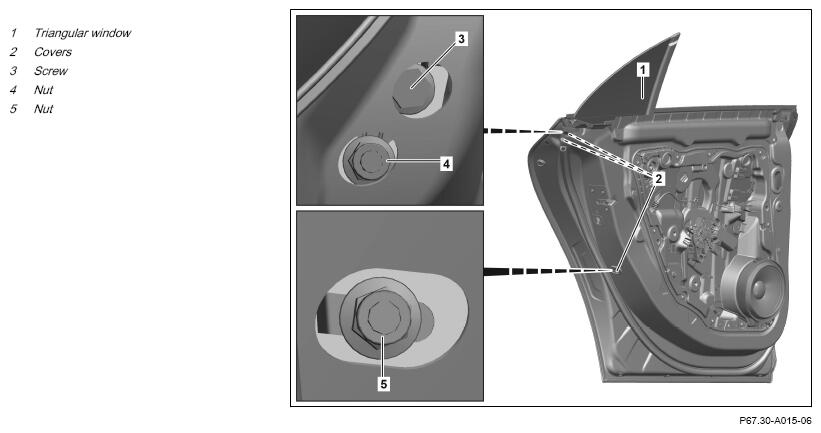

| 4 | Release nut (4). | Fig 1 | |
| 5 | Loosen nut (5). | ||
| 6 | Remove triangular window (1) upward. | ||
| Install | |||
| 7 | Replace nuts (4, 5). | Position nuts (4, 5) on threads on triangular window (1) by just a few revolutions. | |
| 8 | Remove screw (3) at triangular window (1) and position on new triangular window (1). | When replacing triangular window (1). | |
| 9 | Insert triangular window (1) into window channel and position. | When inserting the triangular window (1), ensure that the seal is not damaged. Otherwise noises from water entry can occur. |
|
| 10 | Tighten nut (4) lightly by hand. | Fig 1 | |
| 11 | Tighten nut (5) lightly by hand. | ||
| 12 | Manually slightly tighten screw (3). | ||
| 13 | Install rear door side window. | AR67.30-P-0006MFC |
