Armrest Heating Control Unit, Basic Function - GF68.20-P-9890A
Model all (CAR)
with code 906 (Front armrest heater)
Model all (CAR)
with code 907 (Rear armrest heater)
Overview
This document contains information on:
- General
- Location
- Function requirement
General
The armrest heating control unit regulates the functions of the armrest heating in the center console. Additionally, depending on the model, the requests for operating the heating function are transmitted by the rear SAM control unit via the LIN unit and sent accordingly to the heating elements of the armrest in the front center console. The temperature and function are constantly monitored through evaluation of the signals of the temperature sensors on the front center console armrest heating elements.
Location

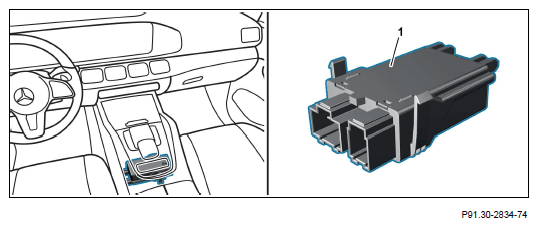

The armrest heating control unit (1) is located in the center console. This can, however, vary depending on the model. Separate installation locations are listed in the below table.
- Armrest heater control unit
Function requirement
- Circuit 15R ON
- Heat heater coded
| Component description | |||
| Armrest heater control unit, component description | Model 223 with code 906 (Front armrest heater) Model 223 with code 907 (Rear armrest heater) |
GF68.20-P-2001A |
