Remove, Install Fuel Pressure And Temperature Sensor - AR07.04-P-0091MSA

Engine 256.9 in model 213, 238, 257, 290

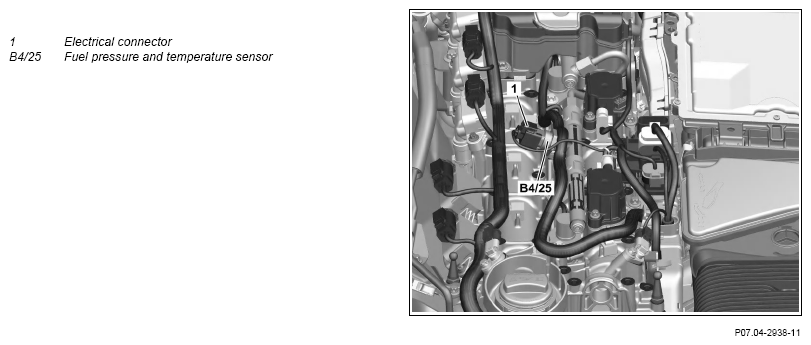

Fig 1: Fuel Pressure And Temperature Sensor Components Location - Engine 256.9 In Model 257
G14548196Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
DANGER Risk of explosion  caused by fuel igniting. Risk of injury  to skin and eyes caused by fuel spraying out at high pressure Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. AS07.16-Z-0001-01A
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
Topical note  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A
REMOVINGINSTALLING Remove/install
1 Disconnect ground line from battery. Engine 256.9 in model 213 AR54.10-P-0003LW
    Engine 256.9 in model 238 AR54.10-P-0003LWO
    Engine 256.9 in model 257, 290 AR54.10-P-0003FR
2 Remove upper engine cover. INSTALLATION IMPORTANT Only install upper engine cover after the leak test. AR01.10-P-2405MSA
3 Remove front noise insulation. INSTALLATION IMPORTANT Do not install front noise insulation until after the leak test.
4 Release electrical connector (1) and disconnect.
CLEAN Clean
5 Clean surrounding area of fuel pressure and temperature sensor (B4/25). Assembly cleaner *BR00.45-Z-1028-04A
6 Relieve fuel pressure in high-pressure fuel circuit.   AR07.03-P-1460-02MM
7 Remove fuel pressure and temperature sensor (B4/25). TORQUE SPECIFICATION Pressure and temperature sensor to fuel distributor *BA07.52-P-1002-01G
8 Install in the reverse order.
9 Read out and delete fault memory.
REFER TO SELF-DIAGNOSTIC SYSTEMS   Engine 256.9 in model 213 AD00.00-P-2000-04B
REFER TO SELF-DIAGNOSTIC SYSTEMS   Engine 256.9 in model 238 AD00.00-P-2000-06LWO
REFER TO SELF-DIAGNOSTIC SYSTEMS   Engine 256.9 in model 257, 290 AD00.00-P-2000-06FR
INSPECT Check
10 Check fuel high pressure circuit for leak tightness.   AR07.03-P-1010-04MM
REFER TO SELF-DIAGNOSTIC SYSTEMS   Engine 256.9 in model 213 AD00.00-P-2000-04B
REFER TO SELF-DIAGNOSTIC SYSTEMS   Engine 256.9 in model 238 AD00.00-P-2000-06LWO
REFER TO SELF-DIAGNOSTIC SYSTEMS   Engine 256.9 in model 257, 290 AD00.00-P-2000-06FR
11 Carry out engine test run and check engine for proper operation and leak tightness.
12 Install front noise insulation.
13 Install upper engine cover.   AR01.10-P-2405MSA
FUEL DISTRIBUTOR

Number Designation Engine 256.9
BA07.52-P-1002-01G Pressure and temperature sensor to fuel distributor Nm 37
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
