Hood Lifter, Basic Function - GF91.60-P-2017A
Model all (CAR)
with code U60 (Pedestrian protection - Active hood)
Overview
This document contains the following information:
- Location
- Task
Location

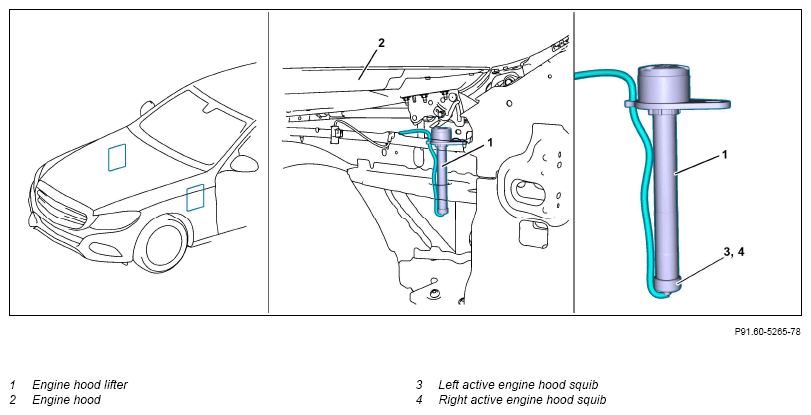

The hood lifters (1) are located left and right under the hinges of the hood (2).
Task
The hood lifters (1) implement the pedestrian protection. The hood (2) is lifted at the back by approx. 8 cm when the squibs are triggered. The Supplemental Restraint System (SRS) control unit actuates the squibs directly.
| Component descriptions | |||
| Engine hood lifter, component description | Model 223 with code U60 (Pedestrian protection - Active hood) | GF91.60-P-1000A | |
| Model 206 with code U60 (Pedestrian protection - Active hood) | GF91.60-P-1000C | ||
| Model 297 with code U60 (Pedestrian protection - Active hood) | GF91.60-P-1000D |
