Overview Of System Components For Supplemental Restraint System - GF91.60-P-9996FR
Model 257, 290
up to model year 2021

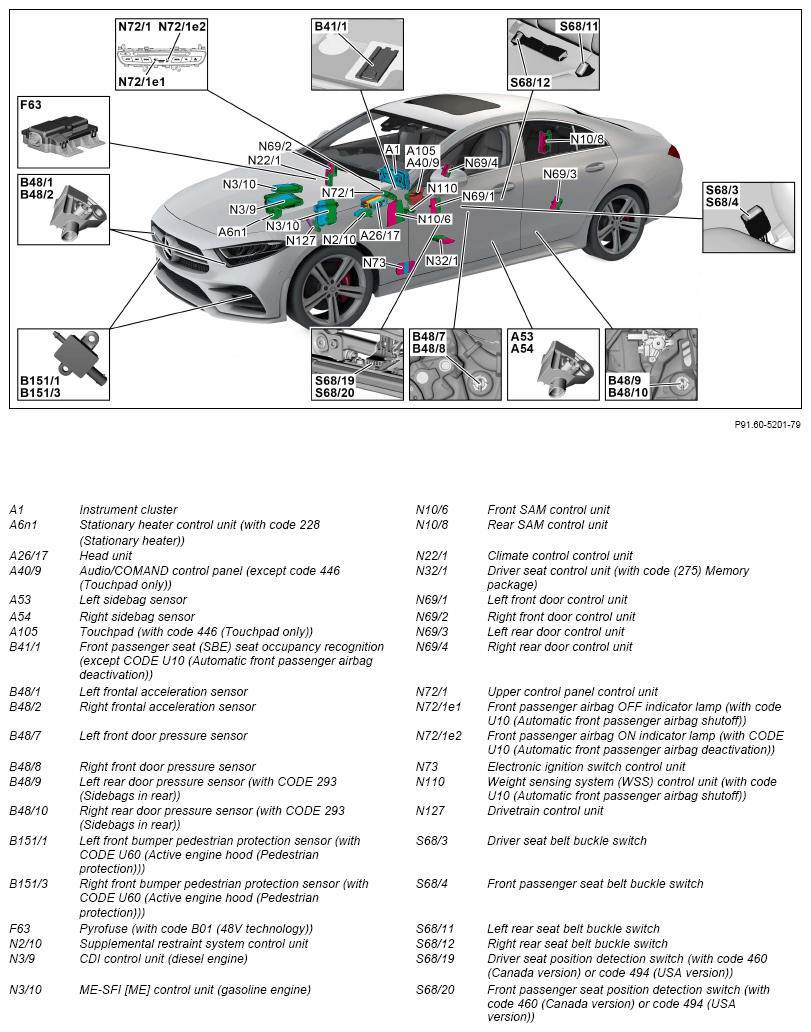

Overview of system components, shown on model 257
Overview of system components, shown on model 257
| Component description for instrument cluster | A1 | GF54.30-P-6000FR | |
| Stationary heater control unit, component description | Model 257 up to model year 2021 with code 228 (Additional warm water heating) A6n1 | GF83.70-P-4066FR | |
| Head unit, component description | Model 257 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FRA | |
| Model 257 up to model year 2021 with code 531 (COMAND APS) A26/17 | GF82.85-P-3140FRB | ||
| Component description for Audio/COMAND control panel | Model 257 up to model year 2021 except code 446 (Touchpad only) A40/9 | GF54.21-P-4501FR | |
| Touchpad, component description | Model 257 up to model year 2021 with code 446 (Touchpad only) Model 257 up to model year 2021 with code 448 (Touchpad) A105 |
GF54.21-P-4511FR | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FR | |
| Component description for CDI control unit | Model 257 with engine 654.9 up to model year 2021 N3/9 | GF07.16-P-6000ORD | |
| Model 257 with engine 656.9 up to model year 2021 N3/9 | GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 257 with engine 256.9 up to model year 2021 N3/10 | GF07.61-P-6000MRT | |
| Model 257 with engine 264.9 up to model year 2021 N3/10 | GF07.61-P-6000MRG | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FR | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030FR | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250FR | |
| Component description for driver seat control unit | Model 257 up to model year 2021 with code 275 (Memory Package (driver's seat, steering column and mirror)) Model 257 up to model year 2021 with code 278 (Fully electric front seats) N32/1 |
GF91.29-P-5231FR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FR | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FR | |
| Upper control panel control unit, component description | N72/1, N72/1e1, N72/1e2 | GF54.21-P-6040FR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FR | |
| Component description for Weight Sensing System (WSS) control unit | N110 | GF91.60-P-4069FR | |
| Drivetrain control unit, component description | Model 257 with engine 264.9 up to model year 2021 N127 | GF54.21-P-2141MRP | |
| Model 257 with engine 654.9 up to model year 2021 N127 | GF54.21-P-2141ORD | ||
| Table of contents for function description of supplemental restraint system function | GF91.60-P-0996FR |
