Overview Of System Components Of Permanent All-Wheel Drive - GF28.00-P-9997AVN
Model 257 (except 257.361) with transmission 725.0
up to model year 2021

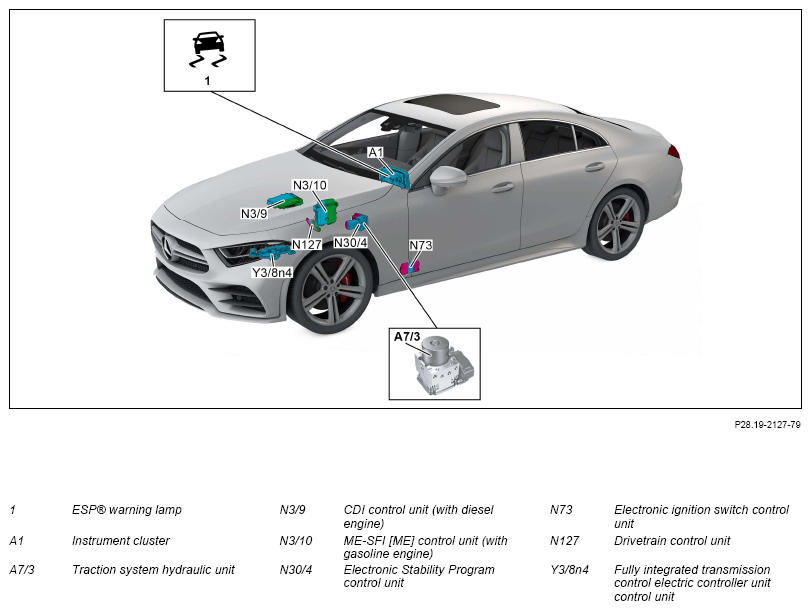

View of model 257
| Component description for instrument cluster | A1 | GF54.30-P-6000FR | |
| Component description for CDI control unit | Model 257 with engine 656.9 with transmission 725.0 up to model year 2021 N3/9 |
GF07.16-P-6000OIA | |
| Component description for ME-SFI (ME) control unit | Model 257 with engine 264.9 with transmission 725.0 up to model year 2021 N3/10 |
GF07.61-P-6000MRG | |
| Model 257 (except 257.361) with engine 256.9 with transmission 725.0 up to model year 2021 N3/10 |
GF07.61-P-6000MRT | ||
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FR | |
| Drivetrain control unit, component description | Model 257 with engine 264.9 with transmission 725.0 up to model year 2021 N127 |
GF54.21-P-2141MRP | |
| Model 257 with engine 656.9 with transmission 725.0 up to model year 2021 N127 |
GF54.21-P-2141OIA | ||
| Model 257 (except 257.361) with engine 256.9 with transmission 725.0 up to model year 2021 N127 |
GF54.21-P-2141LF | ||
| Fully integrated transmission control electric controller unit control unit, component description | Model 257 (except 257.361) with transmission 725.0 up to model year 2021 Y38n4 |
GF27.60-P-5120ANR | |
| Table of contents for function description of permanent all-wheel drive | GF28.00-P-0998AVN |
