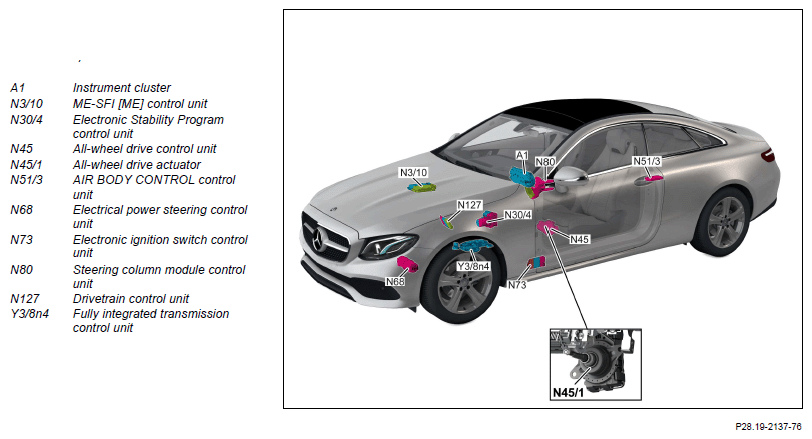

Overview Of System Components, Automatically Controlled All-Wheel Drive (4MATIC) - GF28.00-P-9998FH
Model 238 Up To Model Year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive)

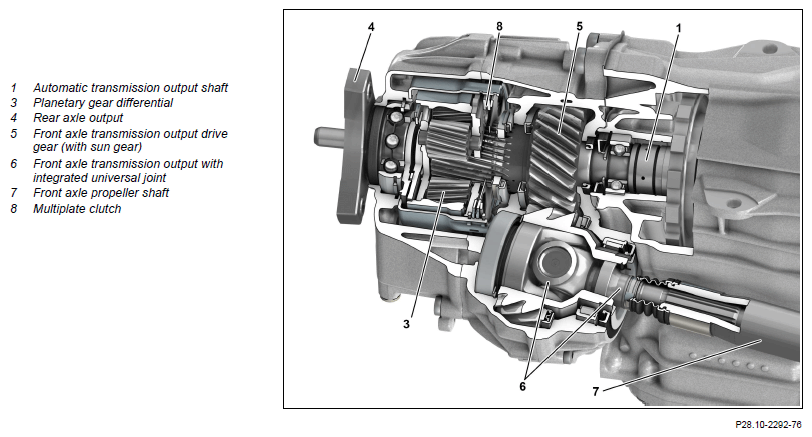

Sectional view of transfer case, shown on engine 274
Variable drive torque distribution (model 238.361/461)
| Component description for instrument cluster | A1 | GF54.30-P-6000FH | |
| Component description for ME-SFI (ME) control unit | Model 238 with engine 256.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N3/10 | GF07.61-P-6000MRT | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FH | |
| All-wheel drive control unit, component description | Model 238.361/461 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N45, N45/1 | GF28.19-P-3211FH | |
| AIR BODY CONTROL control unit, component description | Model 238 up to model year 2021 with code 489 (AIR BODY CONTROL) with code M005 (Vehicles with 4MATIC/all-wheel drive) N51/3 | GF32.22-P-5111FH | |
| Electric power steering control unit, component description | N68 | GF46.35-P-7012FH | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FH | |
| Component description for steering column tube module control unit | Model 238 up to model year 2019 with code M005 (Vehicles with 4MATIC/all-wheel drive) N80 | GF54.21-P-6051FH | |
| Model 238 as of model year 2019 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N80 | GF54.21-P-6051FHG | ||
| Drivetrain control unit, component description | Model 238 with engine 256.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N127 | GF54.21-P-2141LF | |
| Component description for fully integrated transmission control unit | Model 238 with transmission 725.0 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) Y38n4 | GF27.60-P-5165FH | |
| Table of contents for function description, automatically controlled all-wheel drive (4MATIC) | GF28.00-P-0999FH |
