Remove/Install Lower Engine Compartment Lining - Ar61.20-P-1105XG
Model 463
as of model year 2019
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Raise vehicle using vehicle lift. | AR00.60-P-1006A | |

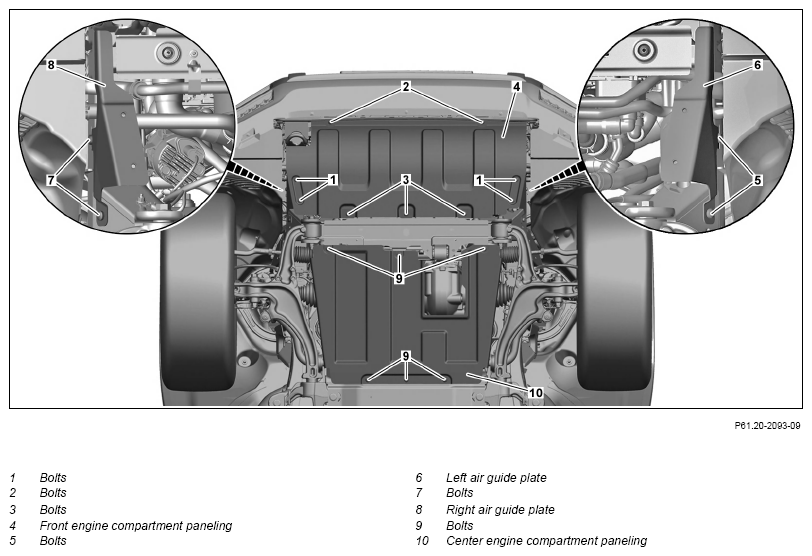

| 2 | Remove the screws (1). | *BA61.20-P-1003-01A | |
| 3 | Remove screws (2, 3). | *BA61.20-P-1001-01A | |
| 4 | Remove front engine compartment lining (4). | ||
| 5 | Unscrew the bolts (5). | ||
| *BA61.20-P-1004-01A | |||
| 6 | Remove left air guide plate (6). | ||
| 7 | Remove screws (7). | *BA61.20-P-1004-01A | |
| 8 | Remove right air guide plate (8). | ||
| 9 | Remove screws (9). | *BA61.20-P-1005-01A | |
| 10 | Remove center engine compartment lining (10). | ||
| 11 | Install in reverse order. |
LOWER ENGINE COMPARTMENT PANELING
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA61.20-P-1001-01A | Bolt, lower engine compartment lining (front) to cross member/mounting rail | M10 | Nm | 58 |
LOWER ENGINE COMPARTMENT PANELING
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA61.20-P-1003-01A | Bolt, lower engine compartment lining (front) to air guide plate | M8 | Nm | 20 |
LOWER ENGINE COMPARTMENT PANELING
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA61.20-P-1004-01A | Bolt, air guide plate to frame | M8 | Nm | 20 |
LOWER ENGINE COMPARTMENT PANELING
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA61.20-P-1005-01A | Bolt, lower engine compartment lining (center) to frame | M10 | Nm | 35 |
