Remove/Install Track Rod - AR46.40-P-0200XG

Model 463

as of model year 2019

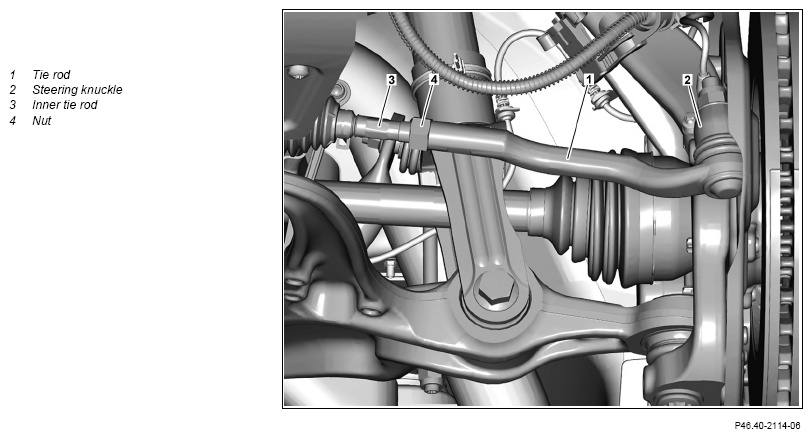

Fig 1: Tie Rod Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Remove wheel and tire assemblies at front.		AR40.10-P-1102XG
2	Counterhold tie rod (1) and nut (4).	Jam nut, tie rod to inner tie rod	*BA46.40-P-1003-01D
3	Remove tie rod (1) from steering knuckle (2).		AR46.40-P-0200-02XG
		Self-locking nut, tie rod to steering knuckle	*BA46.40-P-1002-01D
		Puller	Fig 2
4	Unscrew tie rod (1) from inner tie rod (3).
5	Install in reverse order.
	Check
6	Measure the suspension.		AR40.20-P-0200XG

TIE ROD

Number	Designation				Model 463 as of model year 2019
BA46.40-P-1002-01D	Self-locking nut, tie rod to steering knuckle	M14	Stage 1	Nm	50
			Stage 2	∠°	90

TIE ROD

Number	Designation		Model 463 as of model year 2019
BA46.40-P-1003-01D	Jam nut, tie rod to inner tie rod	Nm	65

Fig 2: Identifying Puller (221 589 00 33 00)

Courtesy of MERCEDES-BENZ USA
