Wiring Diagram For Steering Column Module Control Unit - PE46.10-P-2101-97ZHA
Model 463 (except 463.342)
as of model year 2019
Control unit N80
| Code: | Designation: | Position: |
|---|---|---|

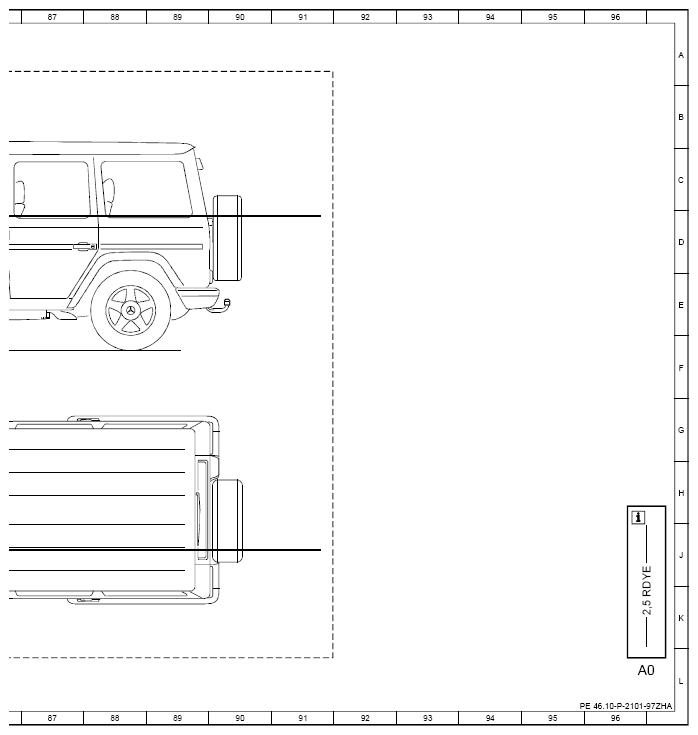

| A0 | Use of wiring diagrams | 96L |
| A74/2 | Lower multifunction steering wheel button group electric controller unit | 27L |
| Code L | LEFT-HAND DRIVE | 41L |
| Code L | LEFT-HAND DRIVE | 45L |
| Code L | LEFT-HAND DRIVE | 6E |
| Code LH1 | Heated steering wheel | 33A |
| Code R | RIGHT-HAND DRIVE | 41L |
| Code R | RIGHT-HAND DRIVE | 45L |
| Code R | RIGHT-HAND DRIVE | 6F |
| Code U88 | AMG steering wheel buttons (AMG DRIVE UNIT) | 24H |
| Flex E | Chassis FlexRay | 10K |
| Flex E | Chassis FlexRay | 12K |

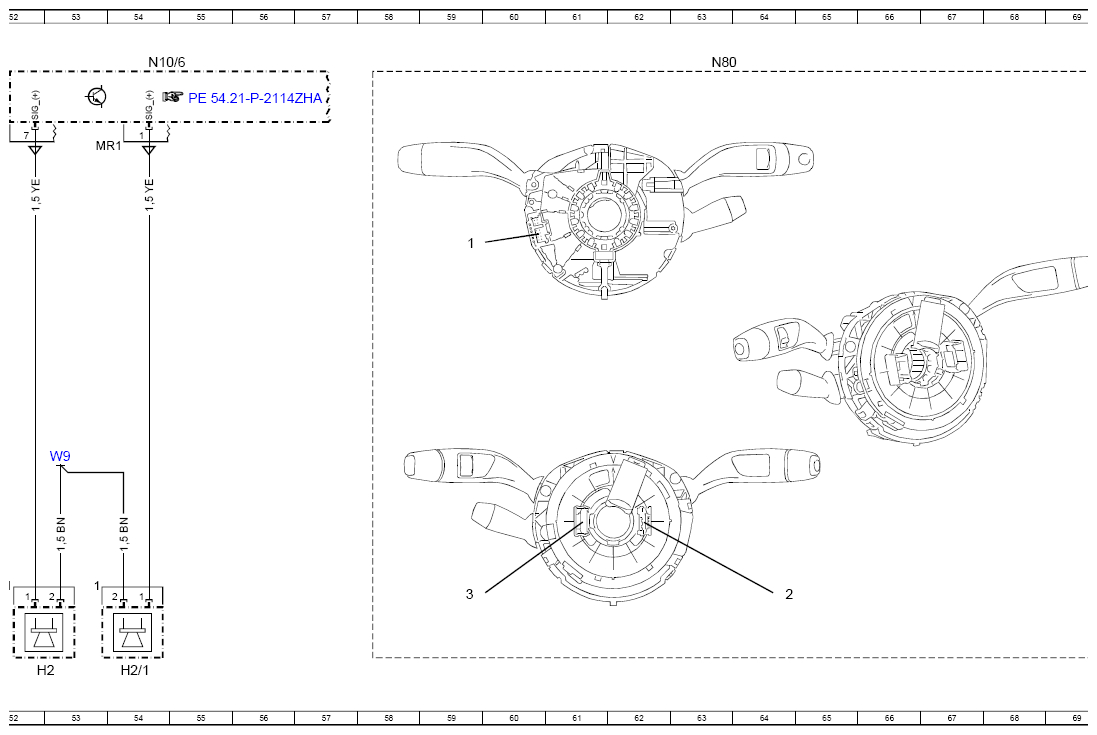

| H2 | Horn 1 | 52L |
| H2/1 | Horn 2 | 54L |
| K40/6 | Left fuse and relay module | 5L |
| K40/6f205 | Fuse 205 | 6L |
| K40/6f211 | Fuse 211 | 4L |
| N10/6 | Front SAM control unit | 54A |
| N127 | Drivetrain control unit | 12L |

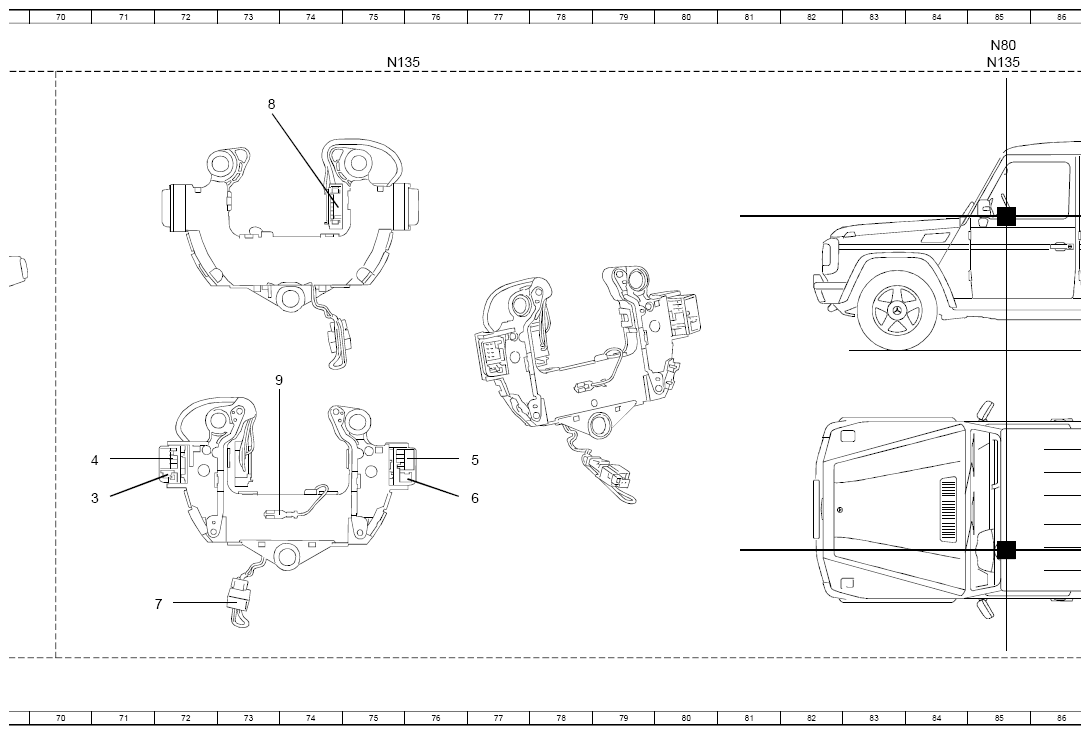

| N135 | Steering wheel electronics | 29A |
| N135 | Steering wheel electronics | 37A |
| N135 | Steering wheel electronics | 44A |
| N135 | Steering wheel electronics | 49A |
| N135 | Steering wheel electronics | 75A |
| N135 | Steering wheel electronics | 85A |
| N2/10 | Supplemental restraint system control unit | 15L |
| N30/4 | Electronic Stability Program control unit | 10L |

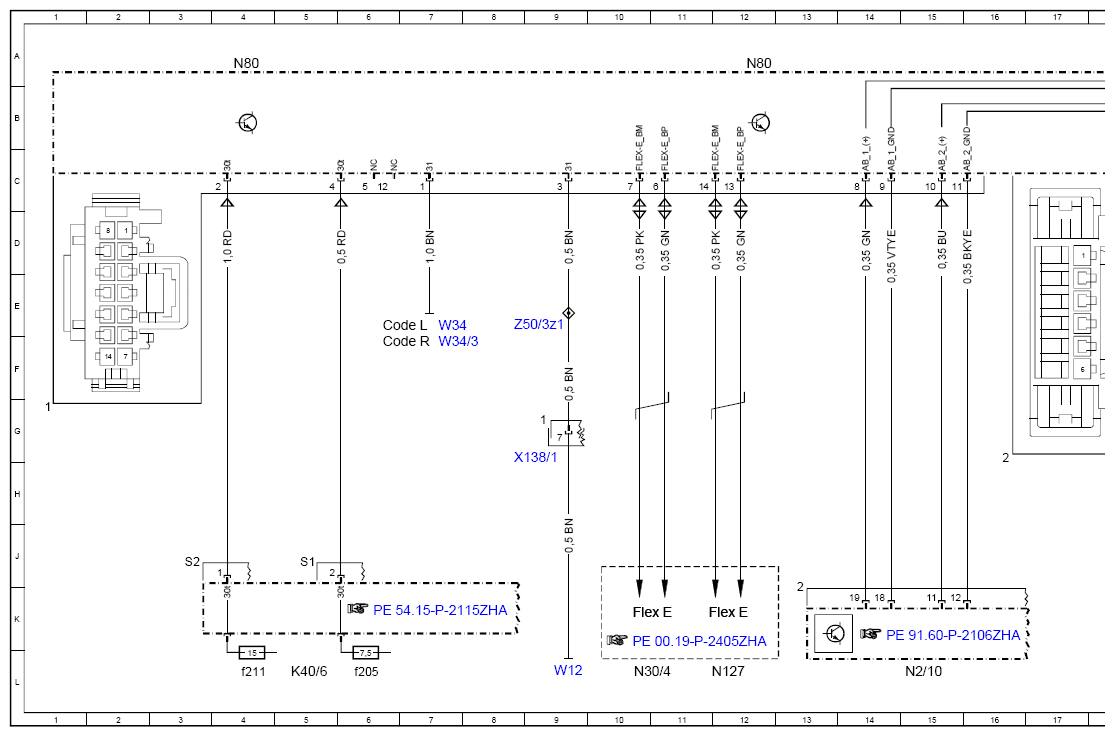

| N80 | Steering column module control unit | 4A |
| N80 | Steering column module control unit | 12A |
| N80 | Steering column module control unit | 20A |
| N80 | Steering column module control unit | 25A |
| N80 | Steering column module control unit | 63A |
| N80 | Steering column module control unit | 85A |

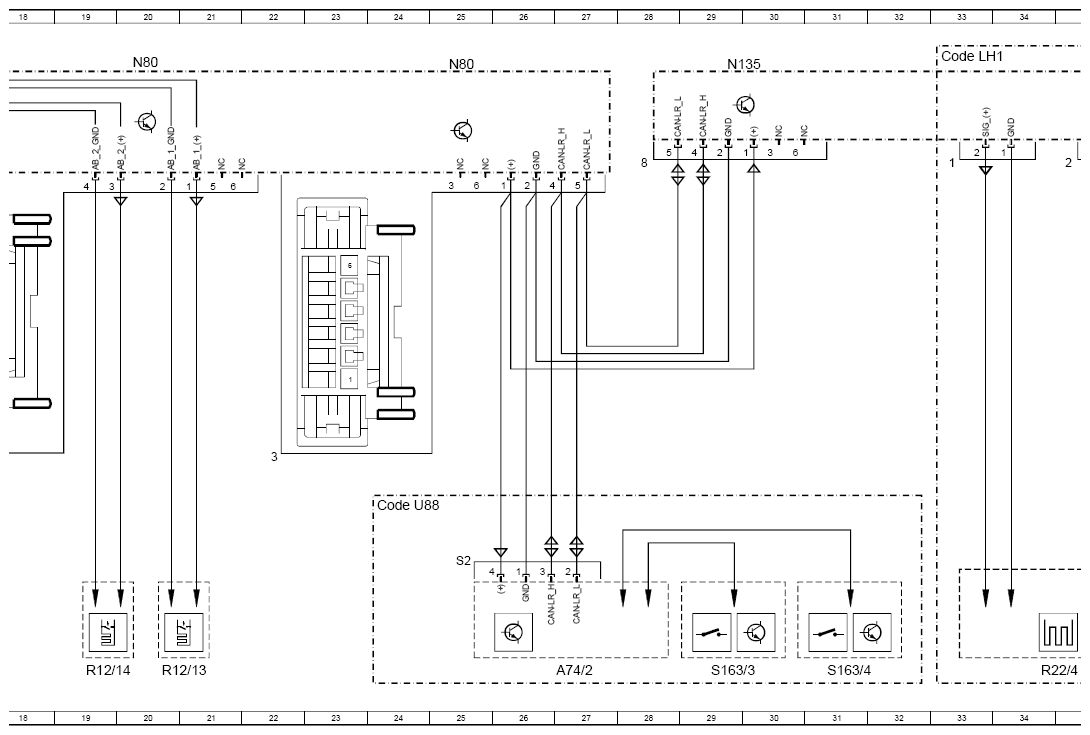

| R12/13 | Driver airbag squib 1 | 20L |
| R12/14 | Driver airbag squib 2 | 19L |
| R22/4 | Steering wheel heater | 34L |

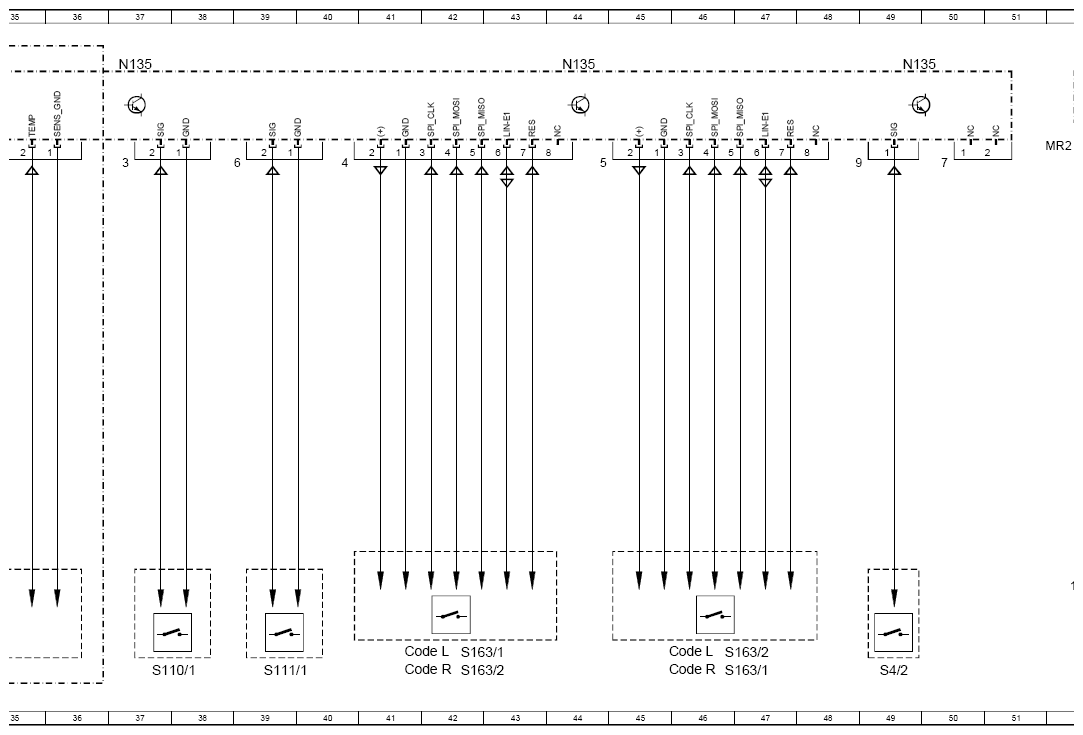

| S110/1 | Steering wheel downshift button | 37L |
| S111/1 | Steering wheel upshift button | 39L |
| S163/1 | Instrument cluster multifunction steering wheel button group | 46L |
| S163/1 | Instrument cluster multifunction steering wheel button group | 42L |
| S163/2 | Head unit multifunction steering wheel button group | 42L |
| S163/2 | Head unit multifunction steering wheel button group | 46L |
| S163/3 | Lower multifunction steering wheel button group 1 | 29L |
| S163/4 | Lower multifunction steering wheel button group 2 | 31L |
| S4/2 | Horns contact plate | 49L |
| W12 | Ground point (center console) | 9L |
| W34 | Left footwell ground point | 7E |
| W34/3 | Right footwell ground point | 7F |
| W9 | Left front ground point with lamp unit | 53H |
| X138/1 | Front center console electrical connector | 9H |
| Z50/3z1 | Circuit 31 connector sleeve | 9E |
