Remove/Install Left Rear Knock Sensor - AR15.12-P-2187XGC
Engine 177 in model 463
as of model year 2019
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

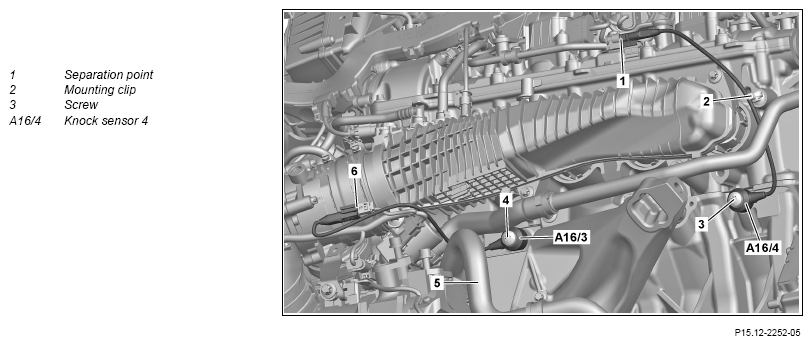

| 1 | Remove the expansion reservoir for the low-temperature circuit upward out of the elastomer bearings and place it to one side with the coolant lines still connected. | AR09.41-P-0001XGC | |
| 2 | Release and disconnect the electrical connection for the knock sensor 4 (A16/4) at the separating point (1). | ||
| 3 | Remove the retaining clip (2) from the cylinder head. | ||
| 4 | Remove rear bottom engine compartment lining. | AR61.20-P-1105XG | |
| 5 | Remove screw (3) and remove knock sensor 4 (A16/4) downward. | ||
Bolt, knock sensor to crankcase |
*BA15.10-P-1001-02G | ||
| 6 | Install in the reverse order. | ||
| 7 | Read out and delete fault memory. | ||
| AD00.00-P-2000-04B | |||
| Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check the engine for proper function. |
KNOCK SENSORS
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.10-P-1001-02G | Bolt, knock sensor to crankcase | Nm | 20 |
