Remove/Install Starter - AR15.30-P-7100XGA
Engine 176 in model 463
as of model year 2019
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Disconnect battery ground line | AR54.10-P-0003XG | |
| 2 | Remove engine compartment paneling | AR61.20-P-1105XG | |
| 3 | Remove low-temperature circuit switchover valve mounting support | AR09.41-P-1220-01XGA | |
Bolt, mounting rail in lower engine compartment lining (front) to frame |
*BA61.20-P-1002-01A | ||

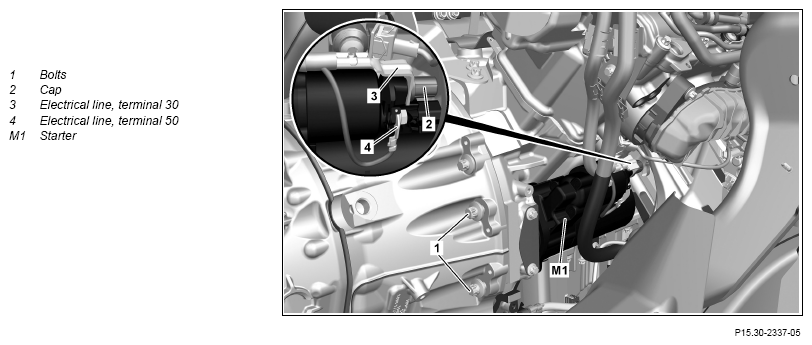

| 4 | Remove cover (2) of the electric line for circuit 30 (3) | ||
| 5 | Unscrew nut of the electric line for circuit 30 (3) | Nut, connection for terminal designation 30 |
*BA15.30-P-1004-01T |
| 6 | Unscrew nut of the electric line for circuit 50 (4) | *BA15.30-P-1003-01T | |
| 7 | Disconnect electric line for circuit 30 (3) from starter (M1) | ||
| 8 | Disconnect electric line for circuit 50 (4) from starter (M1) | ||
| 9 | Remove bolt (1) | Bolt, starter to crankcase and transmission |
*BA15.30-P-1001-01T |
| 10 | Remove starter (M1) downward | ||
| 11 | Check pinion of the starter (M1) for wear and damage | If a problem arises ↓ Replace starter (M1). |
|
| 12 | Turn engine at center bolt of the crankshaft in the direction of engine rotation and check starter ring gear on flywheel for wear and damage | In the event of damage to the pinion of the starter (M1). | |
| Fig 2 | |||
| If a problem arises ↓ Replace drive plate. |
|||
| AR03.30-P-8003XGA | |||
| 13 | Install in the reverse order | ||
| Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform engine test run and check starter (M1 for proper operation |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | ||
| 14 | AS00.00-Z-0005-01A |
STARTER
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA15.30-P-1001-01T | Bolt, starter to crankcase and transmission | Nm | 40 |
STARTER
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA15.30-P-1003-01T | Nut, connection for terminal designation 50 | Nm | 9 |
STARTER
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA15.30-P-1004-01T | Nut, connection for terminal designation 30 | Nm | 16 |
LOWER ENGINE COMPARTMENT PANELING
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA61.20-P-1002-01A | Bolt, mounting rail in lower engine compartment lining (front) to frame | M8 | Nm | 20 |
