Power Flow In 5th Gear, Function - GF27.10-P-3015AHG
TRANSMISSION 722.9 in MODEL 463 as of model year 2013
Function requirements for power flow in 5th gear, general
- Circuit 87 ON
- Circuit 61 (engine running)
Power flow in 5th gear, general
The following multidisk clutches are engaged:
- Multidisk clutch K1 (46)
- Multidisk clutch K2 (47)
- Multidisk clutch K3 (48)

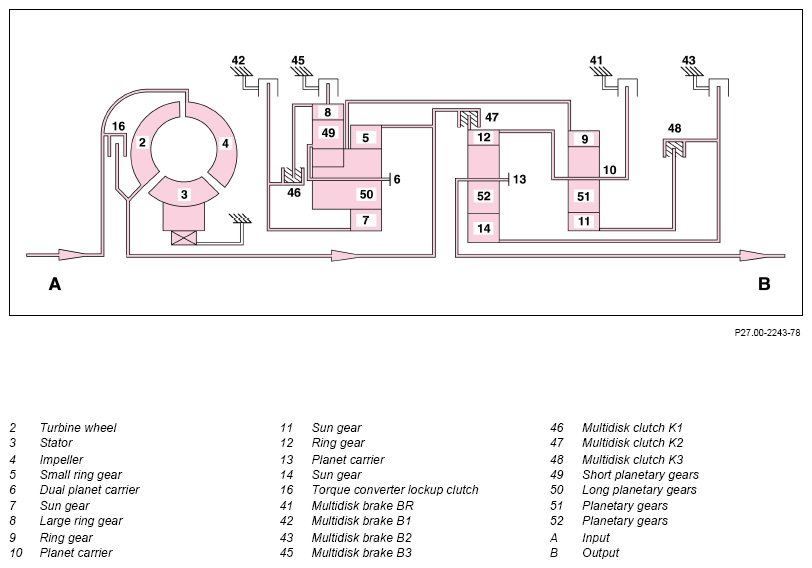

In 5th gear, power flows from the transmission input shaft through the blocked Ravigneaux gear set and blocked front single planetary gear set to the transmission output shaft. This rotates at the transmission input speed in the direction of rotation of the engine.
