Ionization, Basic Function - GF83.80-P-9901A
Model all (CAR)
with code P21 (Air quality package)
Overview
This document contains information on:
- General
- Location
- Function requirements
- Functions
General
Air ionization makes it possible to refresh and clean the air in the vehicle interior. Interior air ionization is odorless, as such vehicle occupants cannot directly perceive it. Ionizers are controlled by control of the climate control.
Location

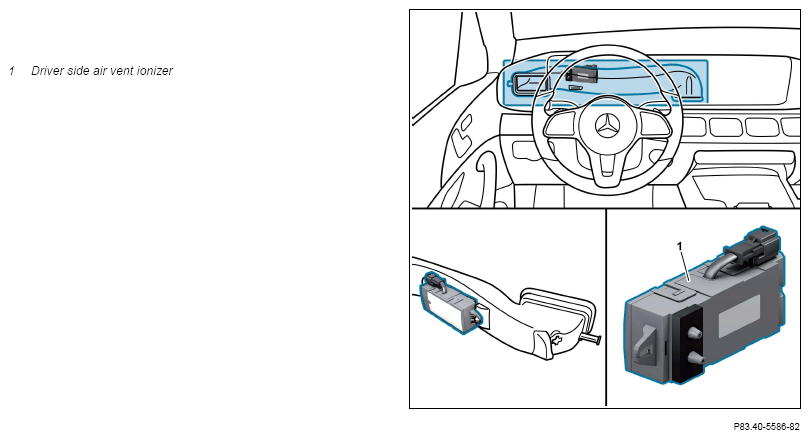

The ionizer (1) is located on the air duct leading to the driver's side air vent.
Function requirements
- Climate control switched on
- Ionization active
- Blower switched on
Function
The ionizer (1) binds dust. This effect is based on the fact that charged ions attach to dust particles in the air. As a result of their electrostatic interaction, they encourage integration with other particles to form a larger cluster. The ionizer (1) then filters this cluster more easily than individual particles.
| Function schematics | |||
| Function schematic for actuating ionization | Model 167 with code P21 (Air quality package) | PE83.80-P-2502-97A | |
| Model 223 with code P21 (Air quality package) | PE83.80-P-2502-97B | ||
| Model 293 with code P21 (Air quality package) | PE83.80-P-2502-97C | ||
| Model 213, 238, 257, 290 as of model year 2021 with code P21 (Air quality package) | PE83.80-P-2502-97D | ||
| Model 206, 254 with code P21 (Air quality package) | PE83.80-P-2502-97E | ||
| Model 295, 296, 297 with code P21 (Air quality package) | PE83.80-P-2502-97G | ||
| Further basic function | |||
| Climate control, basic function | GF83.00-P-9901A |
