Remove/Install Oxygen Sensor Upstream Of Catalytic Converter - AR07.04-P-0086MFC

Engine 260 in model 118, 177, 247

MODIFICATION NOTES

08.11.2019

Document completely revised.

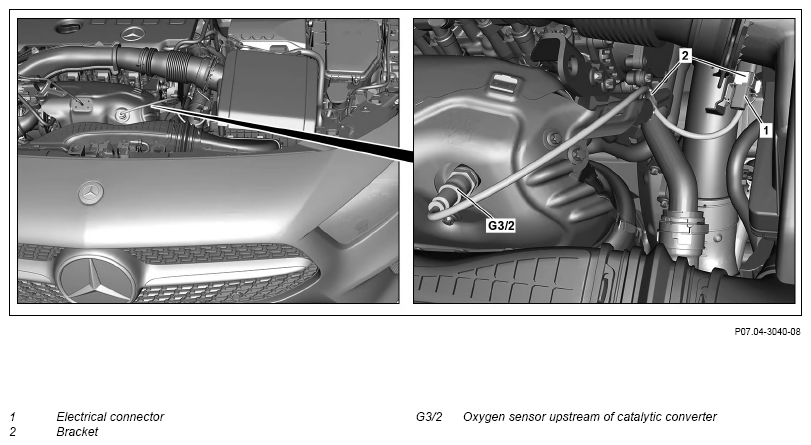

Fig 1: Oxygen Sensor Upstream Of Catalytic Converter Components Location - Engine 260 In Model 247 (Shown Without Code M016)

Courtesy of MERCEDES-BENZ USA

Shown on engine without code M016 (performance-enhanced engine)

	Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Topical note	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Unclip electrical connector (1) and electric line from the brackets (2).
2	Release and disconnect electrical connector (1) of the lambda sensor upstream of the catalytic converter (G3/2).
3	Remove oxygen sensor upstream of catalytic converter (G3/2).	Coat thread of the lambda sensor upstream of the catalytic converter (G3/2) with hot lubricating paste.
		Oxygen sensor upstream of catalytic converter	*BA14.00-P-1005-01A
		Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
		Socket	Fig 2
4	Seal threaded hole in catalytic converter with suitable stop plug.	Record plug	Fig 4
5	Cover sensor tip of lambda sensor upstream of catalytic converter (G3/2) with protective cover.	When the oxygen sensor upstream of catalytic converter (G3/2) is reused.
		Set of protective caps	Fig 3
6	Install in the reverse order.
7	Read out and delete fault memory.
			AD00.00-P-2000-06MFA
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
8	Perform an engine test run; check engine for proper operation and check exhaust system for leak tightness.
