Service Campaign 2022030010 - Perform SCN Coding In Esp Control Unit (P-SC-2022030010)

SERVICE CAMPAIGN 2022030010 - PERFORM SCN CODING IN ESP CONTROL UNIT

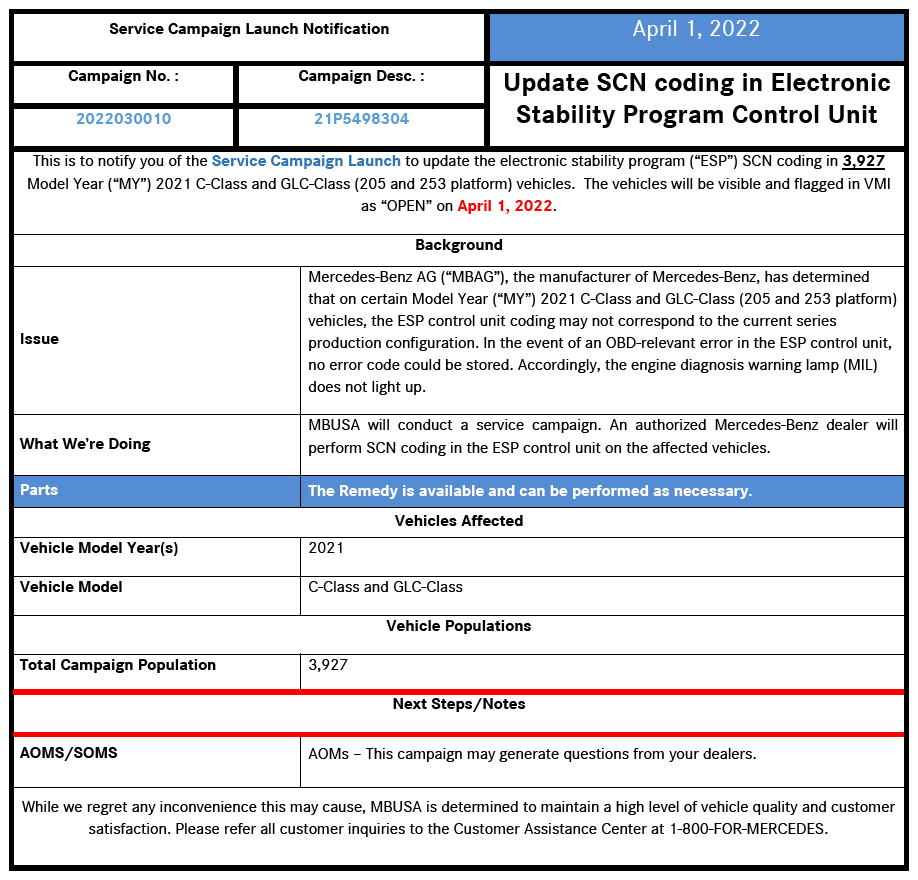

SERVICE CAMPAIGN BULLETIN

SERVICE INFORMATION

IMPORTANT NEW SERVICE CAMPAIGN LAUNCH INFORMATION

Please note that all customer inquiries should be directed to the Customer Assistance Center at 1-800-FOR-MERCEDES.

Sincerely,

Gregory Gunther

Department Manager, Vehicle Compliance & Analysis

April 2022

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT

Model C-Class and GLC-Class (205 and 253 platform)

Model Year 2021

Mercedes-Benz AG ("MBAG"), the manufacturer of Mercedes-Benz, has determined that on certain Model Year ("MY") 2021 C-Class and GLC-Class (205 and 253 platform) vehicles, the ESP control unit coding may not correspond to the current series production configuration. In the event of an OBD-relevant error in the ESP control unit, no error code could be stored. Accordingly, the engine diagnosis warning lamp (MIL) does not light up. MBUSA will conduct a service campaign. An authorized Mercedes-Benz dealer will perform a SCN coding.

Prior to performing this Campaign:

• VMI must always be checked before performing campaigns to verify that the campaign is required on a specific vehicle. Always check for any other open campaigns, and perform accordingly.
• Please review the entire Campaign bulletin and follow the repair procedure exactly as described.

Approximately 3,927 vehicles are affected.

Order No. P-SC-2022030010

This bulletin has been created and maintained in accordance with MBUSA-SLP S423QH001, Document and Data

Control, and MBUSA-SLP S424HH001, Control of Quality Record

• Ensure use of XENTRY Diagnosis version 12/2021  or higher.
• Before starting the work procedure, install the current version of all add-ons  in XENTRY Diagnosis  .
• Make sure to follow the operation steps exactly as described in XENTRY Diagnosis.
• Use a battery charger to ensure sufficient power supply of the vehicle on-board electrical system battery  (greater than 12.5 V).
• If XENTRY Diagnosis is already connected to the vehicle, start with operation step   2  .

  If two or more software updates or SCN codings are performed during one workshop visit, operation items 02-4762 and 02-5058 may be invoiced only once for each workshop order  .

WORK PROCEDURE

1. Connect XENTRY Diagnosis.
2. Perform SCN coding in Electronic stability program (ESP) control unit.

   To do this, select menu item "Quick test view - N30/4-Electronic stability program (ESP) - Adaptations - Control unit update - Updating of SCN coding".

   Then follow the user guidance in XENTRY Diagnosis.

3. Disconnect XENTRY Diagnosis.

WARRANTY INFORMATION

Damage Code	Operation Number	Description	Labor Time (hrs.)
54 983 04	02-9446	Perform SCN coding in Electronic Stability Program (ESP) control unit (with XENTRY Diagnosis connected)	0.1
	02-4762(1)	Connect/disconnect diagnostic system (XENTRY Diagnosis)	0.1
	02-5058(1)	Connect/disconnect starter battery charger (with XENTRY Diagnosis connected)	0.1
(1) Operation item may be invoiced only once for each workshop order!
