Remove/Install Trunk Lid/Liftgate Control Button - AR72.20-P-3603ME
Model 167
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||

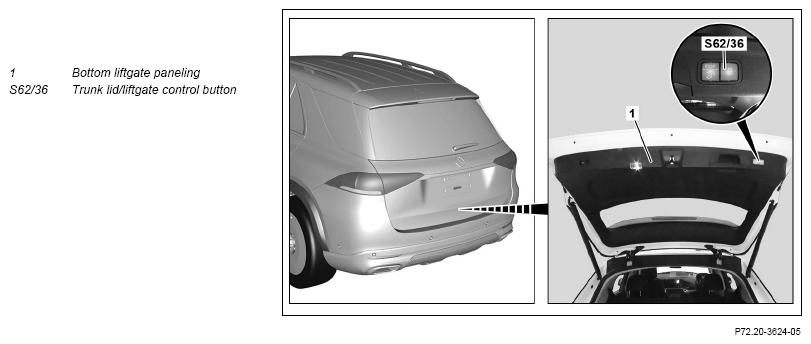

| 1 | Remove bottom liftgate trim (1). | AR72.20-P-6617ME | |
| 2 | Unclip trunk lid/liftgate control button (S62/36) and remove. | ||
| 3 | Install in the reverse order. |
