Remove/Install Side Window - AR67.30-P-0005ME

Model 167.1

Courtesy of MERCEDES-BENZ USA

Shown on the right side of the vehicle with code 882 (interior monitoring)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on removal/installation of windows		AH67.10-P-1000-02RT
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove
1	Prepare adhesive cartridge.		AR67.00-P-0001-02ME
	000 588 00 72 00 Sealing and corrosion protection gun		WS97.00-P-0001B
		Adapter	Fig 1
2	Open side window in driver door.	Leave the side window of the driver's door open during the curing time of the adhesive material. This prevents the side window (1) from being pressed outwards by the air pressure when a door is closed.

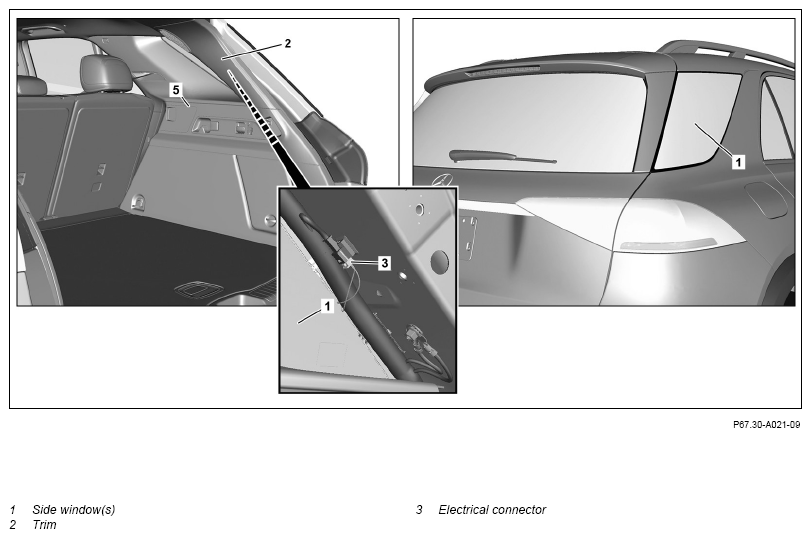

3	Remove trim (2) from the D-pillar.		AR68.30-P-4497ME
4	Release and disconnect electrical connector (3) from the side window (1).	Model 167.1 up to 6/27/19 with code 882 (Interior motion sensor)

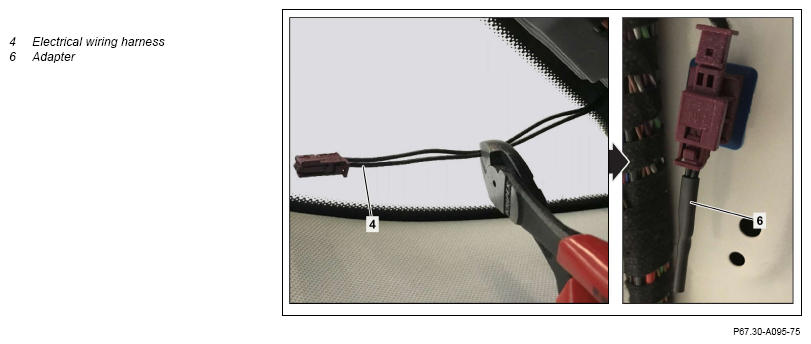

5	Bridge electrical wiring harness (4) of electrical connector (3).	Model 167.1 up to 6/27/19 with code 882 (Interior motion sensor)
			AR00.19-P-0100A
6	Unclip electrical wiring harness from the side window (1) and fasten outside of the working area.	Do not crush or kink or subject electric lines to tension. This will result in damage to the lines which may impair their functional capability.
7	Cover vehicle interior in the repair area.	Use suitable cover material to prevent the vehicle interior from being soiled by adhesive residues, dust, and fresh adhesive.
	Risk of injury  caused by slipping when inserting blade in the multicutter and byglass splinters when cutting out bonded windows	Always interrupt air supply or power supply before inserting or removing blade. Wear protective gloves and safety glasses	AS67.00-Z-0001-01A
8	Cut out side window (1) with cutting blade.		AR67.30-P-0005-01ME
		Adhesive fabric tape	*BR00.45-Z-1062-02A
	Install
9	Prepare body flange for installation of the side window (1).		AR67.30-P-0005-04ME
Notice	General notes about painting the body flange in the glazing area		AH98.00-P-9408-06A
		The bonding surface should be free of dust, oil, grease, wax and other adhesive components or dirt residues. Adhesion problems will otherwise arise during window installation.
10	Prepare side window (1) for installation.	The bonding surface should be free of dust, oil, grease, wax and other adhesive components or dirt residues. Adhesion problems will otherwise arise during window installation.	AR67.30-P-0005-02ME
11	Apply adhesive material.		AR67.30-P-0005-05ME
Notice	Notes on handling adhesive		AH67.00-P-1000-01A
		Position side window (1) on the body flange within 10 min of the adhesive material being applied. Otherwise, the adhesion of the adhesive material will be impaired.
12	Install side window (1).		AR67.30-P-0005-03ME
		The curing time of the adhesive material is approx 2 h, measured from the time that the side window (1) is installed.
		Adhesive fabric tape	*BR00.45-Z-1062-02A
13	Remove protective covers in the repair area.
14	Fasten electrical wiring harness in the area of the side window (1).	Ensure that electrical wiring harness is routed properly. Otherwise, damage to the electrical wiring harness will occur.
15	Connect and lock electrical connector (3) or adapter (6).	Model 167.1 up to 6/27/19 with code 882 (Interior motion sensor)
16	Install trim (2) on the D-pillar.		AR68.30-P-4497ME
17	Close side window of the driver's door.	If the adhesive material is cured.
18	Clean new side window (1), adjacent painted parts, and vehicle interior.	If the adhesive material is cured.

Fig 1: Identifying Adapter (000 589 86 63 00)

Courtesy of MERCEDES-BENZ USA
