Remove/Install Differential Fuel Pressure Sensor - AR07.04-P-0025MNP

Engine 177 In Model 167

with code 961 (Exhaust system with OPF, generation 2.0)

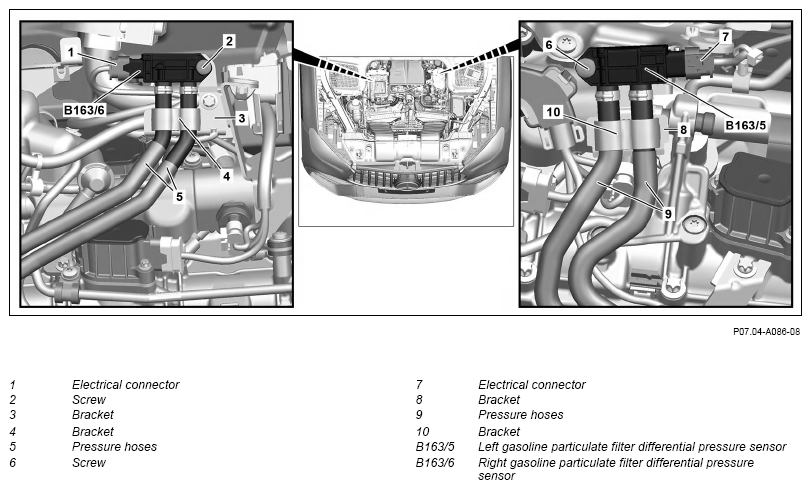

Fig 1: Differential Fuel Pressure Sensor Components Location - Engine 177 In Model 167 With Code 961
G15031629Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Topical note  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Topical note  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
  Right gasoline particulate filter differential pressure sensor (B163/6)
2 Remove ME-SFI control unit (N3/10) and place to one side with the connected coolant lines. INSTALLATION IMPORTANT Only install upper engine cover after the leak test. AR07.08-P-7013MNO
3 Release electrical connector (1) and disconnect.
4 Unscrew screw (2) on right gasoline particulate filter differential pressure sensor (B163/6). TORQUE SPECIFICATION Bolt, differential pressure sensor to bracket *BA07.04-P-1007-01Q
5 Unclip holder (4).
6 Remove right gasoline particulate filter differential pressure sensor (B163/6) from holder (3).
7 Remove click clamps at pressure hoses (5) and remove pressure hoses (5) from right gasoline particulate filter differential pressure sensor (B163/6). IMPORTANT Observe markings on pressure hoses (5) and replace click clamps.
INSTALLATION IMPORTANT Wet outside of fittings of right gasoline particulate filter differential pressure sensor (B163/6) with lubricant.
INSTALLATION IMPORTANT Install pressure hoses (5) on right gasoline particulate filter differential pressure sensor (B163/6) free of tension.
Lubricant, rubber assembly 1 L
*BR00.45-Z-1010-06A
    SPECIAL TOOL Pliers for click clamps Fig 3
8 Seal openings of pressure hoses (5) with suitable stop plugs. SPECIAL TOOL Record plug Fig 2
9 Check pressure hoses (5) for damage. If there is a problem,

Replace pressure hoses (5).

10 Install in the reverse order.
  Left gasoline particulate filter differential pressure sensor (B163/5)
11 Remove expansion reservoir of low-temperature circuit and place to one side with coolant lines connected. INSTALLATION IMPORTANT Only install upper engine cover after the leak test. AR09.41-P-0001MNP
12 Release and disconnect electrical connector (7).
13 Unscrew screw (6) on left gasoline particulate filter differential pressure sensor (B163/5). TORQUE SPECIFICATION Bolt, differential pressure sensor to bracket *BA07.04-P-1007-01Q
14 Unclip holder (10).
15 Remove left gasoline particulate filter differential pressure sensor (B163/5) from holder (8).
16 Remove click clamps of pressure hoses (9) and remove pressure hoses (9) from left gasoline particulate filter differential pressure sensor (B163/5). IMPORTANT Observe markings on pressure hoses (9) and replace click clamps.
INSTALLATION IMPORTANT Wet outside of fittings of left gasoline particulate filter differential pressure sensor (B163/5) with lubricant.
INSTALLATION IMPORTANT Install pressure hoses (9) on left gasoline particulate filter differential pressure sensor (B163/5) free of tension.
Lubricant, rubber assembly 1 L
*BR00.45-Z-1010-06A
    SPECIAL TOOL Pliers for click clamps Fig 3
17 Seal openings of pressure hoses (9) with suitable stop plugs. SPECIAL TOOL Record plug Fig 2
18 Check pressure hoses (9) for damage. If there is a problem,

Replace pressure hoses (9).

19 Install in the reverse order.
INSPECT Check
20 Connect vehicle diagnosis system, read out fault memory and clear if necessary.
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06ME
WARNING Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. AS49.00-Z-0001-01A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
21 Perform engine test run. While doing so, check engine for proper operation and leak tightness.
SENSORS

Number Designation Engine 177
BA07.04-P-1007-01Q Bolt, differential pressure sensor to bracket Nm 8
Fig 2: Identifying Record Plug (129 589 00 91 00)
G11065549Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Pliers For Click Clamps (171 589 00 37 00)
G11133214Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1010-06A Lubricant, rubber assembly 1 L A 000 989 03 67
