Remove/Install Fuel Tank - AR47.10-P-4100MSC

Model 167 With Engine 176

Model 167 With Engine 177

Model 167 With Engine 256.9

Model 167 With Engine 264

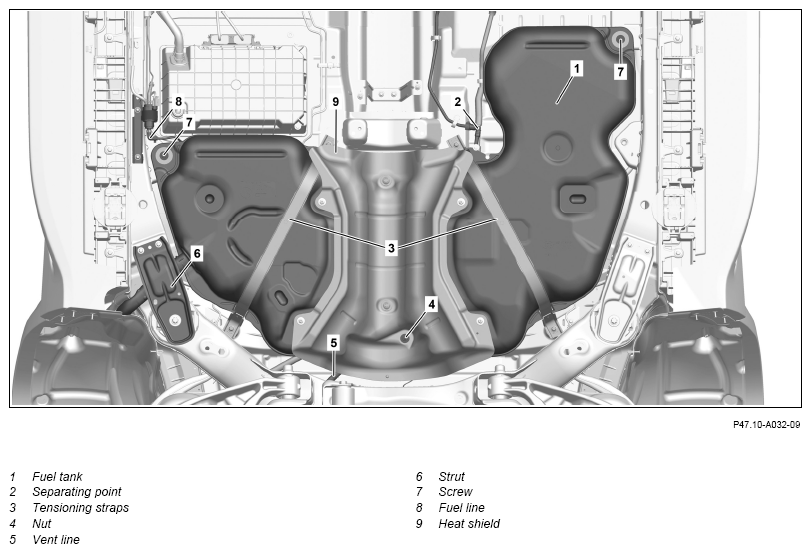

Fig 1: Fuel Tank Components Location - Model 167 With Engine 176; 177; 256.9; 264

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Empty the fuel tank (1).	If fuel pump is intact Model 167 with engine 264	AR47.10-P-4001MRK
		If fuel pump is intact Model 167 with engine 176	AR47.10-P-4001MSC
		Model 167 with engine 177 Model 167 with engine 256.9
		If fuel pump is defective Model 167 with engine 176	AR47.10-P-4000MSC
		Model 167 with engine 177 Model 167 with engine 256.9 Model 167 with engine 264
2	Remove left and right underfloor paneling.		AR61.30-P-1001ME
3	Remove propeller shaft.		AR41.10-P-0050MSC
4	Remove heat shield (9).
5	Remove the right rear fender liner.		AR88.10-P-1302ME
6	Remove tank filler recess.		AR88.60-P-2001ME

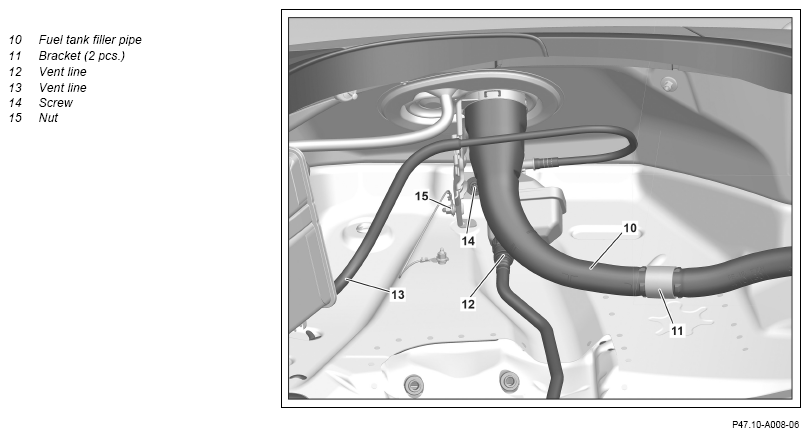

7	Unscrew screw (14).	Screw, filler neck bracket to frame floor assembly.	*BA47.10-P-1006-01J
8	Remove bleed line (12) from the fuel tank filler pipe (10) and seal with suitable stop plugs.	Record plug	Fig 2
9	Remove brackets (11) from the body.	Screw/nut, fuel tank filler pipe clamp to frame floor assembly	*BA47.10-P-1007-01J
10	Remove nut (15).	Nut, ground connection to filler neck bracket	*BA47.10-P-1005-01J
11	Remove bleed line (13) from the activated charcoal canister.		AR47.30-P-8212MSC
12	Clean separating point (2).	Assembly cleaner	*BR00.45-Z-1028-04A
13	Clean fuel line (8) in the area of the metering pump.	Assembly cleaner	*BR00.45-Z-1028-04A
14	Remove bleed line (5) from the separating point and seal with suitable stop plugs.	Record plug	Fig 2
15	Release and disconnect fuel lines from the separating point (2), capture escaping fuel in a suitable container, and seal with suitable stop plugs.	Record plug	Fig 2
16	Remove fuel line (8) from the metering pump, capture escaping fuel in a suitable container, and seal with suitable stop plugs.	Replace clamp.
		Pliers for click clamps	Fig 3
		Record plug	Fig 2
17	Remove strut (6).	Replace screws.
		Self-locking bolt, rear axle carrier at front and rear to frame floor assembly	*BA35.10-P-1001-01K
		Screw, rear axle carrier support to frame floor assembly	*BA35.10-P-1002-01K
18	Support fuel tank (1).
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
19	Remove screws and remove tensioning straps (3).	Bolt, tensioning strap for fuel tank to underfloor	*BA47.10-P-1003-01J
20	Remove screws (7).	Bolt, fuel tank to undercarriage	*BA47.10-P-1002-01J
21	Remove nut (4).	Self-locking nut, fuel tank to undercarriage	*BA47.10-P-1001-01J
22	Slowly lower fuel tank (1) somewhat.
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
		Aid of helper required.
23	Release and disconnect electrical connectors of the fuel pump.		AR47.20-P-5710MSC
24	Remove electrical wiring harness from the fuel tank (1).
25	Slowly lower fuel tank (1) further and remove.
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount	Aid of helper required.	WS01.00-P-0092B
26	Remove fuel pump.	When replacing the fuel tank (1).
			AR47.20-P-5710MSC
27	Install in the reverse order.
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
28	Perform engine test run and check fuel system for leaks.

REAR AXLE CARRIER

Number	Designation				Model 167
BA35.10-P-1001-01K	Self-locking bolt, rear axle carrier at front and rear to frame floor assembly	M14X1.5	Stage 1	Nm	100
			Stage 2	∠°	-180
			Stage 3	Nm	100
			Stage 4	∠°	90

REAR AXLE CARRIER

Number	Designation			Model 167
BA35.10-P-1002-01K	Screw, rear axle carrier support to frame floor assembly	M8	Nm	24

FUEL TANK

Number	Designation		Model 167
BA47.10-P-1001-01J	Self-locking nut, fuel tank to undercarriage	Nm	24

FUEL TANK

Number	Designation		Model 167
BA47.10-P-1002-01J	Bolt, fuel tank to undercarriage	Nm	24

FUEL TANK

Number	Designation		Model 167
BA47.10-P-1003-01J	Bolt, tensioning strap for fuel tank to underfloor	Nm	32

FUEL TANK

Number	Designation		Model 167
BA47.10-P-1005-01J	Nut, ground connection to filler neck bracket	Nm	8

FUEL TANK

Number	Designation		Model 167
BA47.10-P-1006-01J	Screw, filler neck bracket to frame floor assembly	Nm	24

FUEL TANK

Number	Designation		Model 167
BA47.10-P-1007-01J	Screw/nut, fuel tank filler pipe clamp to frame floor assembly	Nm	8

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Pliers For Click Clamps (171 589 00 37 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
