Keyless-Go Door Handle, Basic Function - GF80.61-P-2003A

Model All (CAR)

With Code 889 (KEYLESS-GO)

Overview

This document contains information on:

General
Function

General

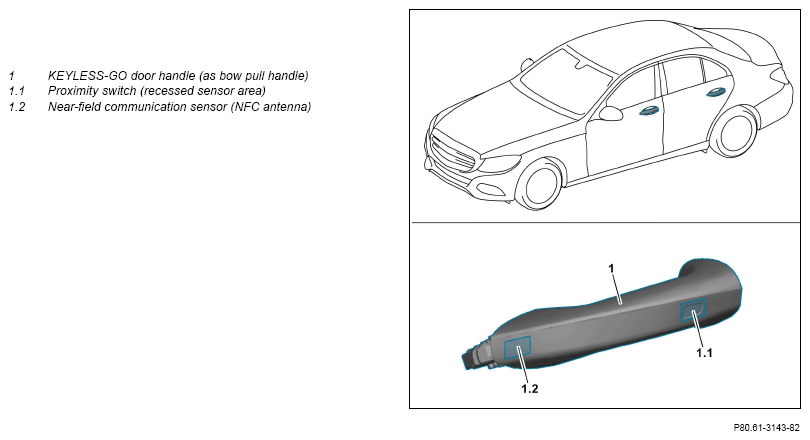

The respective KEYLESS-GO door handle (1) is located on the outside of the corresponding door.

Example illustration

Fig 1: Keyless-Go Door Handle Components Location - Model All (Car) With Code 889

Courtesy of MERCEDES-BENZ USA

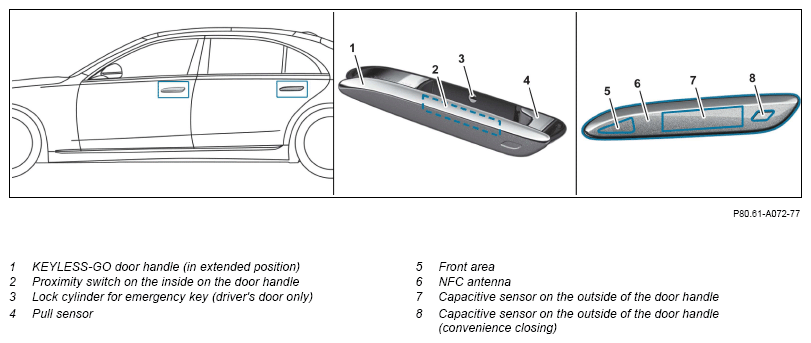

Depending on the model series, the outside door handle is flush with the door and extendable.

Courtesy of MERCEDES-BENZ USA

When not in use and while the vehicle is in motion, the outside door handle is retracted so that it is flush with the door. The outside door handle moves by means of an electric motor in a parallel extend movement into its usage position.

The outside door handles are extended in the following situations:

When the vehicle is unlocked.
When the vehicle key is detected.
When a door is opened.

The outside door handles are retracted in the following situations:

When the vehicle is locked.
When moving off.
Following a waiting time.

Function

The following components are integrated in the KEYLESS-GO door handle:

Proximity switch on the outside of the door handle (recessed sensor area)
Near-field communication sensor/NFC antenna (driver's door only)
Capacitive sensor on the inside of the door handle
Capacitive sensor on the outside of the door handle
Hall sensor
Outside door handle lighting (model dependent)

The integrated component parts of the KEYLESS-GO door handles have the following tasks:

The proximity switch detects when the KEYLESS-GO door handle is touched (comfort closing request while contact is maintained with the door handle).
The near-field communication sensor on the driver's door allows the door to be locked or unlocked with a cellular phone or the digital key sticker (vehicles with vehicle access and drive authorization via the cellular phone).
The capacitive sensor on the inside of the door handle detects that the KEYLESS-GO door handle has been grasped (unlock vehicle request).
The capacitive sensor on the outside of the door handle detects when someone touches the KEYLESS-GO door handle (request to unlock the vehicle or extend the outside door handle).
The Hall sensor detects when someone pulls on the KEYLESS-GO door handle (servo opening, emergency opening request (reversing during convenience closing), window prompter, interruption of Remote Parking Assist).
The outside door handle lighting (depending on the vehicle model) illuminates the area around the door handle when the surround lighting is activated.

The electronic ignition lock control unit or the KEYLESS-GO control unit reads in the sensor signals in a model-dependent manner. The model-dependent outside door handle lightings are actuated by the respective door control unit.

Component descriptions
KEYLESS GO door handle component description	Model 223 with code 889 (KEYLESS-GO)	GF80.61-P-4203A
	Model 243 with code 889 (KEYLESS-GO)	GF80.61-P-4203B
	Model 206 with code 889 (KEYLESS-GO)	GF80.61-P-4203C
	Model 297 with code 889 (KEYLESS-GO)	GF80.61-P-4203D
	Model 295 with code 889 (KEYLESS-GO)	GF80.61-P-4203E
	Model 232 with code 889 (KEYLESS-GO)	GF80.61-P-4203F
