Remove/Install Coolant Temperature Sensor - AR15.60-P-2712MNI

Engine 177 in model 290

MODIFICATION NOTES

25.10.2022 Clamp, boot to exhaust gas turbocharger/air filter Engine 177.8 BA01.20-P-1003-01J

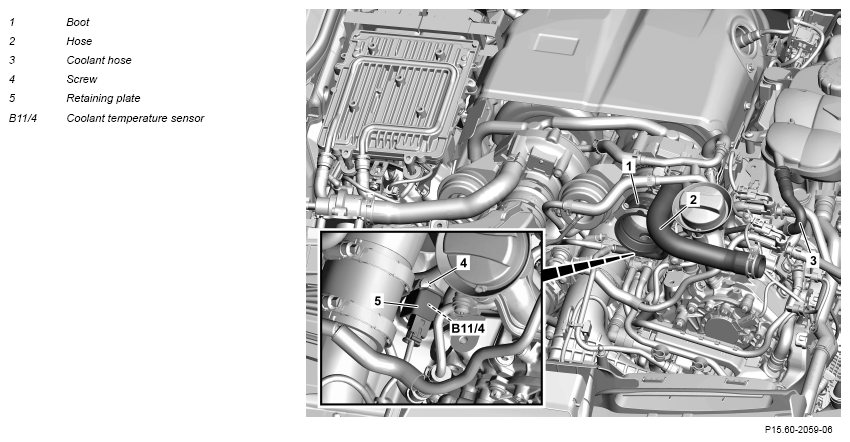

Fig 1: Coolant Temperature Sensor Components Location - Engine 177 In Model 290
G16559292Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Notice  Notes on coolant   AH20.00-P-2080-01KOA
REMOVINGINSTALLING Remove/install
1 Remove left air filter housing. INSTALLATION IMPORTANT : Do not install upper engine cover until after the leak test. AR09.10-P-1151MNI
2 Remove hose (2) from exhaust gas turbocharger. SPECIAL TOOL Hose clamp pliers Fig 3
3 Disconnect coolant hose (3). SPECIAL TOOL Clamp Fig 2
4 Remove coolant hose (3) from low-temperature circuit expansion reservoir and place to one side.   AR09.41-P-0001MNI
5 Remove boot (1) from left exhaust gas turbocharger and place to one side TORQUE SPECIFICATION Clamp, boot to exhaust gas turbocharger/air filter *BA01.20-P-1003-01J
6 Seal opening of the exhaust gas turbocharger with clean rags.
7 Drain off coolant. INSTALLATION IMPORTANT : Do not install center and front lower engine compartment lining until after leak test. AR20.00-P-1142FR
8 Release and disconnect electrical connector of coolant temperature sensor (B11/4).
9 Unscrew screw (4). TORQUE SPECIFICATION Bolt, temperature sensor bracket to crankcase *BA07.04-P-1002-01Q
10 Remove coolant temperature sensor (B11/4) with retaining plate (5) in upward direction. INSTALLATION IMPORTANT : Replace seal.
11 Remove retaining plate (5) from coolant temperature sensor (B11/4). When installing new coolant temperature sensor (B11/4).
12 Install in the reverse order.
13 Perform a ventilation routine on the ME-SFI [ME] control unit (N3/10).
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06FR
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
14 Carry out engine test run and check engine for proper operation and leak tightness.
15 Install the center and front lower engine compartment paneling.   AR61.20-P-1105FRX
16 Install upper engine cover.
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER

Number Designation Engine 177.8 Engine 177.9
BA01.20-P-1003-01J Clamp, boot to exhaust gas turbocharger/air filter Nm 2, 5 1, 5
SENSORS

Number Designation Engine 177
BA07.04-P-1002-01Q Bolt, temperature sensor bracket to crankcase Nm 9
Fig 2: Identifying Clamp (000 589 54 37 00)
G16557323Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Hose Clamp Pliers (003 589 03 37 00)
G16145168Courtesy of MERCEDES-BENZ USA
