Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MRT
Engine 256.9 in model 213, 238, 257, 290
up to model year 2021
Engine 256.9 in model 222

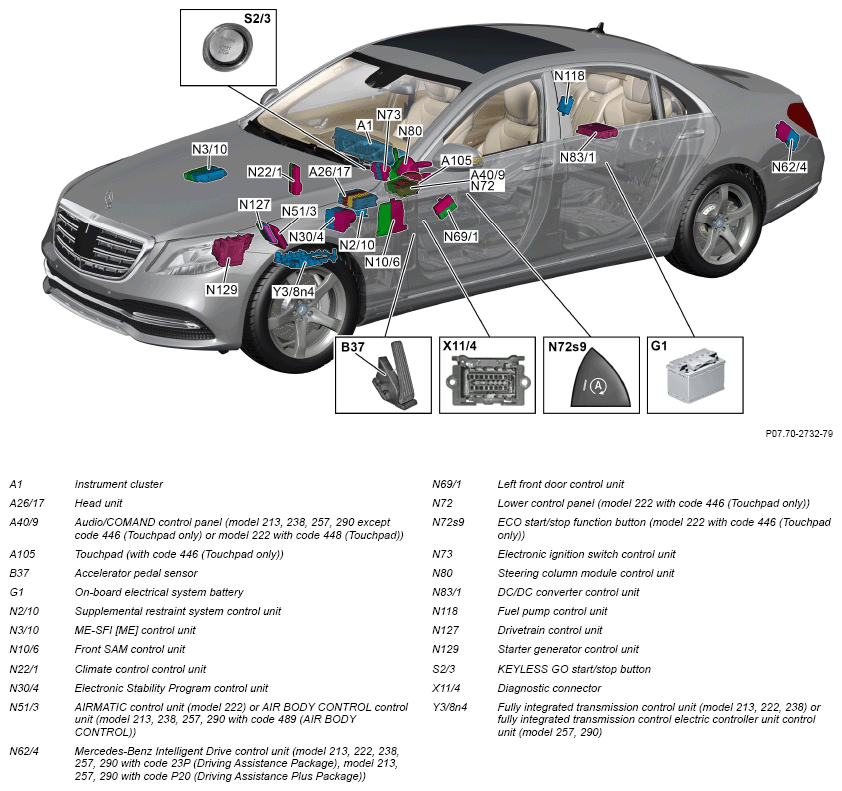

Shown model 222.0

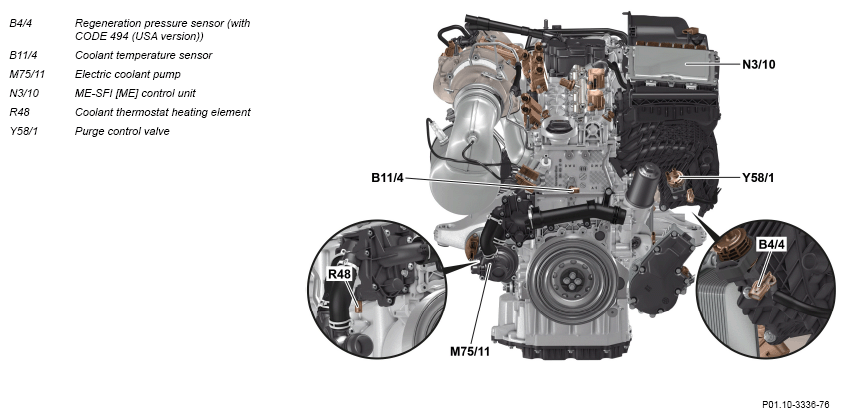

View from front, shown on model 222 except code M005 (4MATIC)

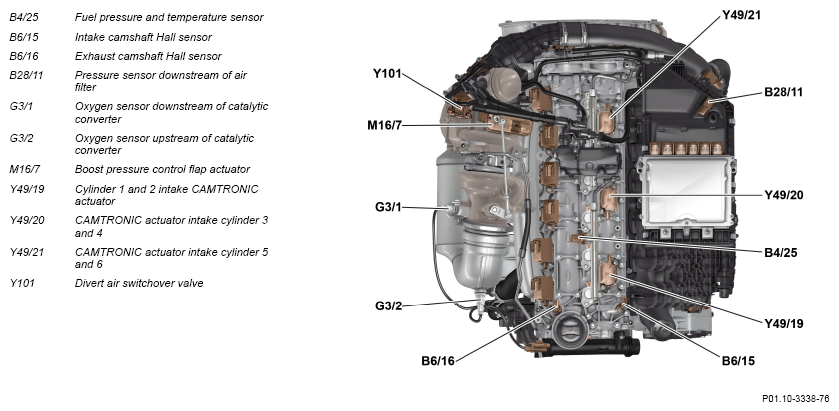

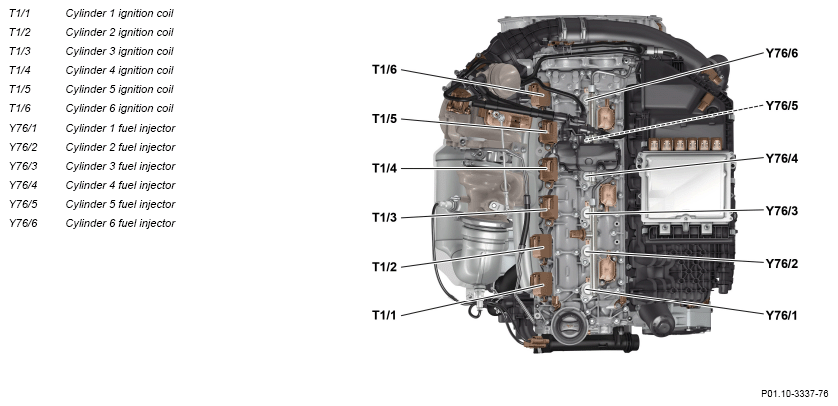

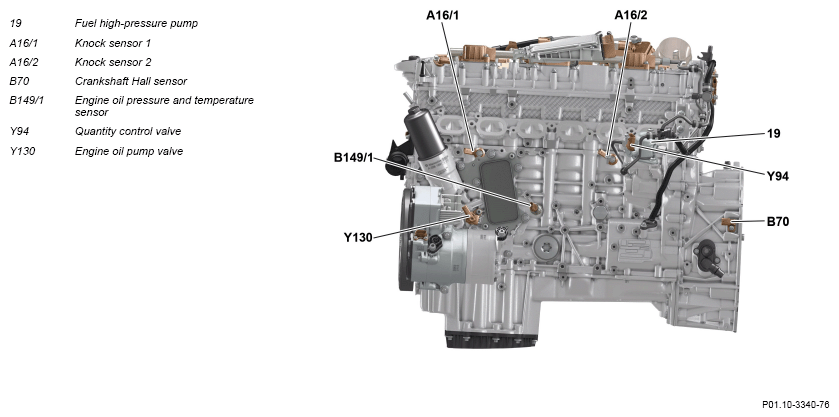

View from left, shown on model 222 except code M005 (4MATIC)

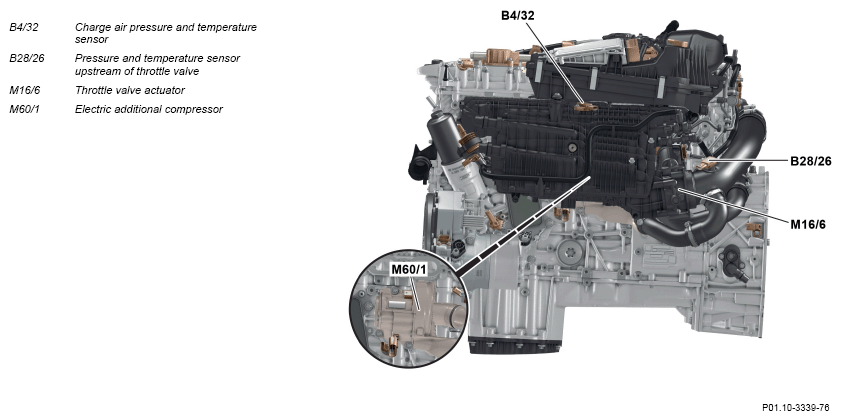

View from left, shown on model 222 except code M005 (4MATIC)
View from left, shown on model 222 except code M005 (4MATIC)
View from left, shown on model 222 except code M005 (4MATIC)

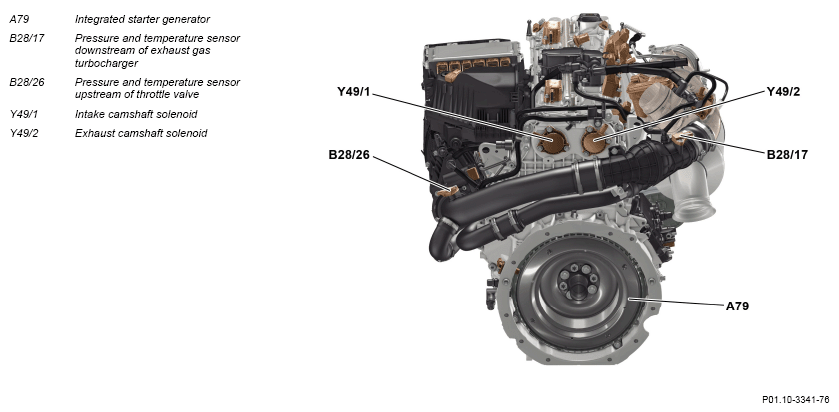

View from rear, shown on model 222 except code M005 (4MATIC)

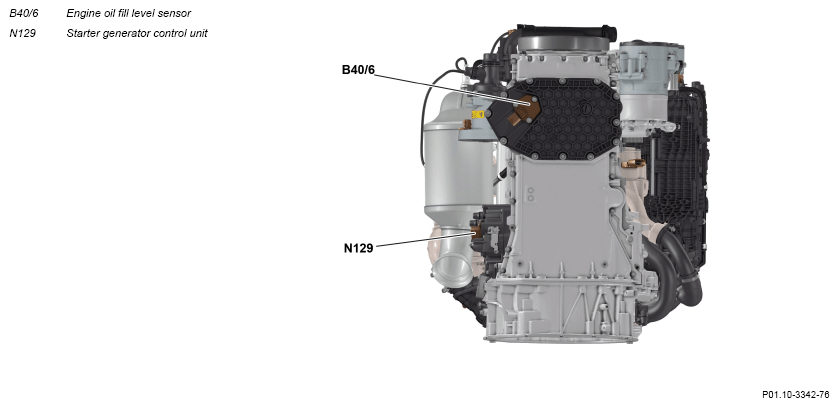

View of oil pan from underneath, shown on model 222 except code M005 (4MATIC)

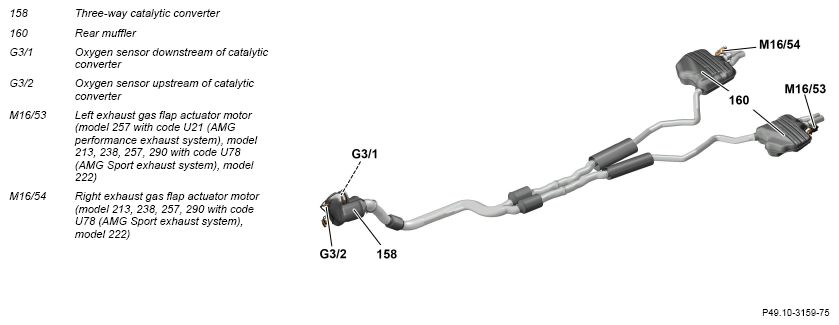

Exhaust system, shown on model 222

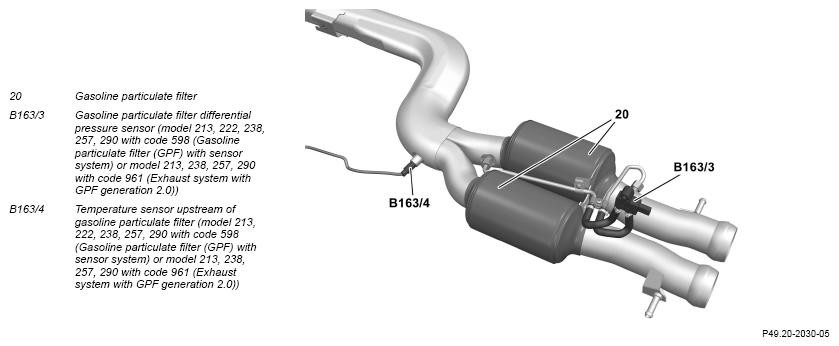

Shown on gasoline particulate filter (20) (model 238 with code 472 (Gasoline particulate filter) and model 213, 222, 238, 257, 290 with code 598 (Gasoline particulate filter (GPF) with sensor system) or model 213, 238, 257 290 with code 961 (Exhaust system with GPF generation 2.0))

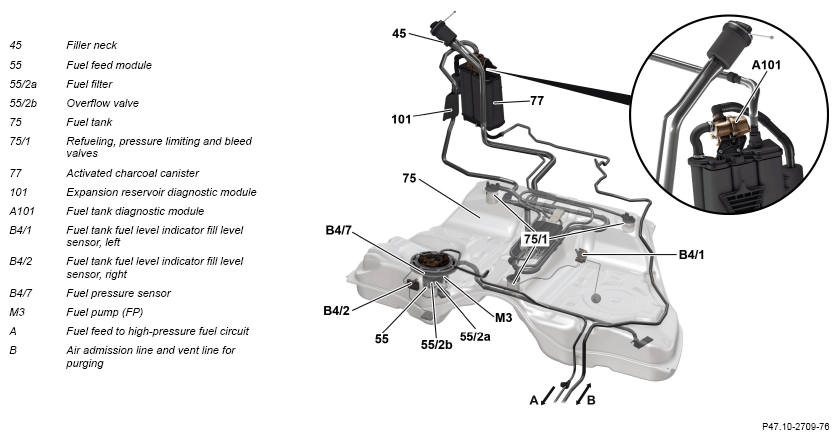

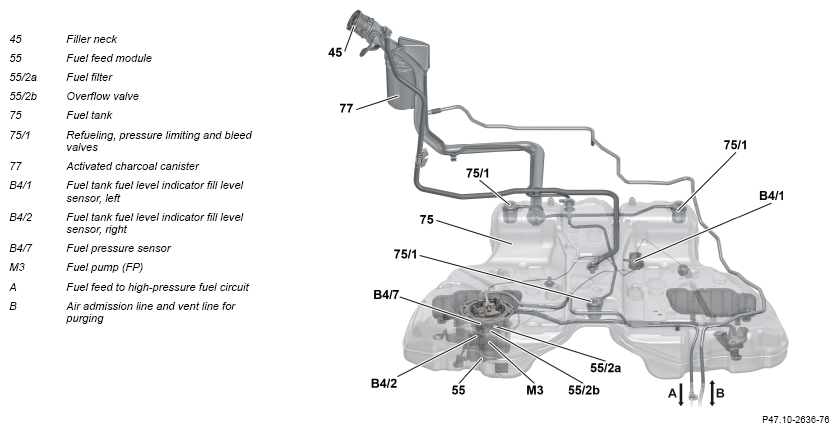

Phantom view of fuel tank (75), shown on model 222 except code 494 (USA version)
Phantom view of fuel tank (75), shown on model 222 (except 222.163) with code 494 (USA version)

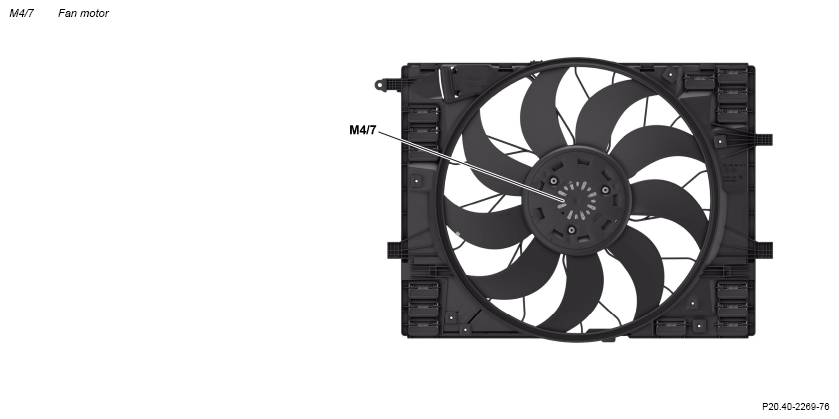

View of the radiator from the rear

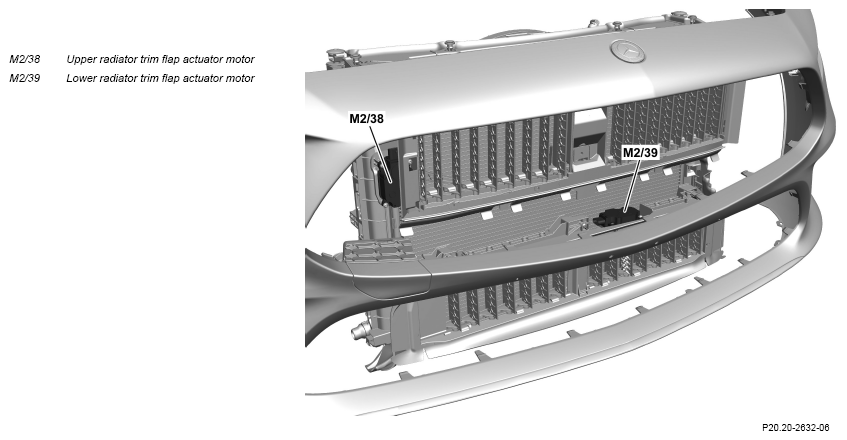

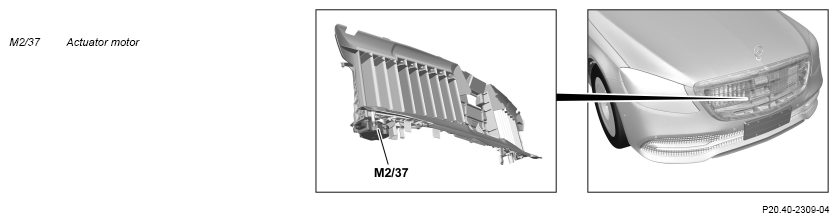

Radiator trim flaps (model 222 with code 2U1 (Radiator shutters]
Radiator trim flaps (model 213, 238, 257 with code 2U1 (Radiator shutters)), shown on model 257

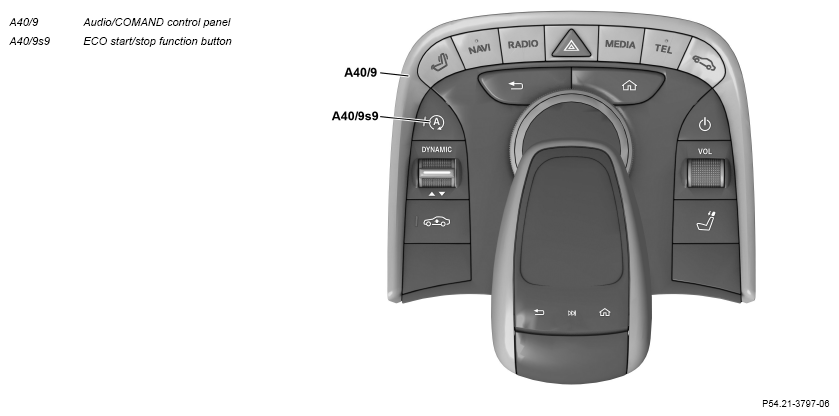

Shown on operating unit in center console (model 222 with code 448 (Touchpad))

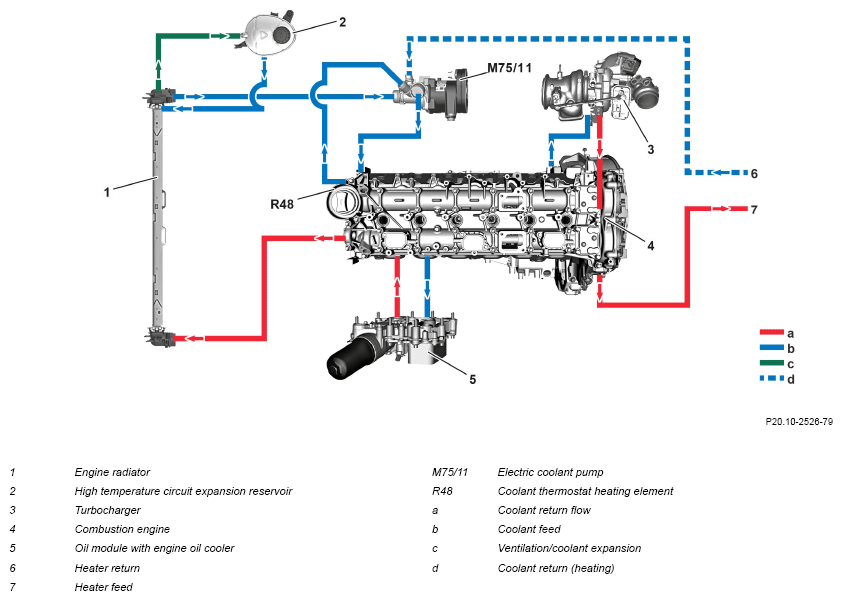

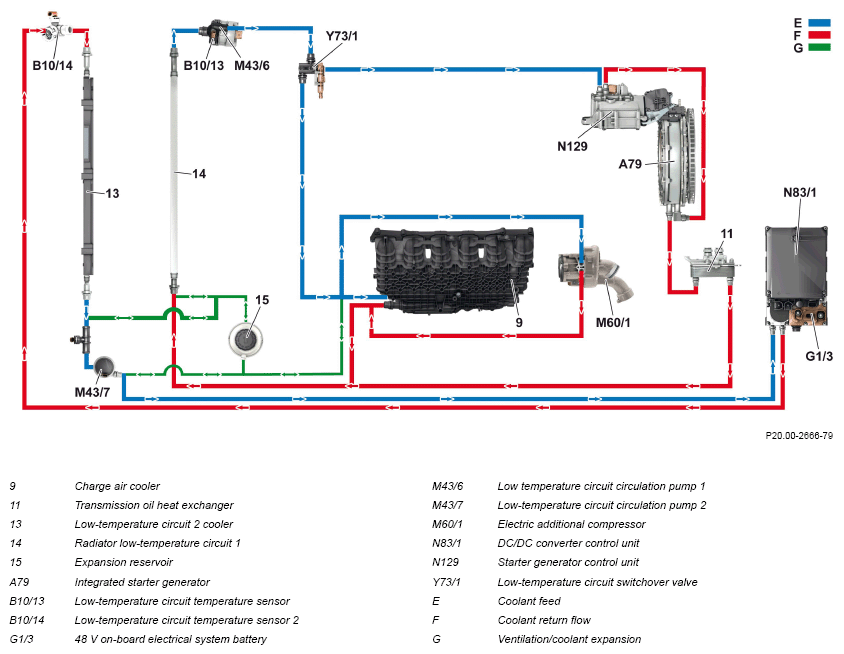

Shown on high temperature circuit
Shown on operating unit in center console (model 222 with code 448 (Touchpad))

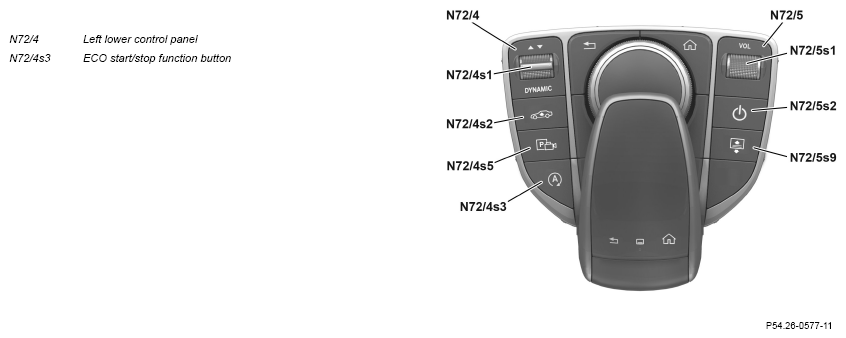

Left lower control panel (model 213, 238, 257, 290), shown with code 448 (Touchpad)
Shown is relay in left rear engine compartment
| Component description for instrument cluster | Model 213 with engine 256.9 up to model year 2021 | GF54.30-P-6000FG | |
| A1 | |||
| Model 222 with engine 256.9 as of model year 2018 | GF54.30-P-6000LFM | ||
| A1 | |||
| Model 238 with engine 256.9 up to model year 2021 | GF54.30-P-6000FH | ||
| A1 | |||
| Model 257, 290 with engine 256.9 up to model year 2021 | GF54.30-P-6000FR | ||
| A1 | |||
| Head unit, component description | Model 213 with engine 256.9 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) | GF82.85-P-3140FGB | |
| Model 213 with engine 256.9 up to model year 2021 with code 531 (COMAND APS) | |||
| A26/17 | |||
| Model 222 with engine 256.9 as of model year 2018 | GF82.85-P-3140LFM | ||
| A26/17 | |||
| Model 238 with engine 256.9 up to model year 2021 with code 531 (COMAND APS) | GF82.85-P-3140FHB | ||
| A26/17 | |||
| Model 238 with engine 256.9 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) | GF82.85-P-3140FHC | ||
| A26/17 | |||
| Model 257, 290 with engine 256.9 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) except code 531 (COMAND APS) | GF82.85-P-3140FRA | ||
| A26/17 | |||
| Model 257, 290 with engine 256.9 up to model year 2021 with code 531 (COMAND APS) | GF82.85-P-3140FRB | ||
| A26/17 | |||
| Component description for Audio/COMAND control panel | Model 213 with engine 256.9 up to model year 2021 except code 446 (Touchpad only) | GF54.21-P-4501FG | |
| A40/9 | |||
| Model 222 with engine 256.9 as of model year 2018 with code 448 (Touchpad) | GF54.21-P-4501LFM | ||
| A40/9 | |||
| Model 238 with engine 256.9 up to model year 2021 except code 446 (Touchpad only) | GF54.21-P-4501FH | ||
| A40/9 | |||
| Model 257, 290 with engine 256.9 up to model year 2021 except code 446 (Touchpad only) | GF54.21-P-4501FR | ||
| A40/9 | |||
| Touchpad, component description | Model 213 with engine 256.9 up to model year 2021 with code 446 (Touchpad only) | GF54.21-P-4511FG | |
| A105 | |||
| Model 222 with engine 256.9 with code 446 (Touchpad only) | GF54.21-P-4511LF | ||
| A105 | |||
| Model 238 with engine 256.9 up to model year 2021 with code 446 (Touchpad only) | GF54.21-P-4511FH | ||
| A105 | |||
| Model 257, 290 with engine 256.9 up to model year 2021 with code 446 (Touchpad only) | GF54.21-P-4511FR | ||
| A105 | |||
| Supplemental restraint system control unit, component description | Model 213 with engine 256.9 up to model year 2021 | GF91.60-P-4080FG | |
| N2/10 | |||
| Model 222 with engine 256.9 | GF91.60-P-4080LF | ||
| N2/10 | |||
| Model 238 with engine 256.9 up to model year 2021 | GF91.60-P-4080FH | ||
| N2/10 | |||
| Model 257, 290 with engine 256.9 up to model year 2021 N2/10 | GF91.60-P-4080FR | ||
| Component description for ME-SFI (ME) control unit | N3/10 | GF07.61-P-6000MRT | |
| Component description for front SAM control unit | Model 213 with engine 256.9 up to model year 2021 N10/6 |
GF54.21-P-7010FG | |
| Model 222 with engine 256.9 N10/6 |
GF54.21-P-7010LF | ||
| Model 238 with engine 256.9 up to model year 2021 N10/6 |
GF54.21-P-7010FH | ||
| Model 257, 290 with engine 256.9 up to model year 2021 N10/6 |
GF54.21-P-7010FR | ||
| Climate control control unit, component description | Model 213 with engine 256.9 up to model year 2021 N22/1 | GF83.40-P-2250FG | |
| Model 222 with engine 256.9 N22/1 | GF83.40-P-2250LF | ||
| Model 238 with engine 256.9 up to model year 2021 N22/1 | GF83.40-P-2250FH | ||
| Model 257, 290 with engine 256.9 up to model year 2021 N22/1 | GF83.40-P-2250FR | ||
| Component description for Electronic Stability Program control unit | Model 213 with engine 256.9 up to model year 2021 N30/4 | GF42.45-P-5119FG | |
| Model 222 with engine 256.9 as of model year 2018 N30/4 |
GF42.45-P-5119LFM | ||
| Model 238 with engine 256.9 up to model year 2021 N30/4 |
GF42.45-P-5119FH | ||
| Model 257, 290 with engine 256.9 up to model year 2021 N30/4 |
GF42.45-P-5119FR | ||
| AIR BODY CONTROL control unit, component description | Model 213 with engine 256.9 up to model year 2021 with code 489 (AIR BODY CONTROL) N51/3 |
GF32.22-P-5111FG | |
| Model 238 with engine 256.9 up to model year 2021 with code 489 (AIR BODY CONTROL) N51/3 |
GF32.22-P-5111FH | ||
| Model 257, 290 with engine 256.9 up to model year 2021 with code 489 (AIR BODY CONTROL) N51/3 |
GF32.22-P-5111FR | ||
| AIRMATIC control unit, component description | Model 222 with engine 256.9 N51/3 | GF32.22-P-5110LF | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 213 with engine 256.9 up to model year 2021 with code 23P (Drive package) Model 213 with engine 256.9 up to model year 2021 with code P20 (Driving assistant package Plus) |
GF30.30-P-3312FG | |
| N62/4 | |||
| Model 222 with engine 256.9 as of model year 2018 with code 23P (Drive package) N62/4 |
GF30.30-P-3312LFM | ||
| Model 238 with engine 256.9 up to model year 2021 with code 23P (Drive package) N62/4 | GF30.30-P-3312FH | ||
| Model 257, 290 with engine 256.9 up to model year 2021 with code 23P (Drive package) Model 257, 290 with engine 256.9 up to model year 2021 with code P20 (Driving assistant package Plus) N62/4 |
GF30.30-P-3312FR | ||
| Component description for left front door control unit | Model 213 with engine 256.9 up to model year 2021 N69/1 |
GF72.29-P-6001FG | |
| Model 222 with engine 256.9 N69/1 | GF72.29-P-6001LF | ||
| Model 238 with engine 256.9 up to model year 2021 N69/1 |
GF72.29-P-6001FH | ||
| Model 257, 290 with engine 256.9 up to model year 2021 N69/1 |
GF72.29-P-6001FR | ||
| Lower control panel, component description | Model 213 with engine 256.9 up to model year 2021 N72/4 |
GF54.25-P-4270FG | |
| Model 222 with engine 256.9 with code 446 (Touchpad only) N72 |
GF54.25-P-4270LFM | ||
| Model 238 with engine 256.9 up to model year 2021 N72/4 |
GF54.25-P-4270FH | ||
| Model 257, 290 with engine 256.9 up to model year 2021 N72/4 |
GF54.25-P-4270FR | ||
| Component description for the electronic ignition lock control unit | Model 213 with engine 256.9 up to model year 2021 N73 |
GF80.57-P-6001FG | |
| Model 222 with engine 256.9 N73 | GF80.57-P-6001LF | ||
| Model 238 with engine 256.9 up to model year 2021 N73 |
GF80.57-P-6001FH | ||
| Model 257, 290 with engine 256.9 up to model year 2021 N73 |
GF80.57-P-6001FR | ||
| Component description for steering column tube module control unit | Model 213 with engine 256.9 as of model year 2019 up to model year 2021 N80 |
GF54.21-P-6051FGA | |
| Model 222 with engine 256.9 as of model year 2018 N80 |
GF54.21-P-6051LFM | ||
| Model 238 with engine 256.9 as of model year 2019 up to model year 2021 N80 |
GF54.21-P-6051FHG | ||
| Model 257, 290 with engine 256.9 up to model year 2021 N80 |
GF54.21-P-6051FR | ||
| Component description for DC/DC converter control unit | Model 213 with engine 256.9 up to model year 2021 with code B01 (48V technology) N83/1 |
GF54.10-P-3006FG | |
| Model 222 with engine 256.9 with code B01 (48V technology) N83/1 |
GF54.10-P-3006LF | ||
| Model 238 with engine 256.9 up to model year 2021 with code B01 (48V technology) N83/1 |
GF54.10-P-3006FH | ||
| Model 257, 290 with engine 256.9 up to model year 2021 with code B01 (48V technology) N83/1 |
GF54.10-P-3006FR | ||
| Component description for fuel pump control unit | Model 222 with engine 256.9 Model 257, 290 with engine 256.9 up to model year 2021 N118 |
GF47.40-P-2001MMK | |
| Model 213, 238 with engine 256.9 up to model year 2021 N118 |
GF47.40-P-2001MRD | ||
| Drivetrain control unit, component description | N127 | GF54.21-P-2141LF | |
| Starter-alternator control unit component description | Model 213 with engine 256 up to model year 2021 with code B01 (48V technology) N129 |
GF54.21-P-4191FG | |
| Model 222 with engine 256 with code B01 (48V technology) N129 |
GF54.21-P-4191LF | ||
| Model 238 with engine 256.9 up to model year 2021 with code B01 (48V technology) N129 |
GF54.21-P-4191FH | ||
| Model 257, 290 with engine 256.9 up to model year 2021 with code B01 (48V technology) N129 |
GF54.21-P-4191FR | ||
| Fully integrated transmission control electric controller unit control unit, component description | Model 257, 290 with engine 256.9 with transmission 725.0 (except 725.096) up to model year 2021 Y38n4 |
GF27.60-P-5120ANR | |
| Component description for fully integrated transmission control unit | Model 213 with engine 256.9 with transmission 725.0 up to model year 2021 Y38n4 |
GF27.60-P-5165ANL | |
| Model 222 with engine 256.9 with transmission 725.0 Y38n4 |
GF27.60-P-5165AND | ||
| Model 238 with engine 256.9 with transmission 725 up to model year 2021 | GF27.60-P-5165FH | ||
| Y38n4 | |||
| Table of contents for function description of gasoline injection and ignition system with direct injection | GF07.70-P-0998MRT |
