Automatically Controlled All-Wheel Drive (4MATIC), Function - GF28.00-S-0001TRA
Model 447 With Transmission 722.965

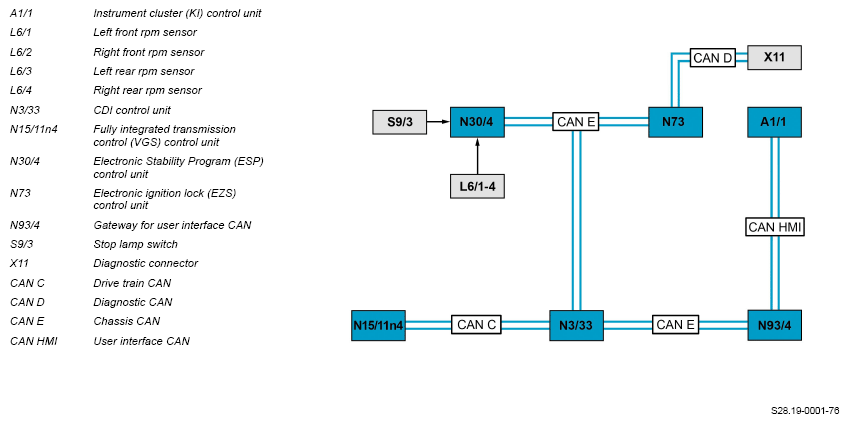

Block diagram on model 447.6 and model 447.7

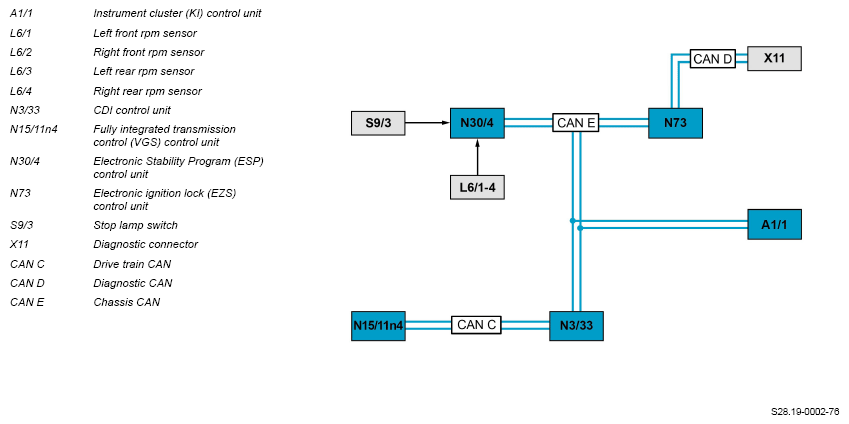

Block diagram on model 447.8
| Sales designation | Model | Motor | Transmission | Transmission control | Notes |
|---|---|---|---|---|---|
| 119 CDI 4x4 | 447.601 | 651.950 | 722.965 | Fully integrated transmission control 4 | 119 BT Panel van/Mixto 4x4 A1 |
| 119 CDI 4x4 | 447.603 | 651.950 | 722.965 | Fully integrated transmission control 4 | 119 BT Panel van/Mixto 4x4 A2 |
| 119 CDI 4x4 | 447.605 | 651.950 | 722.965 | Fully integrated transmission control 4 | 119 BT Panel van/Mixto 4x4 A3 |
| 119 CDI 4x4 | 447.701 | 651.950 | 722.965 | Fully integrated transmission control 4 | 119 BT Panel van/Mixto 4x4 A1 |
| 119 CDI 4x4 | 447.701 | 651.950 | 722.965 | Fully integrated transmission control 4 | 119 BT Crewbus 4x4 A1 |
| 119 CDI 4x4 | 447.703 | 651.950 | 722.965 | Fully integrated transmission control 4 | 119 BT Panel van/Mixto 4x4 A2 |
| 119 CDI 4x4 | 447.703 | 651.950 | 722.965 | Fully integrated transmission control 4 | 119 BT Crewbus 4x4, 250 BT 4MATIC Marco Polo A2 |
| 119 CDI 4x4 | 447.705 | 651.950 | 722.965 | Fully integrated transmission control 4 | 119 BT Panel van/Mixto 4x4 A3 |
| 119 CDI 4x4 | 447.705 | 651.950 | 722.965 | Fully integrated transmission control 4 | 119 BT Crewbus 4x4 A3 |
| CDI 2.2 4MATIC | 447.811 | 651.950 | 722.965 | Fully integrated transmission control 4 | V 250 BT Luxury MPV 4MATIC A1 |
| CDI 2.2 4MATIC | 447.813 | 651.950 | 722.965 | Fully integrated transmission control 4 | V 250 BT Luxury MPV/Marco Polo 4MATIC A2 |
| CDI 2.2 4MATIC | 447.815 | 651.950 | 722.965 | Fully integrated transmission control 4 | V 250 BT Luxury MPV 4MATIC A3 |
Automatically-controlled all-wheel drive (4MATIC) in general
The automatically controlled all-wheel drive (4MATIC) is a permanent all-wheel drive with interaxle differential. Integration of the transfer case in the A/T reduces the teeth engagement and realizes an optimized lubrication concept. The base blocking torque of 50 Nm serves to improve traction at low engine torque and reduce drive-line vibration. The fixed drive torque distribution is 45 % at the front axle and 55 % at the rear axle. The drive torque is distributed via a single-speed transfer case without off-road ratio to the drive axles (drive train).
Further subfunctions are described in separate documents:
- 4MATIC transfer case, function
- 4MATIC side output, function
- 4MATIC front axle transmission, function
- Oil supply for 4MATIC transfer case function
- 4MATIC electronic traction system, function
| Automatically regulated all-wheel drive (4MATIC) torque distribution | GF28.00-S-0001-02TRA | ||
| Automatically controlled all-wheel drive (4MATIC), technical data | GF28.00-S-0001-03TRA | ||
| 4MATIC transfer case, function | GF28.10-S-1000TRA | ||
| 4MATIC side output, function | GF28.10-S-1010TRA | ||
| Oil supply for 4MATIC transfer case function | GF28.55-S-3010TRA | ||
| 4MATIC front axle transmission, function | GF33.10-S-3000TRA | ||
| 4MATIC electronic traction system, function | GF42.35-S-1000TRA | ||
| Overview of system components, automatically controlled all-wheel drive (4MATIC) | GF28.00-S-9998TRA |
