Overview Of System Components, Automatically Controlled All-Wheel Drive (4MATIC) - GF28.00-S-9998TRA
Transmission 722.965 in model 447

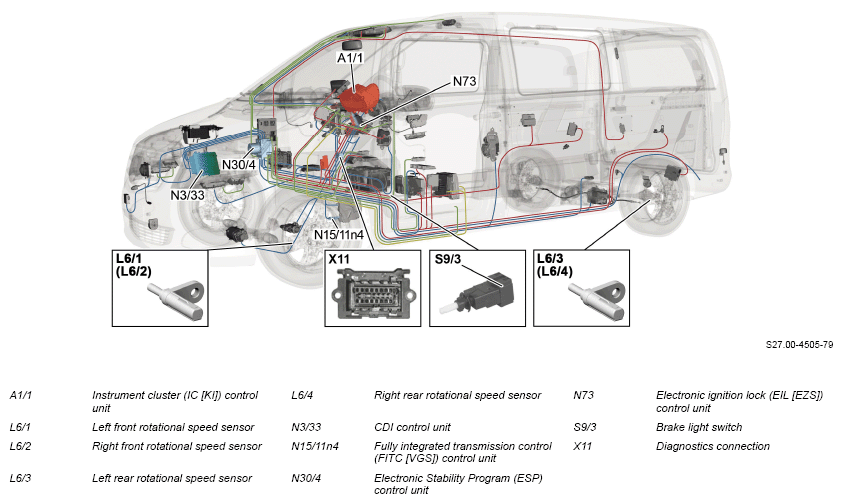

Phantom view of model 447.6 and model 447.7

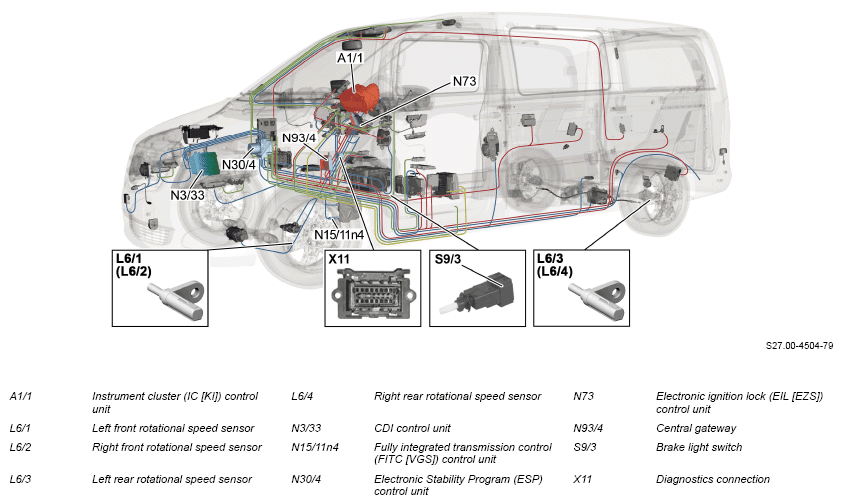

Phantom view of model 447.8
| Instrument cluster (IC) control unit, component description | Vehicle without code XM0 (Facelift) | GF54.30-S-6004TRA | |
| Vehicle with code XM0 (Facelift) A1/1 | GF54.30-S-6004TRF | ||
| Component description for CDI control unit | Model 447 with engine 651.9 with transmission 722.965 | GF07.16-S-6000TRB | |
| N3/33 | |||
| Fully integrated transmission control unit (VGS), component description | N15/11n4 | GF27.60-S-5173TRA | |
| Electronic Stability Program (ESP(R)) control unit, component description | Transmission 722.965 in model 447 except code XM7 (MOPF II) | GF42.45-S-3005TRA | |
| N30/4 | |||
| Component description for the electronic ignition lock control unit | Vehicle without code XM0 (Facelift) | GF80.57-S-6001TRA | |
| Vehicle with code XM0 (Facelift) N73 | GF80.57-S-6001TRF | ||
| Gateway for user interface CAN, component description | Model 447.8 with transmission 722.965 | GF54.21-S-2124TRA | |
| N93/4 | |||
| Table of contents for function description, automatically controlled all-wheel drive (4MATIC) | GF28.00-S-0999TRA |
