Spark Plugs, Component Description - GF15.10-P-2000A

Model 223 with engine 176

Model 223 with engine 177

Model 223 with engine 256

Model 223 with engine 279

G16233039Courtesy of MERCEDES-BENZ USA

Image valid for model 223 with engine M176

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

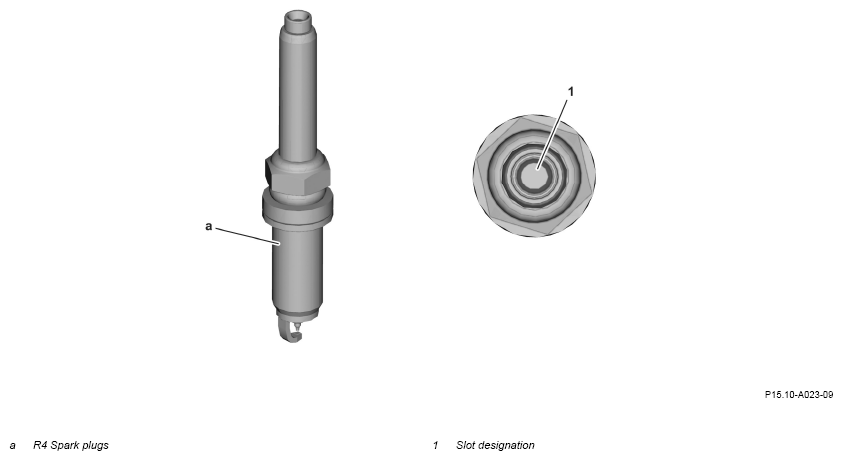

G16233040Courtesy of MERCEDES-BENZ USA

Image valid for model 223 with engine M177

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

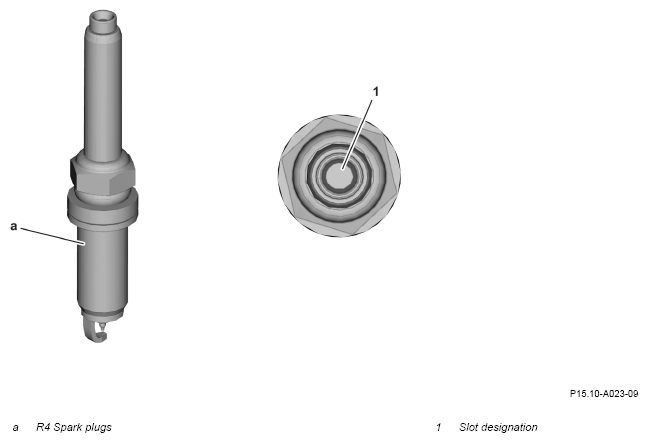

G16233041Courtesy of MERCEDES-BENZ USA

Image valid for model 223 with engine M256

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

G16233042Courtesy of MERCEDES-BENZ USA

Image valid for model 223 with engine M279

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

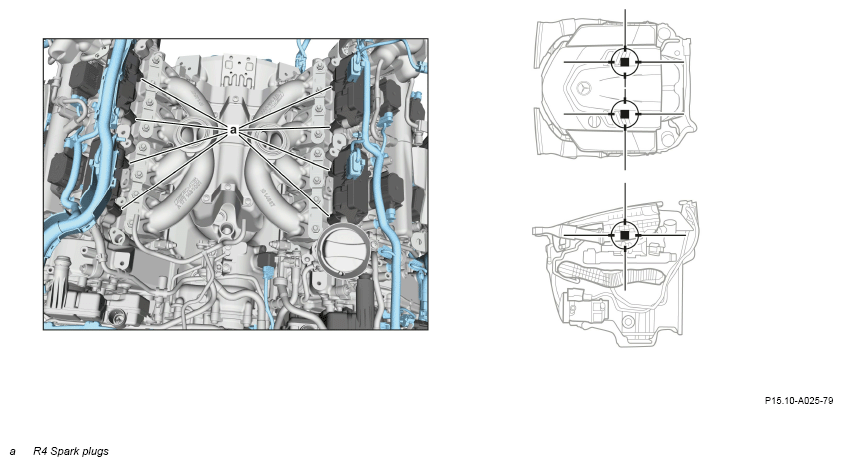

G16233043Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M176

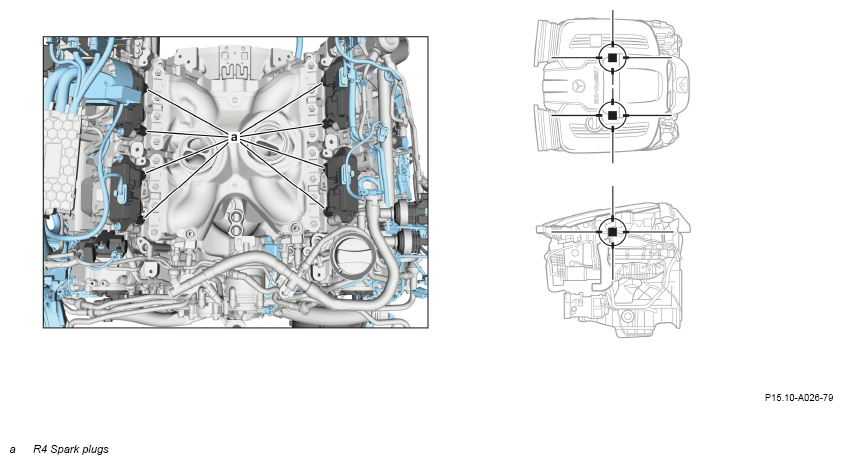

G16233044Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M177

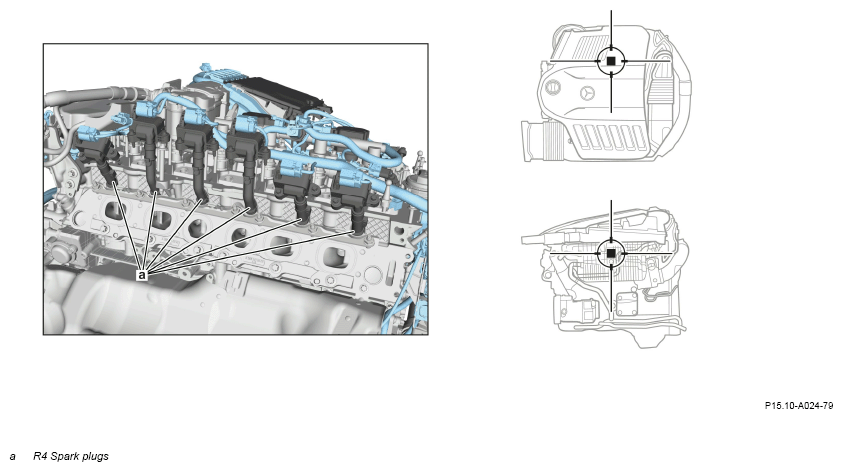

G16233045Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M256

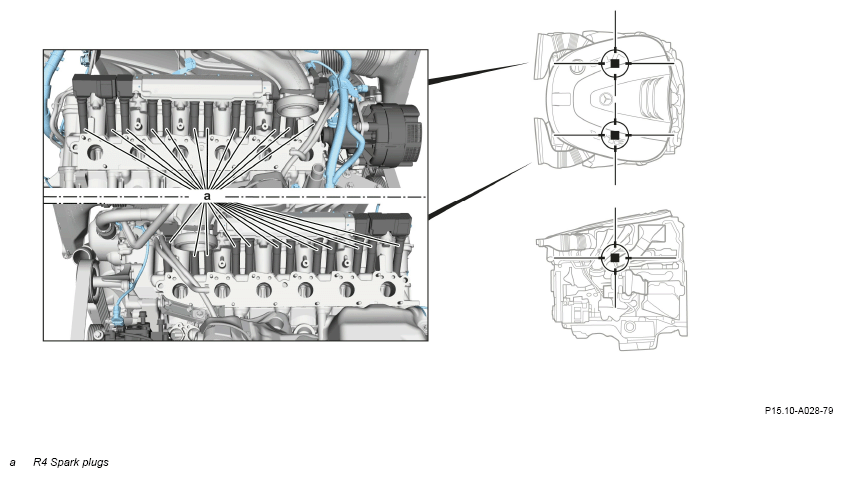

G16233046Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M279
