Remove/Install Starter - AR15.30-P-7100SVZ
Engine 279 in model 223
MODIFICATION NOTES
| 30.05.2023 | Bolt, starter to crankcase/transmission | Engine 279 | BA15.30-P-1003-01J |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||
| 1 | Disconnect ground line from battery. | AR54.10-P-0051S | |
| 2 | Remove left catalytic converter. | AR49.20-P-0101SVZ | |

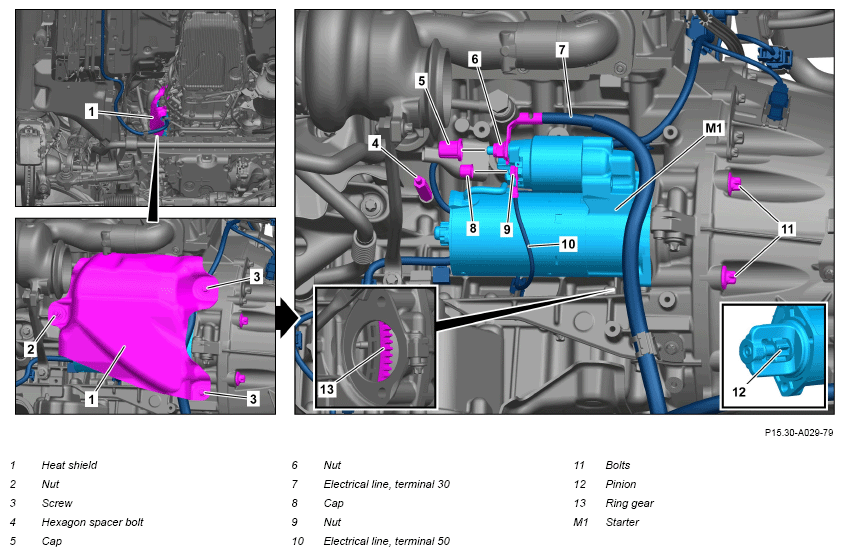

| 3 | Remove nut (2), unscrew screws (3) and remove heat shield (1). | ||
| 4 | Remove cover (5). | ||
| 5 | Remove nut (6) and remove circuit 30 electric line (7). | ||
| 6 | Expose circuit 30 electric line (7). | ||
| 7 | Remove cover cap (8). | ||
| 8 | Remove nut (9) and remove circuit 50 electric line (10). | ||
| 9 | Expose circuit 50 electric line (10). | ||
| 10 | Unscrew screws (11) and guide out starter (M1) downwards. | ||
| Check | |||
| 11 | Check pinion (12) of starter (M1) for damage and wear. | If damage or wear is present: ↓ Replace starter (M1). |
|
| 12 | Check ring gear (13) of drive plate for damage and wear. | If damage and/or wear is present at pinion (12) of starter (M1). |
Fig 1 |
| If damage or wear is present: ↓ Replace drive plate. |
|||
| AR03.30-P-8003SVZ | |||
| 13 | Check heat shield (1) for damage. | If damage is present: ↓ Replace heat shield (1). |
|
| 14 | Check hexagon spacer bolt (4) for damage and firm seating. | If there is a problem, ↓ Tighten hexagon spacer bolt (4) or replace. |
*BA15.30-P-1006-01J |
| Install | |||
| 15 | Insert starter (M1) from underneath and screw in screws (11). | *BA15.30-P-1003-01J | |
| 16 | Install circuit 50 electric line (10) and attach to starter (M1) with nut (9). | *BA15.30-P-1002-01J | |
| 17 | Install cover cap (8). | ||
| 18 | Install circuit 30 electric line (7) and attach to starter (M1) with nut (6). | *BA15.30-P-1001-01J | |
| 19 | Install cover (5). | ||
| 20 | Insert heat shield (1), attach nut (2) and screw in screws (3). | *BA15.30-P-1005-01J | |
| 21 | Install left catalytic converter. | AR49.20-P-0101SVZ | |
| 22 | Connect ground line to battery. | AR54.10-P-0051S | |
| Check | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 23 | Perform an engine test run and check the engine for proper function. |
STARTER
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA15.30-P-1001-01J | Nut, connection for terminal designation 30 | Nm | 15 |
STARTER
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA15.30-P-1002-01J | Nut, connection for terminal designation 50 | Nm | 6 |
STARTER
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA15.30-P-1003-01J | Bolt, starter to crankcase/transmission | Nm | 39 |
STARTER
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA15.30-P-1005-01J | Bolt/nut, heat shield to crankcase | Nm | 8 |
STARTER
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA15.30-P-1006-01J | Threaded pin, heat shield to crankcase | Nm | 7 |
