Function Schematic For Injection Control - PE07.61-P-2500-97H
Engine 254 in model 167
as of model year 2023
Engine 254 in model 206, 214, 236, 254
Engine 256 in model 214, 223, 236
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Accelerator pedal sensor, signal | 17B |
| 1 | Accelerator pedal sensor, signal | 17A |
| 10 | Engine oil temperature, signal | 17K |
| 11 | Engine oil pressure sensor, signal | 18K |
| 12 | Gasoline particulate filter differential pressure sensor, signal | 18L |
| 13 | Fuel pressure, signal | 18J |
| 14 | Fuel temperature, signal | 17J |
| 15 | Actuator motor, throttle valve actuator, actuation | 23H |
| 16 | Fuel injectors, actuation | 23E |
| 17 | Ignition coils, actuation | 23B |
| 2 | Engine torque, increase request | 8B |
| 2 | Engine torque, increase request | 16B |
| 2 | Engine torque, increase request | 16A |
| 3 | Engine torque, reduce request | 8B |
| 3 | Engine torque, reduce request | 16B |
| 3 | Engine torque, reduce request | 16A |
| 4 | Oxygen sensor, signal | 18F |
| 5 | Throttle valve position, signal | 18G |
| 6 | Circuit 87, status | 18D |
| 7 | Coolant temperature sensor, signal | 18E |
| 8 | Engine speed, signal | 18C |
| 9 | Camshaft Hall sensor, signal | 18H |
| B149/1 | Engine oil pressure and temperature sensor | 10K |
| B163/3 | Gasoline particulate filter differential pressure sensor | 4L |
| B4/25 | Fuel pressure and temperature sensor | 4K |
| B4/47 | Fuel pressure/temperature sensor | 4J |
| B6/4 | Camshaft Hall sensor | 9H |
| B6/6 | Camshaft Hall sensor | 9J |
| B94/17 | Coolant temperature sensor | 5E |
| CAN C | CAN for engine | 14C |
| CAN C1 | CAN 1 for drive | 14A |

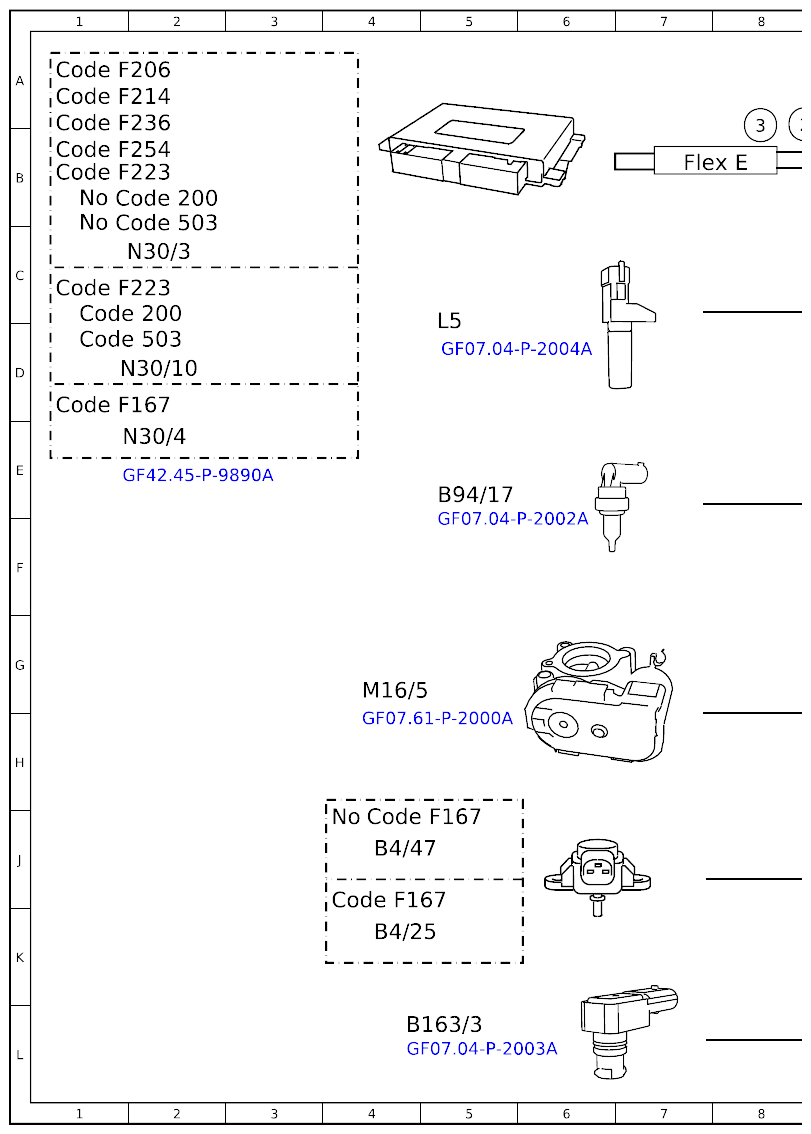

| Code 200 | Conditionally automated driving | 1C |
| Code 200 | Conditionally automated driving | 1B |
| Code 503 | Pre-installation for Remote Parking Pilot | 1C |
| Code 503 | Pre-installation for Remote Parking Pilot | 1D |
| Code F167 | Model series 167 | 12B |
| Code F167 | Model series 167 | 12A |
| Code F167 | Model series 167 | 4J |
| Code F167 | Model series 167 | 4J |
| Code F167 | Model series 167 | 1D |
| Code F206 | Model series 206 | 1A |
| Code F214 | Model series 214 | 1A |
| Code F223 | Model series 223 | 1C |
| Code F223 | Model series 223 | 1B |
| Code F236 | - | 1B |
| Code F254 | Model series 254 | 1B |

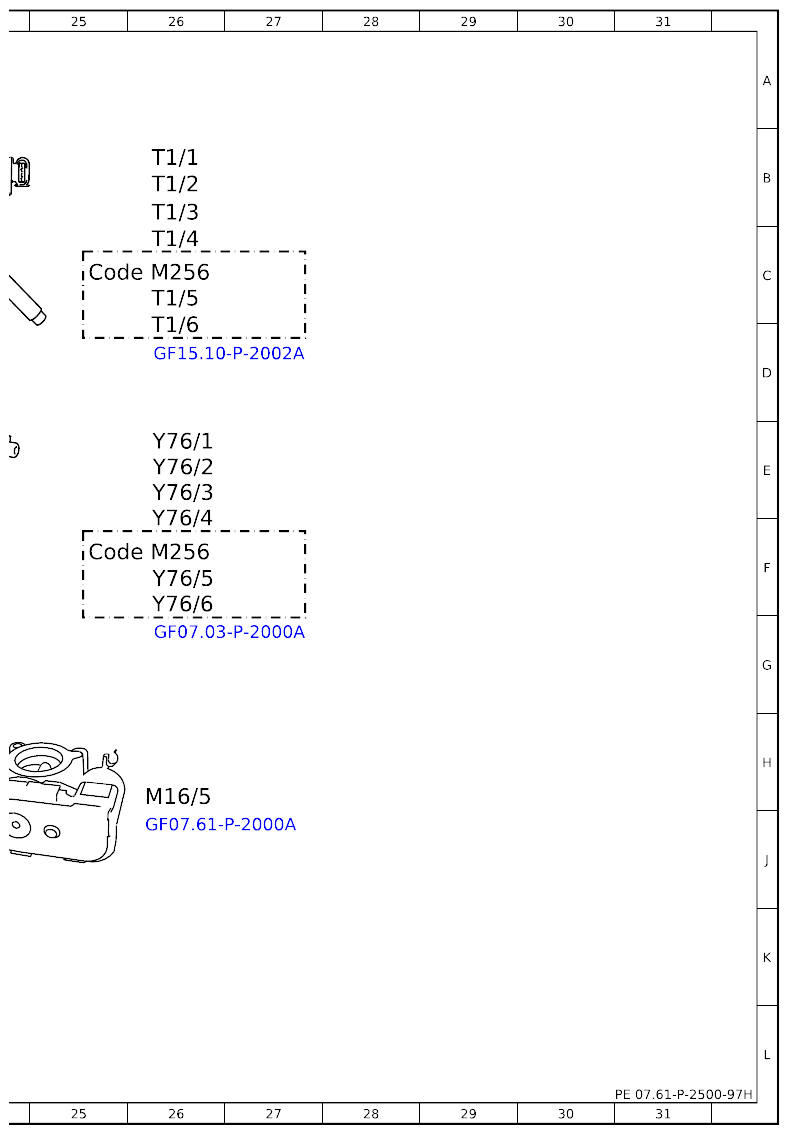

| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 25C |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 25F |
| F152/3 | Engine compartment fuse and relay module | 9E |
| Flex E | Chassis FlexRay | 7B |
| G8/1 | Oxygen sensor | 9F |
| G8/2 | Oxygen sensor | 9F |
| L5 | Crankshaft Hall sensor | 5D |
| M16/5 | Throttle valve actuator | 26H |
| M16/5 | Throttle valve actuator | 4G |

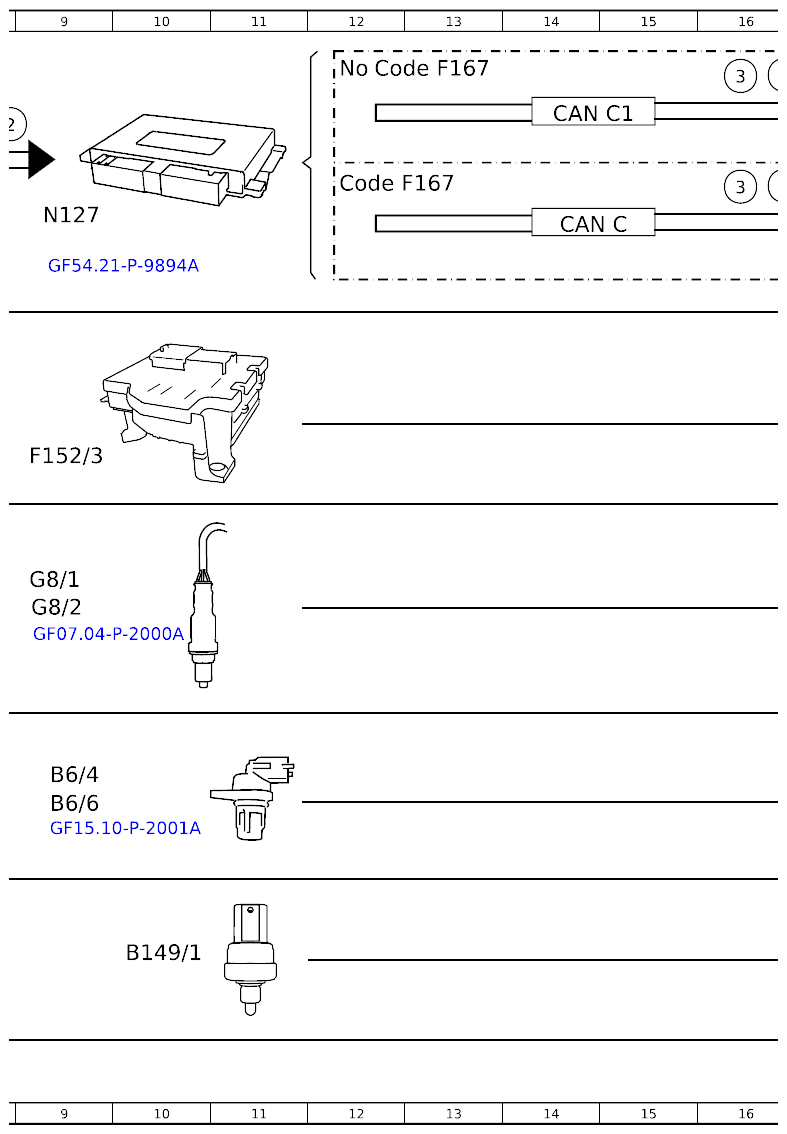

| N127 | Drivetrain control unit | 9B |

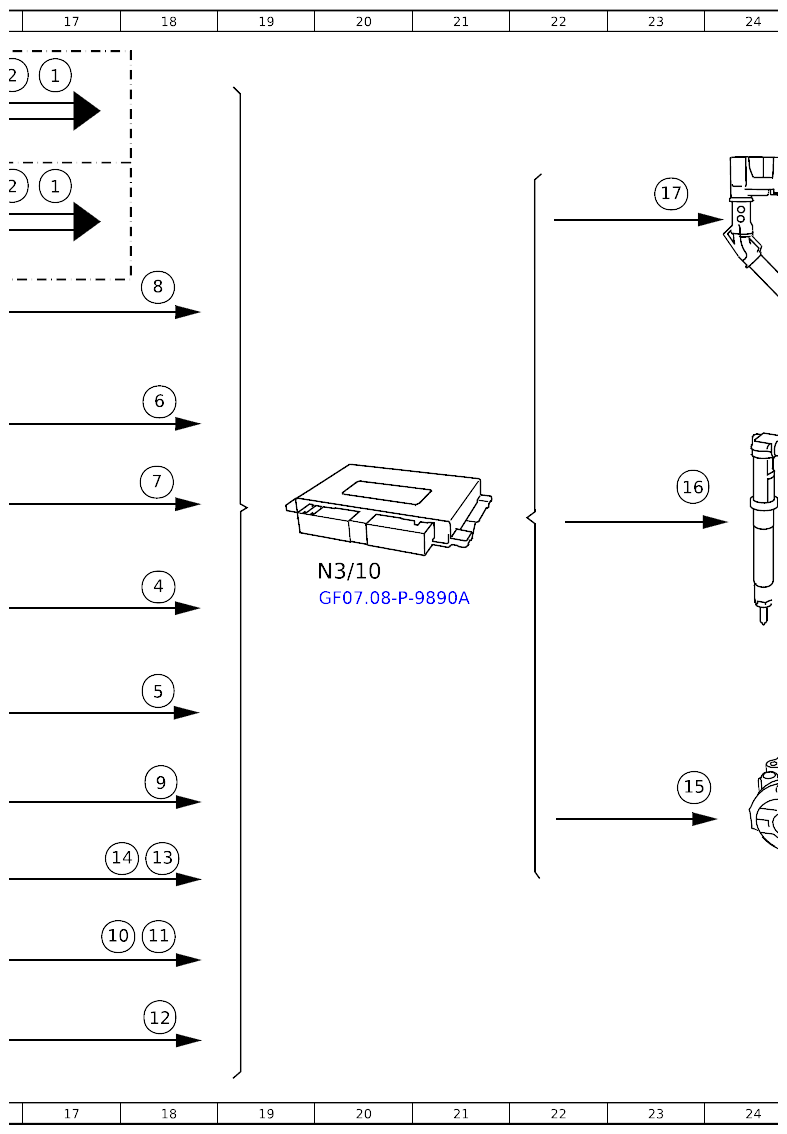

| N3/10 | Engine management control unit | 20F |
| N30/10 | Electronic Stability Program control unit | 2D |
| N30/3 | Electronic Stability Program control unit | 2C |
| N30/4 | Electronic Stability Program (ESP®) control unit | 2E |
| T1/1 | Cylinder 1 ignition coil | 26B |
| T1/2 | Cylinder 2 ignition coil | 26B |
| T1/3 | Cylinder 3 ignition coil | 26B |
| T1/4 | Cylinder 4 ignition coil | 26C |
| T1/5 | Cylinder 5 ignition coil | 26C |
| T1/6 | Cylinder 6 ignition coil | 26D |
| Y76/1 | Cylinder 1 fuel injector | 26E |
| Y76/2 | Cylinder 2 fuel injector | 26E |
| Y76/3 | Cylinder 3 fuel injector | 26E |
| Y76/4 | Cylinder 4 fuel injector | 26F |
| Y76/5 | Cylinder 5 fuel injector | 26F |
| Y76/6 | Cylinder 6 fuel injector | 26F |
