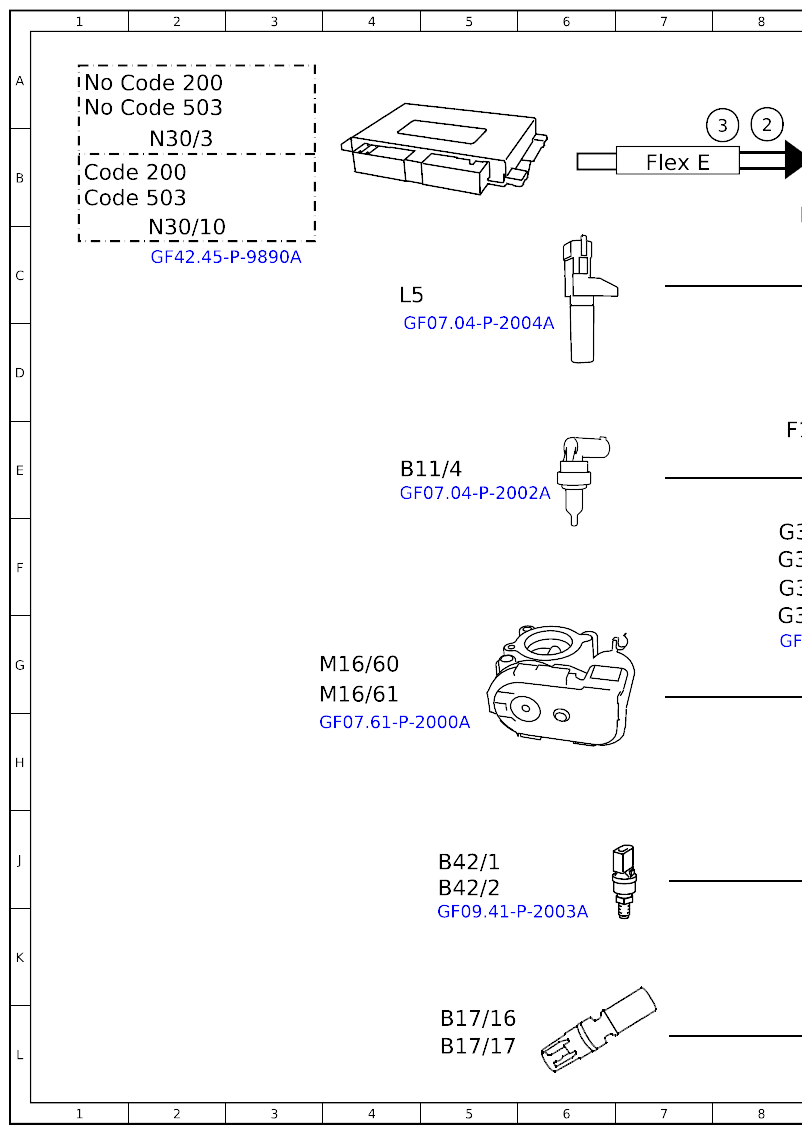

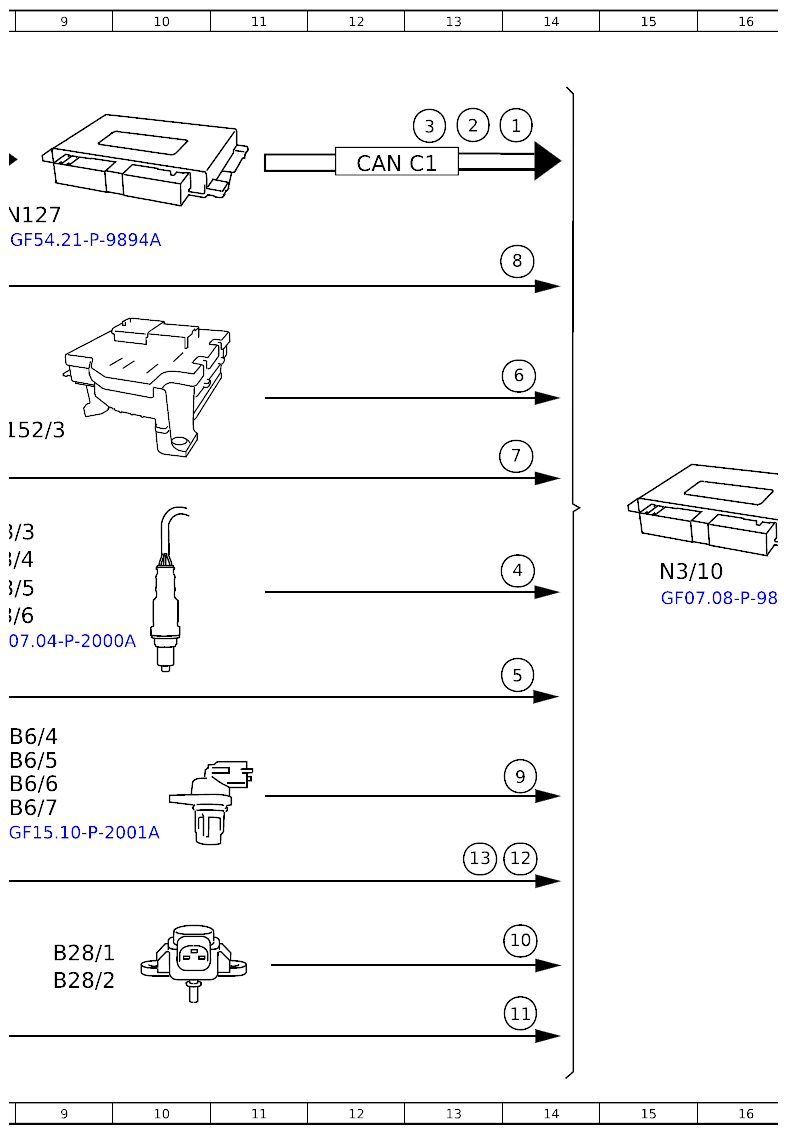

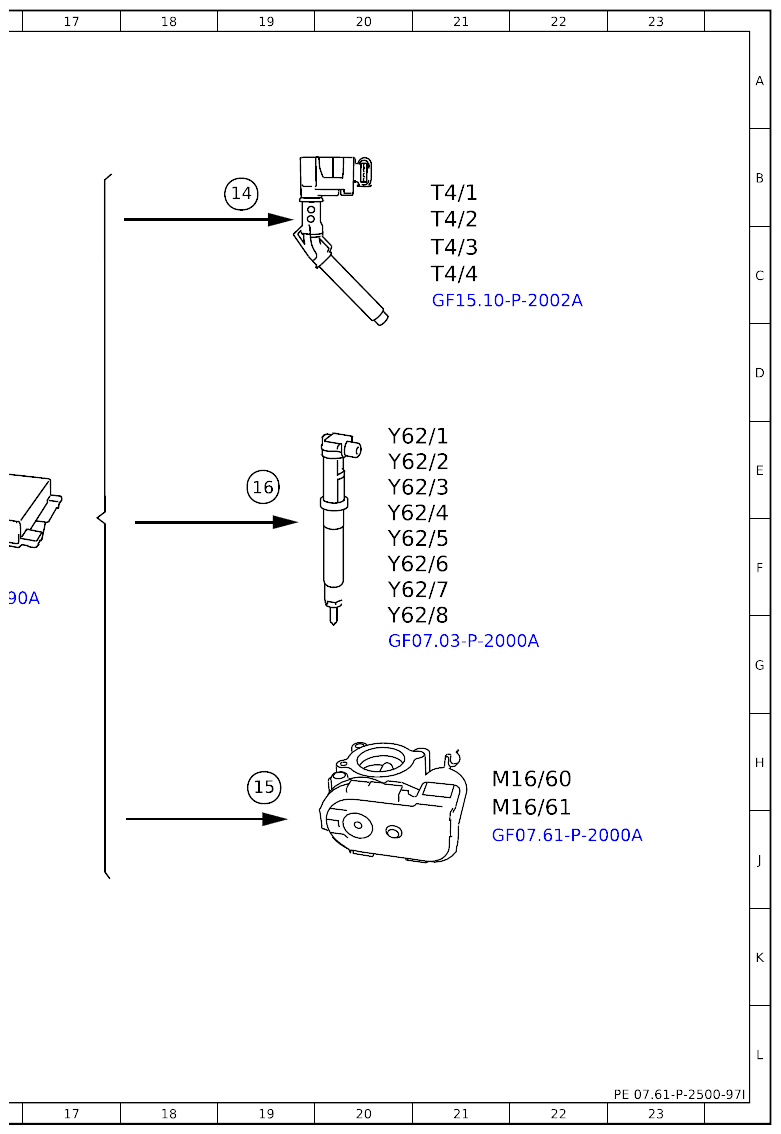

Function Schematic For Injection Control - PE07.61-P-2500-97I
Engine 176 in model 223
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Accelerator pedal sensor, signal | 14B |
| 10 | Intake manifold pressure, signal | 14K |
| 11 | Intake manifold intake air temperature sensor, signal | 14L |
| 12 | Fuel pressure, signal | 14J |
| 13 | Fuel temperature, signal | 13J |
| 14 | Ignition coils, actuation | 19B |
| 15 | Actuator motor, throttle valve actuator, actuation | 19H |
| 16 | Fuel injectors, actuation | 19E |
| 2 | Engine torque, increase request | 8B |
| 2 | Engine torque, increase request | 13B |
| 3 | Engine torque, reduce request | 8B |
| 3 | Engine torque, reduce request | 13B |
| 4 | Oxygen sensor, signal | 14F |
| 5 | Throttle valve position, signal | 14G |
| 6 | Circuit 87, status | 14D |
| 7 | Coolant temperature sensor, signal | 14E |
| 8 | Engine speed, signal | 14C |
| 9 | Camshaft Hall sensor, signal | 14H |
| B11/4 | Coolant temperature sensor | 4E |
| B17/16 | Intake air temperature sensor | 5L |
| B17/17 | Intake air temperature sensor | 5L |
| B28/1 | Intake air pressure sensor | 9K |
| B28/2 | Intake air pressure sensor | 9K |
| B42/1 | Fuel pressure/temperature sensor | 5J |
| B42/2 | Fuel pressure/temperature sensor | 5J |
| B6/4 | Camshaft Hall sensor | 8H |
| B6/5 | Camshaft Hall sensor | 8H |
| B6/6 | Camshaft Hall sensor | 8H |
| B6/7 | Camshaft Hall sensor | 8J |
| CAN C1 | CAN 1 for drive | 12B |
| Code 200 | Conditionally automated driving | 1B |
| Code 200 | Conditionally automated driving | 1A |
| Code 503 | Remote-controlled parking | 1A |
| Code 503 | Remote-controlled parking | 1B |
| F152/3 | Fuse and relay module | 8E |
| Flex E | Chassis FlexRay | 7B |
| G3/3 | Oxygen sensor | 8F |
| G3/4 | Oxygen sensor | 8F |
| G3/5 | Oxygen sensor | 8F |
| G3/6 | Oxygen sensor | 8G |
| L5 | Crankshaft Hall sensor | 4C |
| M16/60 | Throttle valve actuator | 3G |
| M16/60 | Throttle valve actuator | 21H |
| M16/61 | Throttle valve actuator | 21J |
| M16/61 | Throttle valve actuator | 3G |
| N127 | Drivetrain control unit | 9B |
| N3/10 | Engine management control unit | 15F |
| N30/10 | Electronic Stability Program control unit | 2C |
| N30/3 | Electronic Stability Program control unit | 2B |
| T4/1 | Ignition coil | 21B |
| T4/2 | Ignition coil | 21C |
| T4/3 | Ignition coil | 21C |
| T4/4 | Ignition coil | 21C |
| Y62/1 | Injector | 20E |
| Y62/2 | Injector | 20E |
| Y62/3 | Injector | 20E |
| Y62/4 | Injector | 20F |
| Y62/5 | Injector | 20F |
| Y62/6 | Injector | 20F |
| Y62/7 | Injector | 20F |
| Y62/8 | Injector | 20G |
