Remove/Install Intake Camshaft Sensor - AR15.12-P-2146SB
Engine 256 in model 223
Shown on engine 256.9
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove upper engine cover. | ||
| AP01.10-P-2405-01OB | |||
| 2 | Release and disconnect electrical connector at camshaft Hall sensor (B6/4). | ||
| 3 | Remove screw (1). | *BA15.10-P-1002-03I | |

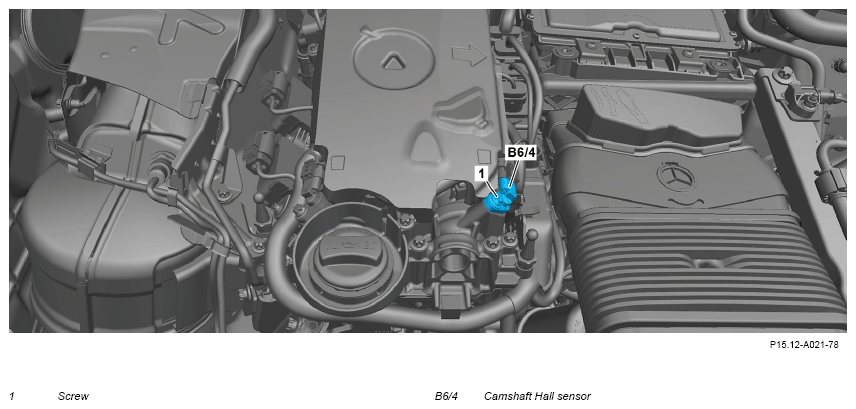

| 4 | Remove camshaft Hall sensor (B6/4). | Fig 3 | |
| Fig 2 | |||
| 5 | Install in the reverse order. | ||
| Concluding tasks | |||
| 6 | Connect diagnostic system, read out fault memory and clear if necessary. | ||
| AD00.00-P-2000-06FR | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform engine test run. While doing so, check engine for proper operation and leak tightness. |
POSITION SENSOR
| Number | Designation | Engine 256 | |
|---|---|---|---|
| BA15.10-P-1002-03I | Screw/bolt, camshaft position sensor to cylinder head cover | Nm | 8 |
