Prepare Spring Bracket Of Rear Axle Spring For Installation - Ar61.25-D-6155-02TSB
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A |
Model 907.6/7/8 except code IR2 (Wheelbase 3250 mm)
The next steps are shown on the left component part and must be performed in a similar way in the event of damage on the right side of the vehicle.

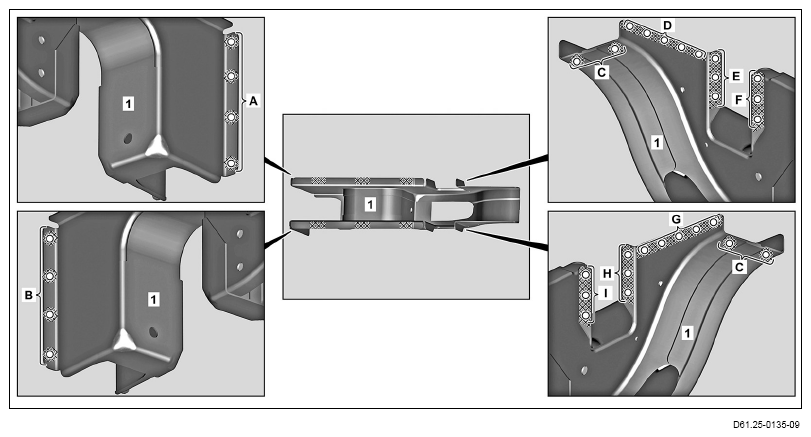

- Drill holes on spring bracket (1) with a diameter of 7 mm (areas A, B, C, D, E, F, G, H, and I).
- Grind spring bracket (1) down to bare metal in crosshatched areas and around the holes (areas A, B, C, D, E, F, G, H, and I).
- Remove shavings and drill chips.
