Overview Of System Components For Common Rail Diesel Injection (CDI) - GF07.16-D-9997TSC

Engine 642.8 in model 907

Overview of system components

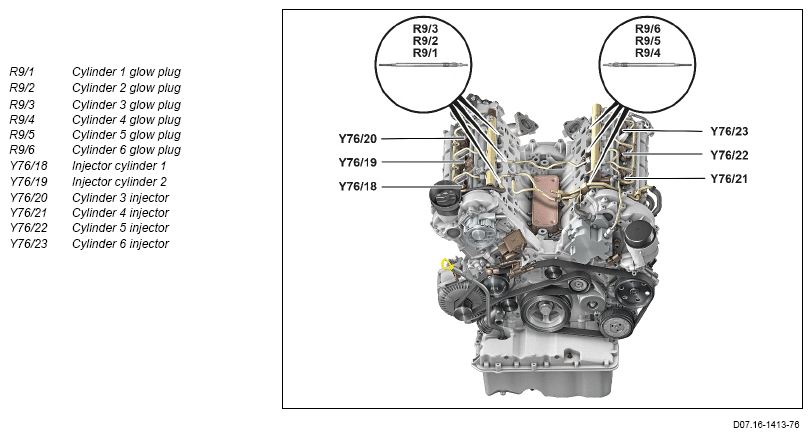

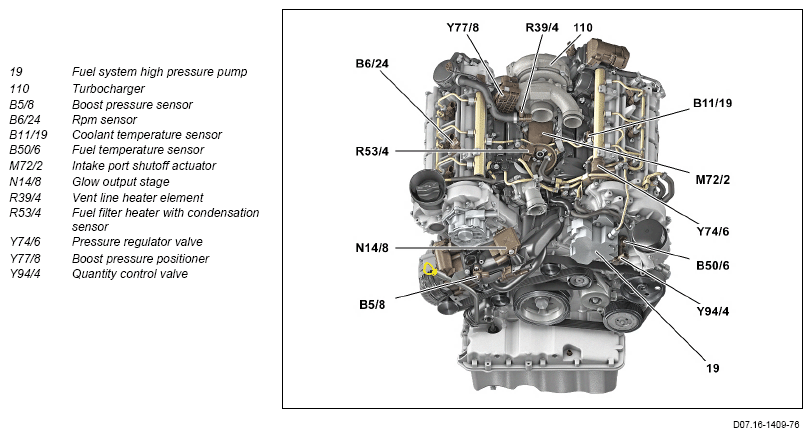

View of the engine from above

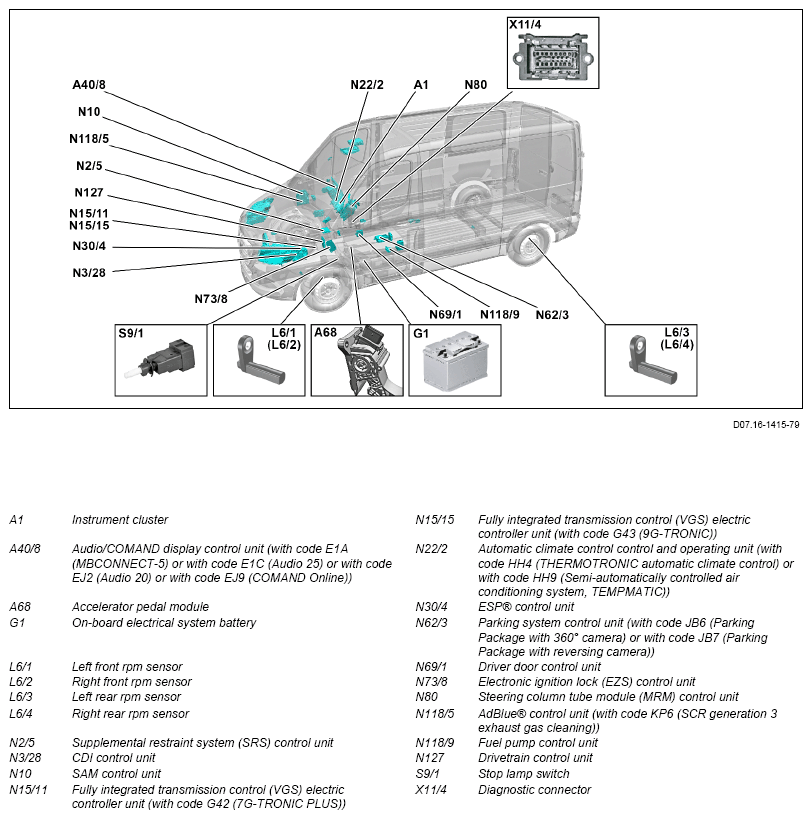

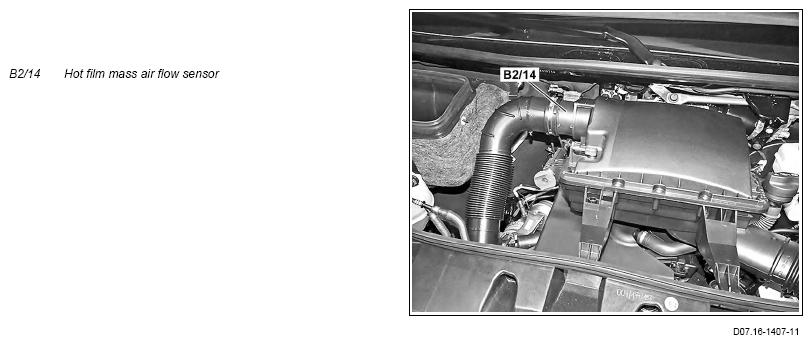

Engine compartment

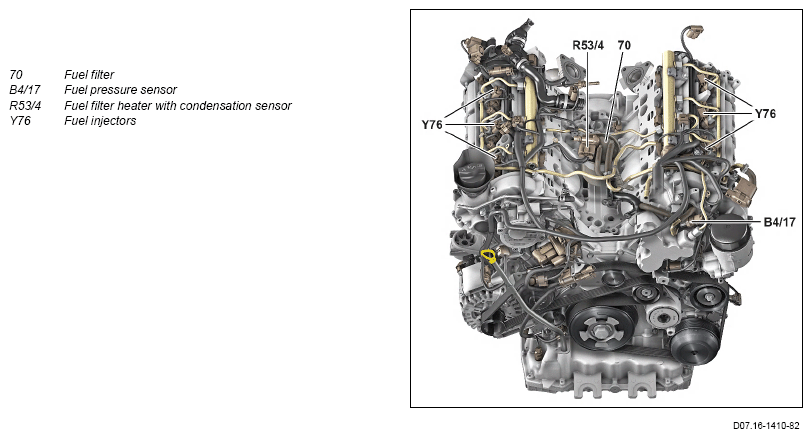

Engine top front view

View of the engine from above

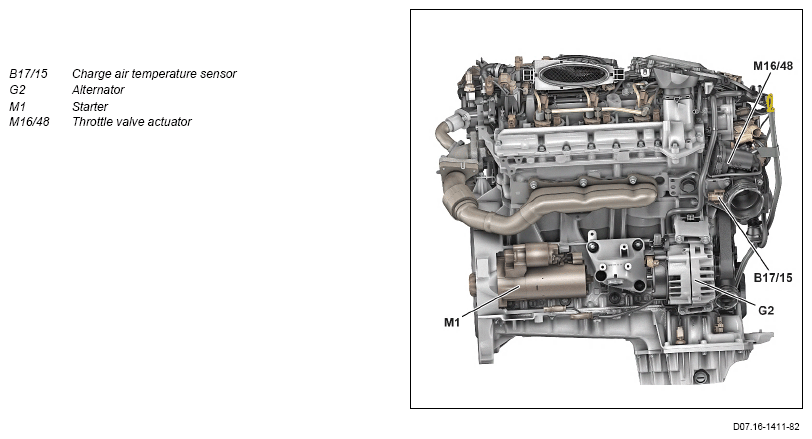

Engine right view

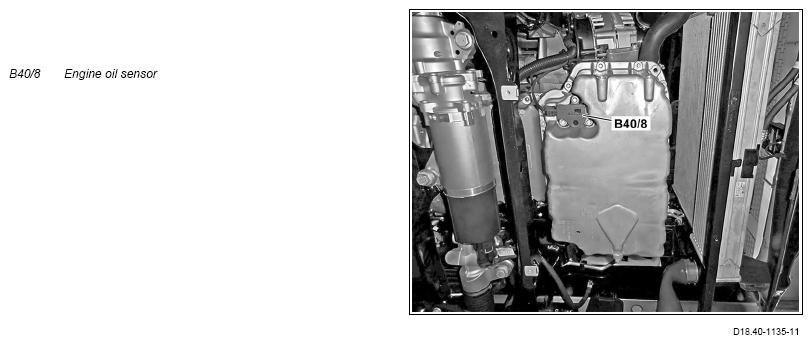

Bottom view of engine

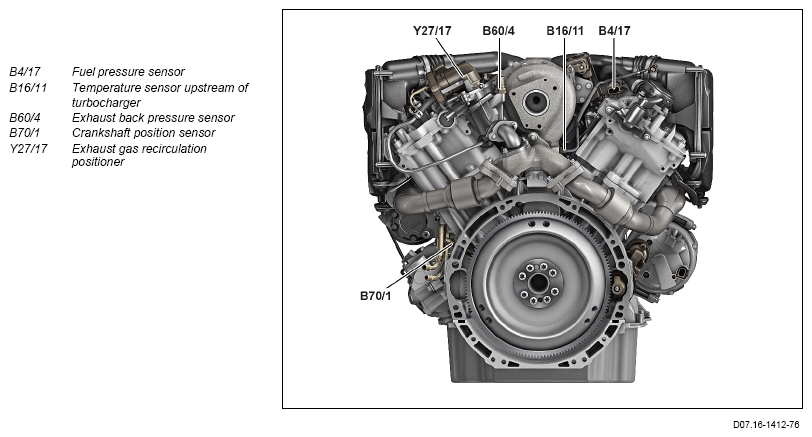

Engine rear view

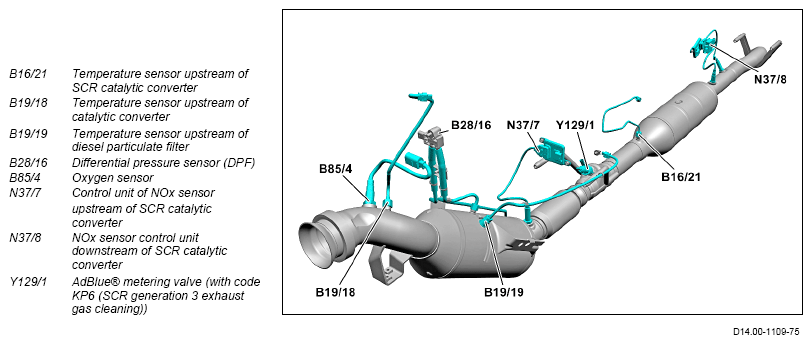

Exhaust system

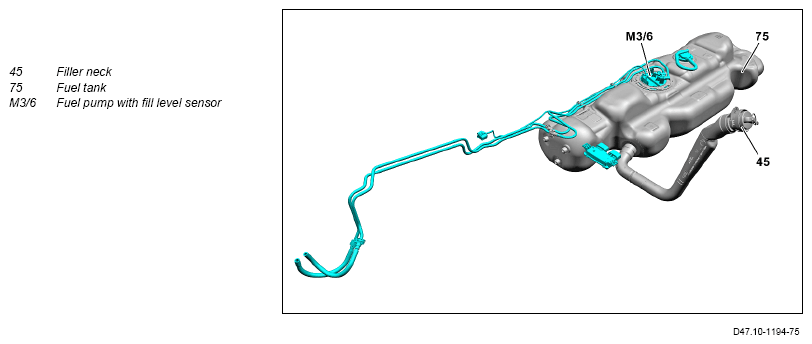

Fuel tank

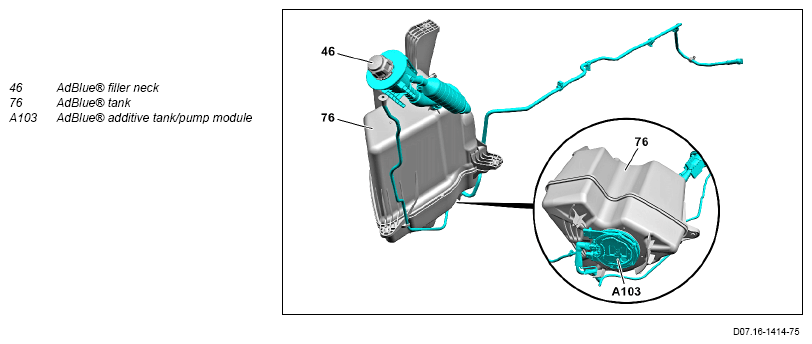

AdBlue® container (with code KP6 (SCR Generation 3 exhaust gas cleaning))

Table of contents for function description of common rail diesel injection (CDI)
