Overview Of System Components Of Level Control System - GF32.33-D-9993TS

Model 907 with code CB2 (Comfort air suspension)

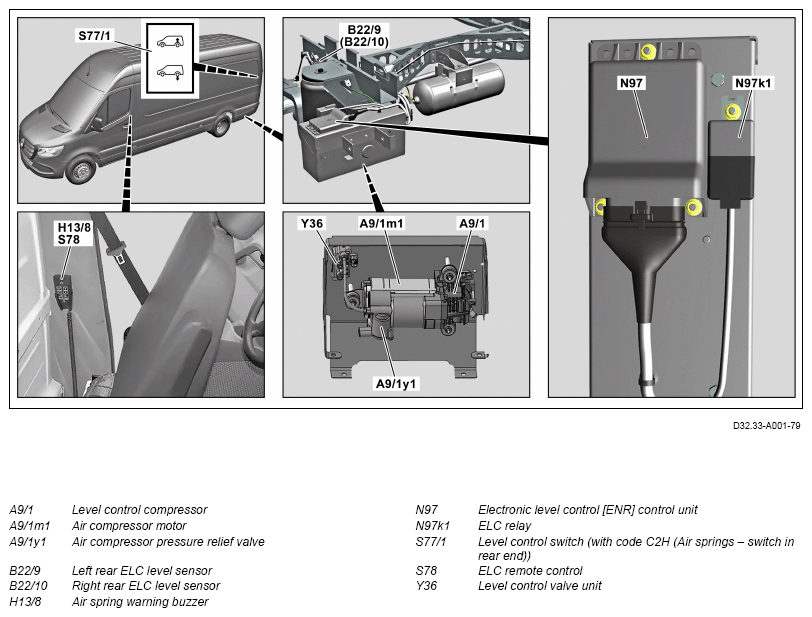

Installation location

G13786874

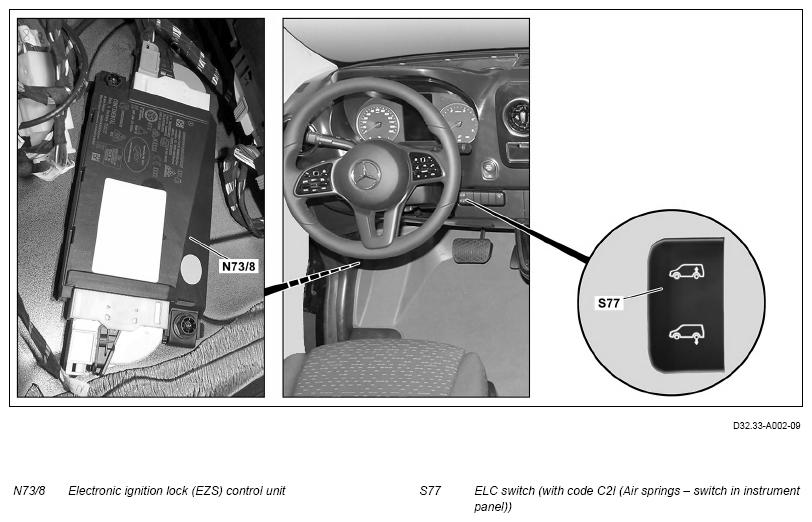

Installation location

G13786875

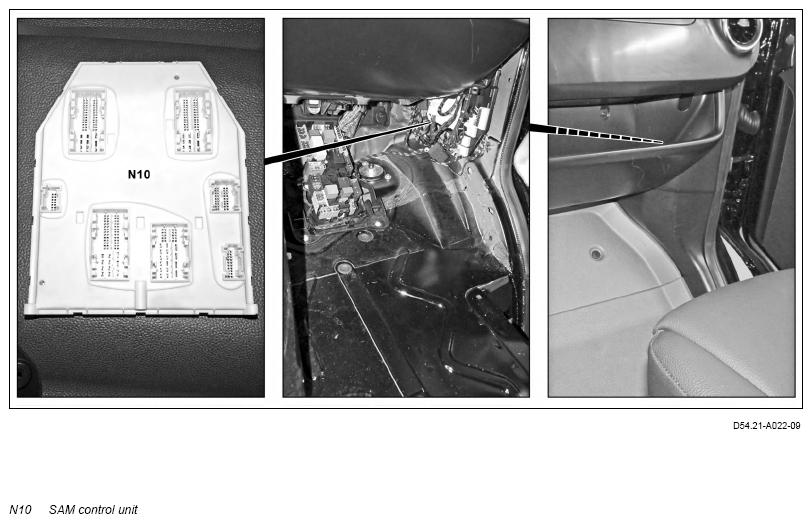

Installation location

G13786876

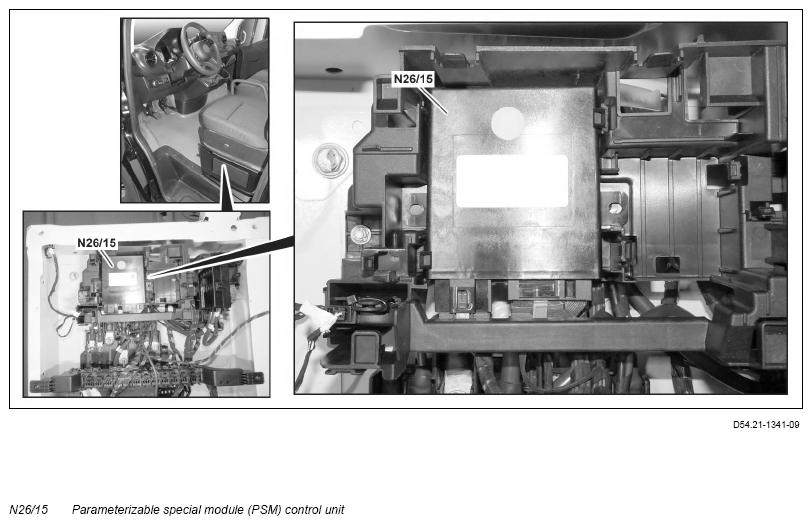

Installation location

G13786877
Table of contents for function description of level control system GF32.33-D-0995TS
