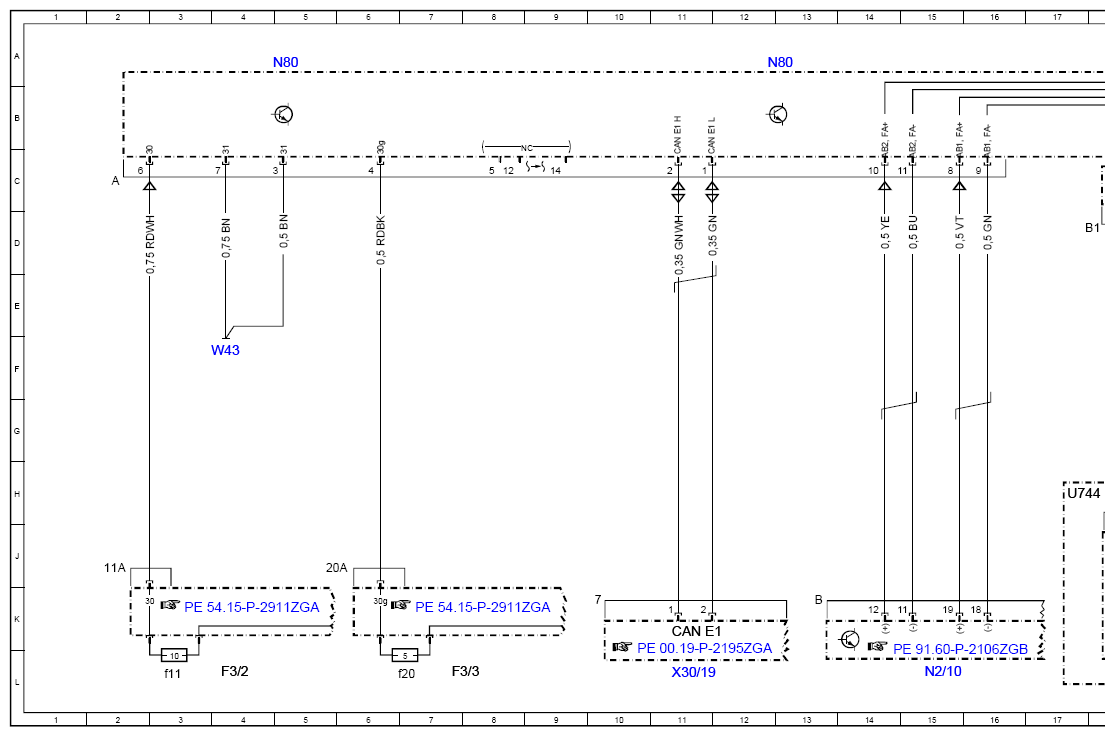

Wiring Diagram For Steering Column Module Control Unit - PE46.10-P-2101-97ZGA
Model 463
as of model year 2013 up to model year 2019
/YoM 12 model refinement package up to YoM 18 model refinement package
Control unit N80
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 56L |
| CAN E1 | Chassis CAN 1 | 11K |
| Code EZ9 | Distronic | 49A |
| F3/2 | Cockpit circuit 30 fuse box | 4L |
| F3/2f11 | Fuse 11 | 3L |
| F3/3 | Cockpit circuit 30g fuse box | 7L |
| F3/3f20 | Fuse 20 | 7L |

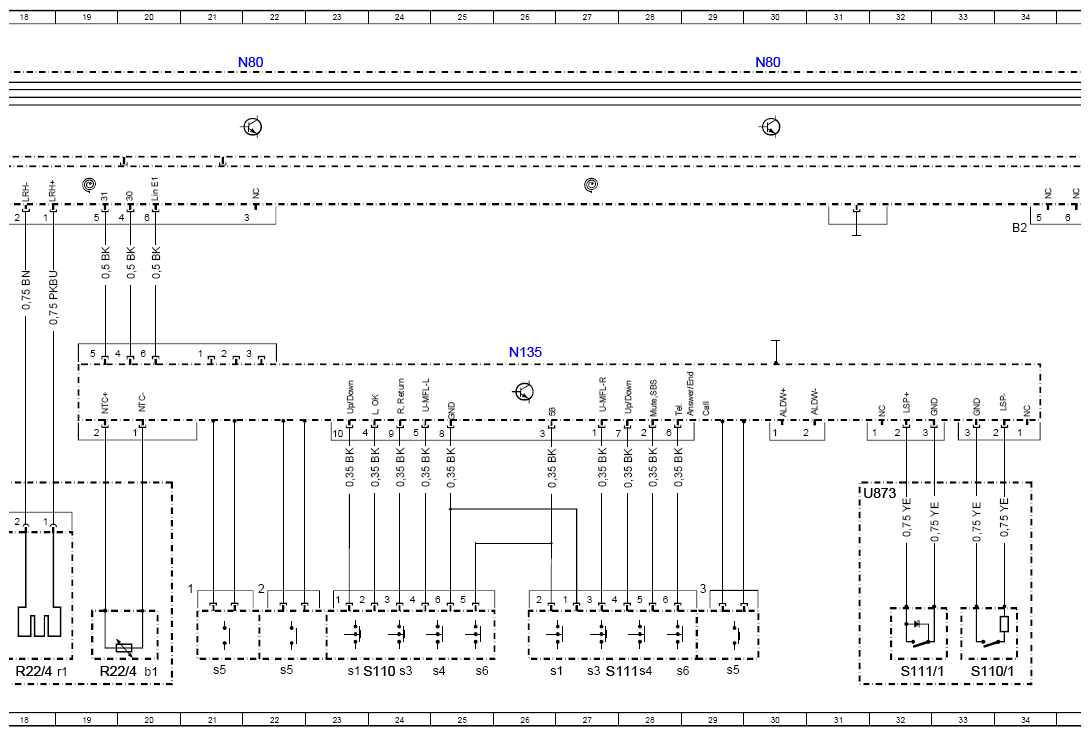

| N135 | Steering wheel electronics | 26F |
| N2/10 | Supplemental restraint system control unit | 15L |

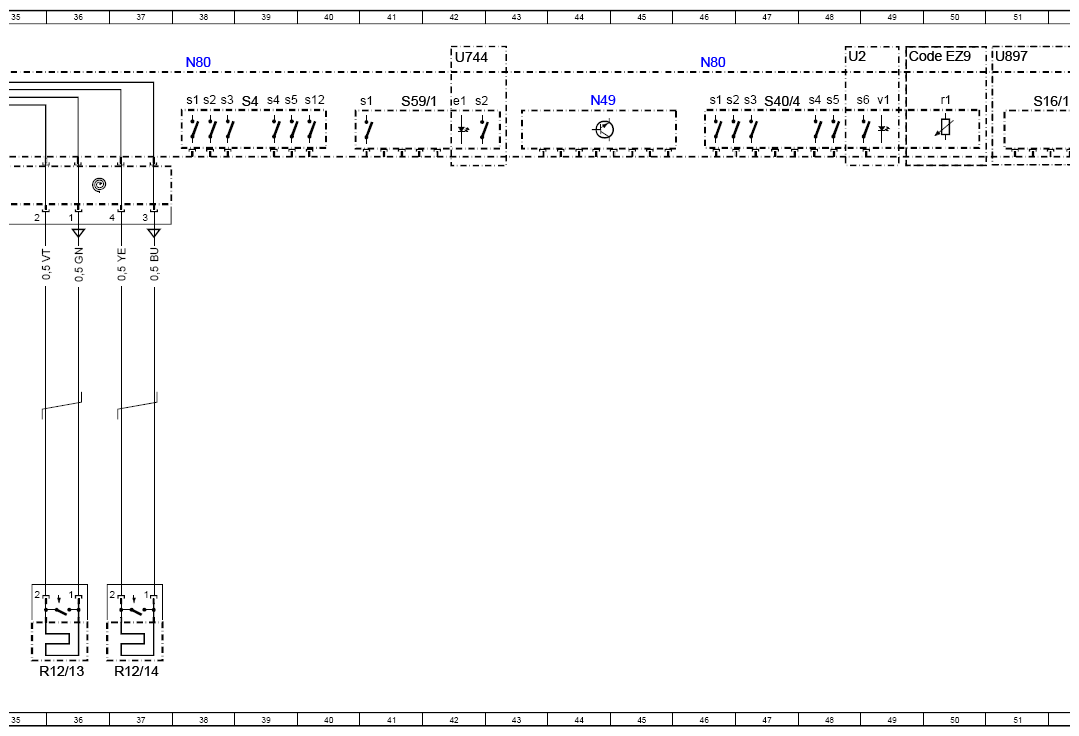

| N49 | Steering wheel angle sensor | 44B |
| N80 | Steering column module control unit | 5A |
| N80 | Steering column module control unit | 22A |
| N80 | Steering column module control unit | 38A |
| N80 | Steering column module control unit | 30A |
| N80 | Steering column module control unit | 12A |
| N80 | Steering column module control unit | 46A |
| R12/13 | Driver airbag squib 1 | 36L |
| R12/14 | Driver airbag squib 2 | 37L |
| R22/4 | Steering wheel heater | 18L |
| R22/4 | Steering wheel heater | 19L |
| R22/4b1 | Heating element temperature sensor | 20L |
| R22/4r1 | Steering wheel heater heating element | 19L |
| S110 | Left multifunction steering wheel button group | 24L |
| S110/1 | Steering wheel downshift button | 33L |
| S110s1 | Scroll forward/back button | 23L |
| S110s3 | System selection button | 24L |
| S110s4 | "Back" and voice control system OFF button | 25L |
| S110s5 | Horn button | 22L |
| S110s5 | Horn button | 21L |
| S110s6 | OK button | 25L |
| S111 | Right multifunction steering wheel button group | 27L |
| S111/1 | Steering wheel upshift button | 32L |
| S111 si | Buttons + and - for setting specific functions and volume control | 26L |
| S111s3 | Accept/terminate phone call button | 27L |
| S111s4 | Voice control system ON button | 28L |
| S111s5 | Horn button | 29L |
| S111s6 | Mute button | 28L |
| S16/13 | DIRECT SELECT lever | 51B |
| S4 | Combination switch | 39B |
| S40/4 | Cruise control lever | 47B |
| S40/4M | DISTRONIC control | 50B |
| S40/4s1 | Resume from memory switch | 46B |
| S40/4s2 | Decelerate and set switch | 46B |
| S40/4s3 | Accelerate and set switch | 47B |
| S40/4s4 | OFF switch | 48B |
| S40/4s5 | Indicator switch | 48B |
| S40/4s6 | SPEEDTRONIC switch | 48B |
| S40/4v1 | SPEEDTRONIC light emitting diode | 49B |
| S4s1 | Turn signal lamps switch | 38B |
| S4s12 | Rear-end door windshield washer system switch | 40B |
| S4s2 | Headlamp flasher/high beam switch | 38B |
| S4s3 | Low beam switch | 38B |
| S4s4 | Windshield washer system switch | 39B |
| S4s5 | Wipe switch | 39B |
| S59/1 | Steering column adjustment and steering wheel heater switch | 41B |
| S59/1e1 | Steering wheel heater indicator lamp | 42B |
| S59/1s1 | Steering column adjustment switch | 41B |
| S59/1s2 | Steering wheel heater switch | 42B |
| U2 | Valid for all except USA | 48A |
| U744 | Valid for steering wheel heater | 42A |
| U744 | Valid for steering wheel heater | 17H |
| U873 | Valid for steering wheel shift buttons | 31H |
| U897 | Valid for intelligent servo module for DIRECT SELECT | 51A |
| W43 | Ground point (firewall) | 4F |
| X30/19 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 11L |
