Update Electronic Stability Program (Esp) Control Unit Software (2025050002)

Publication date: 2025-05-01
Reference number: 2025050002

UPDATE ELECTRONIC STABILITY PROGRAM (ESP) CONTROL UNIT SOFTWARE

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 2025050002, Date of Issue: May 01, 2025

MERCEDES-BENZ:	2025 G-Class (465 platform)
NHTSA ID:	25V254

SERVICE INFORMATION

TO: ALL MERCEDES-BENZ CENTERS

CAMPAIGN DESC. 25P5496245

SUBJECT

MODEL(S) G-Class (465 platform)

MODEL YEAR(S) 2025

CAMPAIGN POPULATION

6,118

Campaign Technical Instructions

PRIOR TO PERFORMING THIS CAMPAIGN

Check the Vehicle Master Inquiry (VMI) to verify this campaign applies to the specific vehicle.

Always check for other open campaigns and perform them accordingly!

Review the entire campaign bulletin first, and perform the procedures exactly as described.

Always use the latest XENTRY Diagnosis software release with all available add-ons.
Follow the operation steps exactly as described in XENTRY Diagnosis.
Use a charger to ensure sufficient power supply to the vehicle's on-board electrical battery system (greater than 12.5 V).
If XENTRY Diagnosis is already connected to the vehicle, start with Work Procedure Step 2 .

If two or more software updates or SCN codings are performed during a single workshop visit, operation items 02-4762 and 02-5058 may be invoiced only on one of the workshop orders.

WORK PROCEDURE

Connect XENTRY Diagnosis.
Update Electronic Stability Program (ESP®) control unit software.
To do this, select menu item "Quick test view → N30/3 - Electronic Stability Program (ESP®) → Adaptations → Control unit update → Updating of control unit software".

Then follow the user guidance in XENTRY Diagnosis.

After the software update completes, perform a bus idle and then clear fault memory.

→ To do this, lock the vehicle and place the key out of range to allow the vehicle to sleep.
Disconnect XENTRY Diagnosis.

WARRANTY INFORMATION

NOTE: The following allowable labor operation should be used when submitting a warranty claim for this repair:

WARRANTY INFORMATION

Damage Code

Operation Number

Description

Labor Time (hrs.)

54 962 45

02-9334 ⁽¹⁾

Update N30/3 - Electronic Stability Program (ESP®) control unit software (XENTRY Diagnosis connected)

0.1

02-9334⁽¹⁾

Update N30/3 - Electronic Stability Program (ESP®) control unit software (XENTRY Diagnosis connected)
Additional work: Perform bus idle and clear fault memory.

0.1

02-4762⁽²⁾

Connect/disconnect diagnosis system (XENTRY Diagnosis)

0.1

02-5058⁽²⁾

Connect/disconnect starter battery charger (with XENTRY Diagnosis connected)

0.1

⁽¹⁾	Operation item may be invoiced twice for this measure due to bus idle and fault memory!

⁽²⁾	Invoice operation item only once for each Repair Order (RO).

NOTE: Always check Xentry Operation Time (XOT) for the current OP-Code times. Labor times are subject to change and updates may not be reflected in this document.

The following step applies to California dealers only.

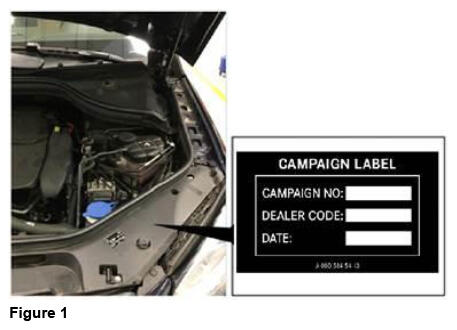

Apply Proof of Correction Label (A 000 584 54 13) to the area shown in Figure 1. Complete the blank areas on the label. Enter the unique "Campaign No." as (25V254) , along with your "Dealer Code" and the "Date" of the repair, using a black permanent marker.

NOTE: Clean bonding surface prior to affixing label.

The following step applies to California dealers only.

Provide the owner with the completed and signed Proof of Correction Certificate (A 000 584 42 14) (Figure 2) after scanning it and attaching a copy to the RO. Enter the unique "Recall Number" as (25V254).

CALIFORNIA PROOF OF CORRECTION PARTS INFORMATION

Qty.	Part Name	Part Number
1	Proof of Correction Certificate (CA Dealers Only)	A 000 584 42 14
1	Proof of Correction Label (CA Dealers Only)	A 000 584 54 13

WARRANTY INFORMATION (CALIFORNIA DEALERS: SUBMIT CLAIM ON A SEPARATE LINE OF THE SAME RO AS THE CAMPAIGN)

WARRANTY INFORMATION

Damage Code	Operation Number	Description	Labor Time (hrs.)
212CA 00	02-0001	Apply Proof of Correction Label and completed Proof of Correction Certificate	0.1
