Starters - MOTORCRAFT: Overhaul: Reassembly
- Position coils and pole pieces (with coil leads in terminal screw slot), install retaining screws. As screws are tightened, strike frame several times with soft faced hammer to seat and align pole shoes, then stake screws.
- Install plunger coil sleeve and retainer and bend tabs to retain coils to frame. Position grommet on end terminal and align into the notch in frame. Solder field coil to starter switch terminal post. Use a 300 watt iron and resin core solder.
- Check for continuity and grounds in assembled coils. Position the ground brushes to starter frame and install retaining screws. Apply a thin coat of Lubriplate on armature shaft splines. Install starter motor drive gear assembly to armature shaft and install new stop ring, stop ring retainer and thrust washer.
- Install armature in starter frame. Position the starter drive gear plunger lever to frame and starter drive assembly, and install pivot pin. Fill drive end housing bearing 1/4 full with grease. Position drive end housing to frame making sure lever return spring engages tang on lever.

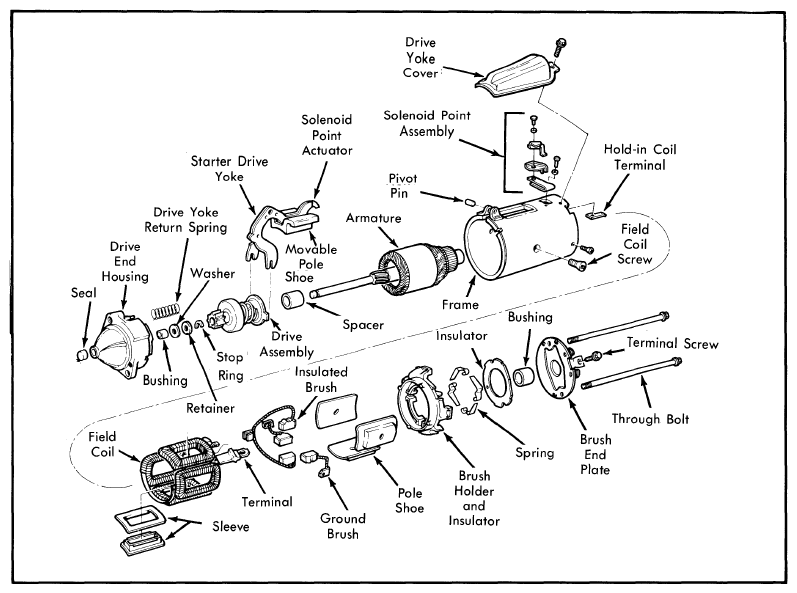

Courtesy of FORD MOTOR CO.
- Install brush holder and insert brushes and brush springs. Positive brush leads should be positioned in their respective slots to prevent potential grounding. Install brush end plate. Ensure that end plate insulator is positioned properly on end plate.
- Install through bolts to starter frame and tighten to 55-75 INCH lbs. Install starter drive plunger lever cover and tighten retaining screw. Check starter no-load current draw.
