Float Level

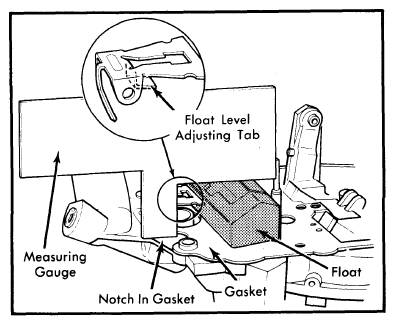

Remove upper body and gasket. Turn upper body upside down. Construct a gauge (as shown in Fig 1) to specified float level setting. Measure distance from casting surface of upper body to bottom of float. To decrease setting, bend tab away from inlet needle. To increase setting, bend tab toward inlet needle.
