Mercury
›
1982
›
Capri Black Magic
›
Repair and Diagnosis
›
Engine Performance
›
Wiring Diagrams
›
Wiring Diagrams
›
Engine Compartment
Engine Compartment

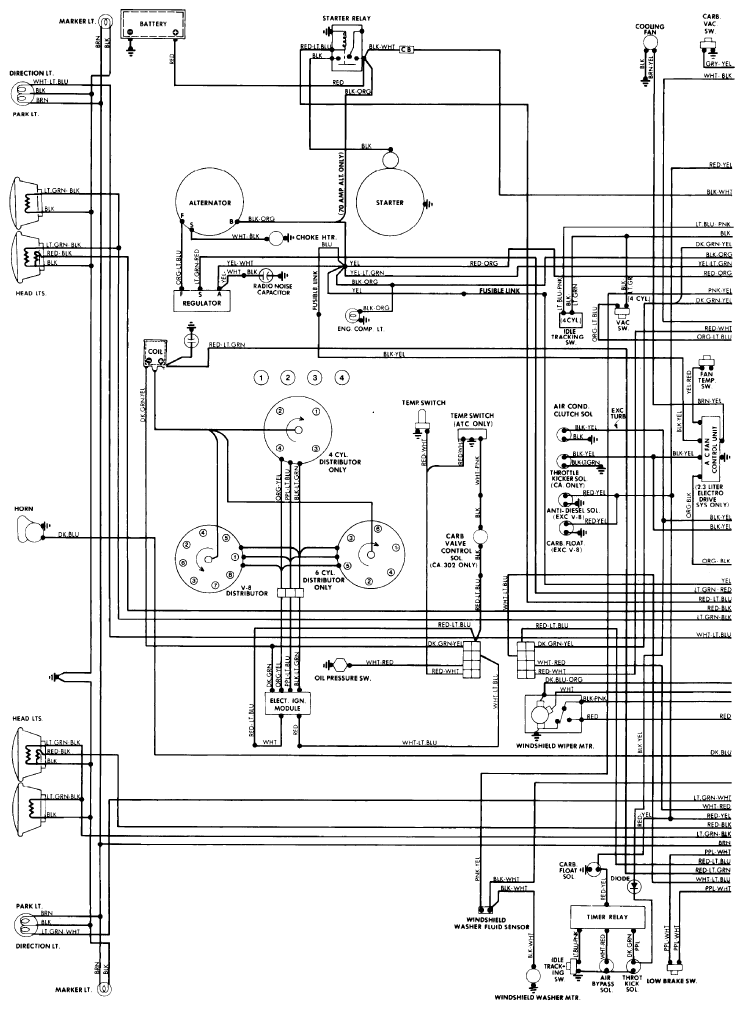

Fig 1: Wiring Diagrams - Engine Compartment
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
