Front Wheels

Once wheels are lined up straight ahead, lock steering wheel in place using steering wheel holder Adjust left and right tie rods until each wheel has 1/2 of the desired total toe specification Tighten jam nut to specifications and be sure boot on tie rod is not twisted.

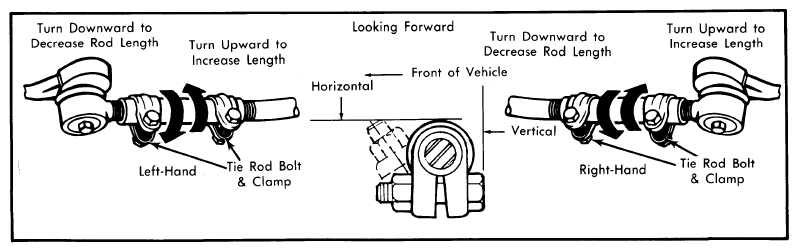

Fig 1: Tie Rod Clamp & Bolt Position Rear Wheel Drive Vehicles

Courtesy of FORD MOTOR CO.

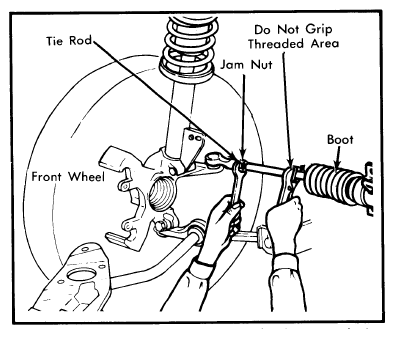

Fig 2: Toe-In Adjustment On Front Wheel Drive Vehicles

Courtesy of FORD MOTOR CO.
