All Except Front Wheel Drive Models: Reassembly

Reverse disassembly procedure, but use new roll pin and install roll pin in different groove, 180° from original groove.

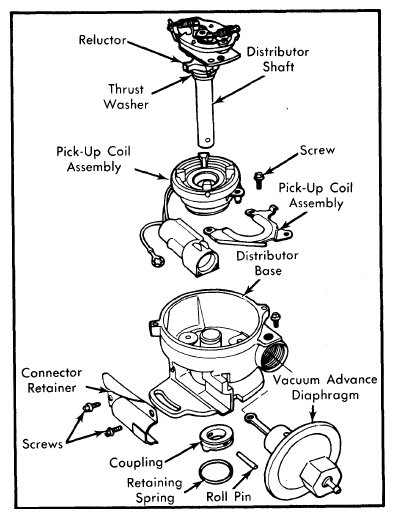

Fig 1: Components of Dura-Spark II Distributor (Except FWD Models)

Courtesy of FORD MOTOR CO.

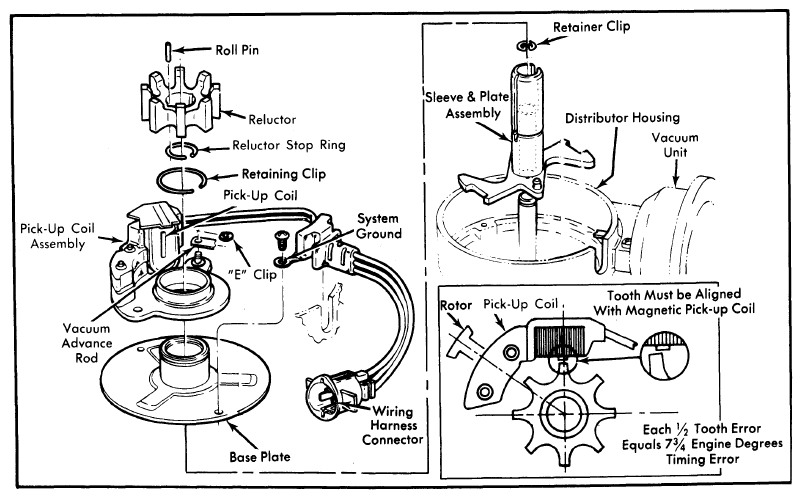

Fig 2: Exploded View of Dura-Spark Distributor for Front Wheel Drive Models w/Man. Trans.

Courtesy of FORD MOTOR CO.
