EEC III Theory/Operation: Description
NOTE:
Information on this system is also covered in the FUEL SYSTEMS section. Additional diagnostic information that relates strictly to the fuel portion of this system can be found in the ELECTRONIC FUEL INJECTION article.

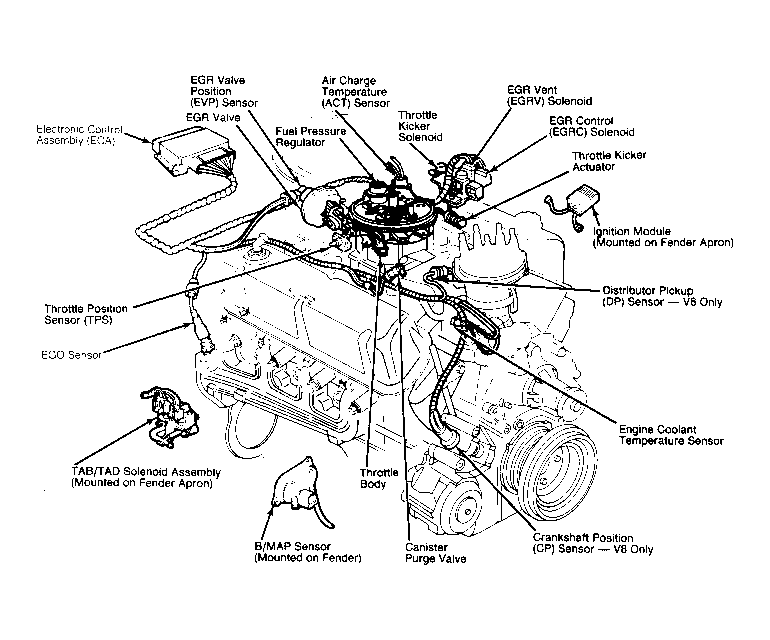

The EEC system consists of an Electronic Control Assembly (ECA), several sensors located on the engine or in the various engine systems, special actuators governed by the ECA, and various connecting electrical and vacuum lines. This system adjusts the engine to the best settings for various conditions of load, speed, temperature and altitude by controlling the following functions.
- Ignition Timing
- Carburetor Air/Fuel Ratio
- Engine Speed At Idle
- Exhaust Gas Recirculation (EGR) Flow Rate
- Secondary (Thermactor) Air Flow Rate
- Fuel Evaporation Canister Purging
