Service Point Locations

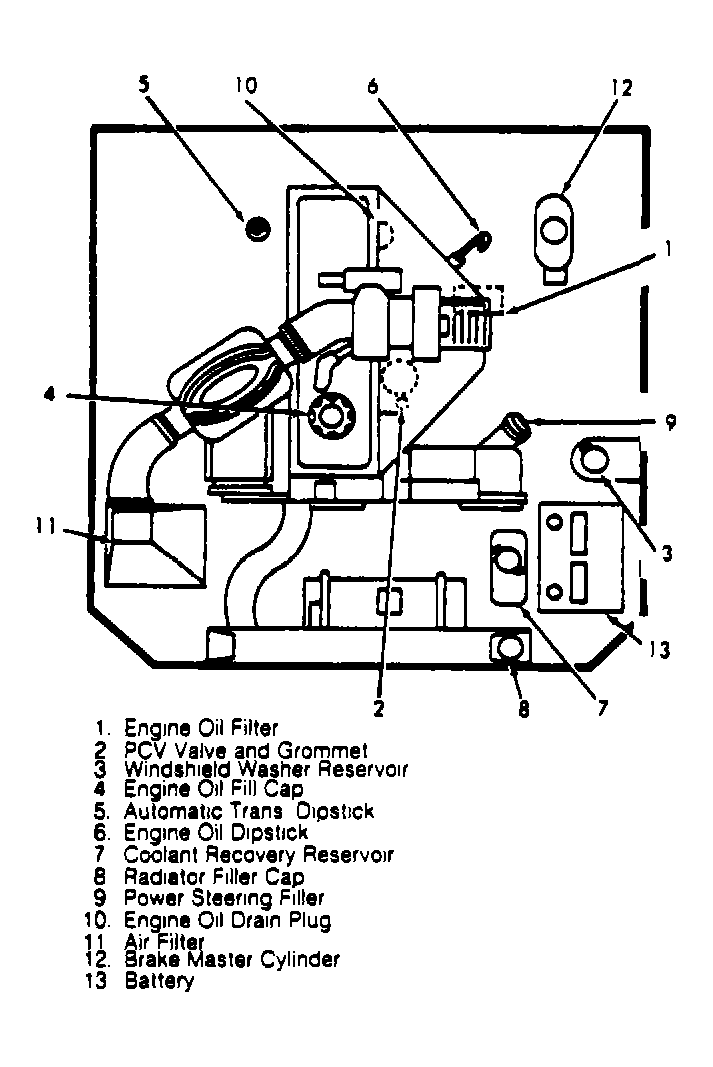

Fig 1: Service Point Locations (Typical 2.3L Engine)
G90E04137Courtesy of FORD MOTOR CO.

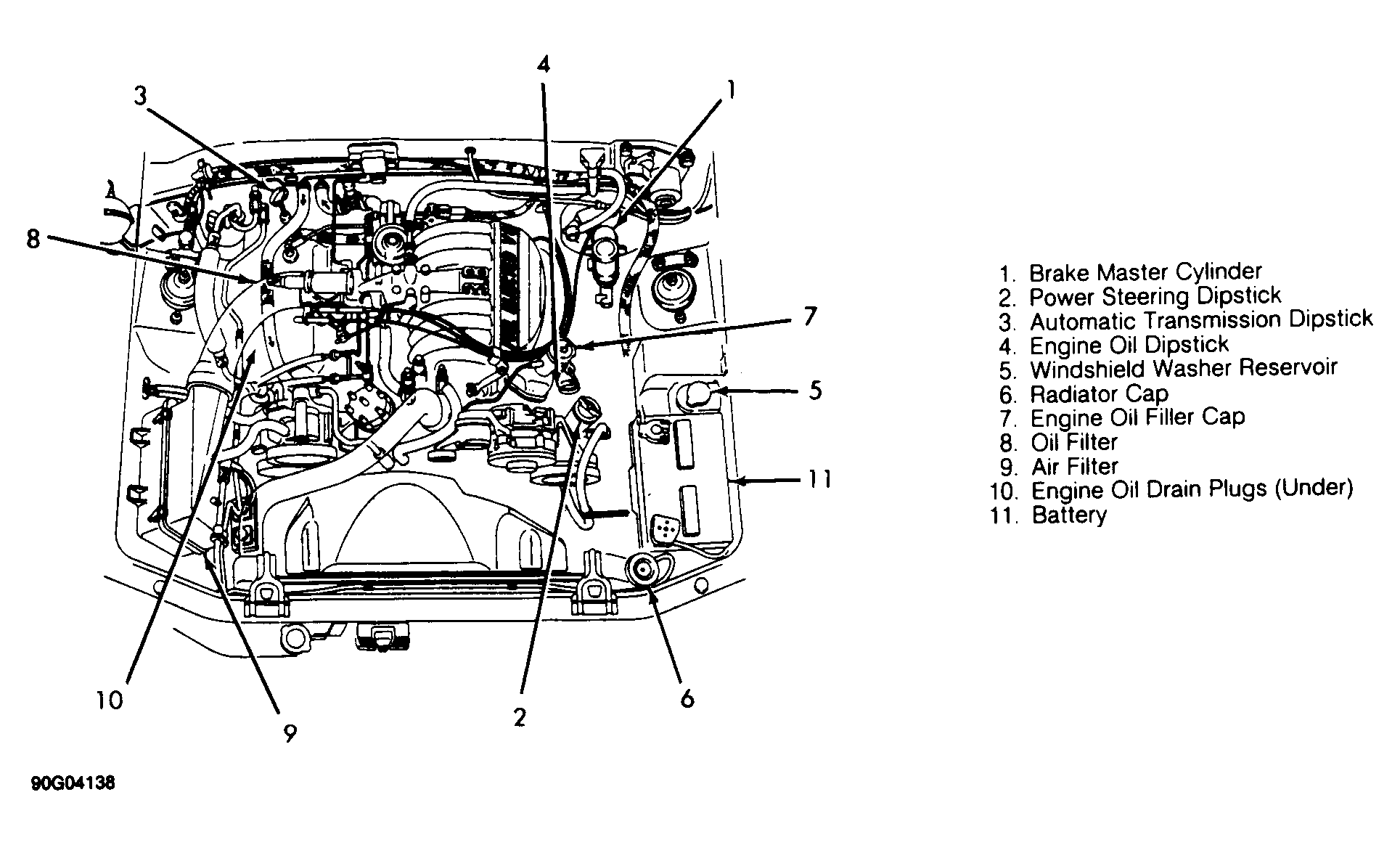

Fig 2: Service Point Locations (3.8L Engine)
G90G04138Courtesy of FORD MOTOR CO.

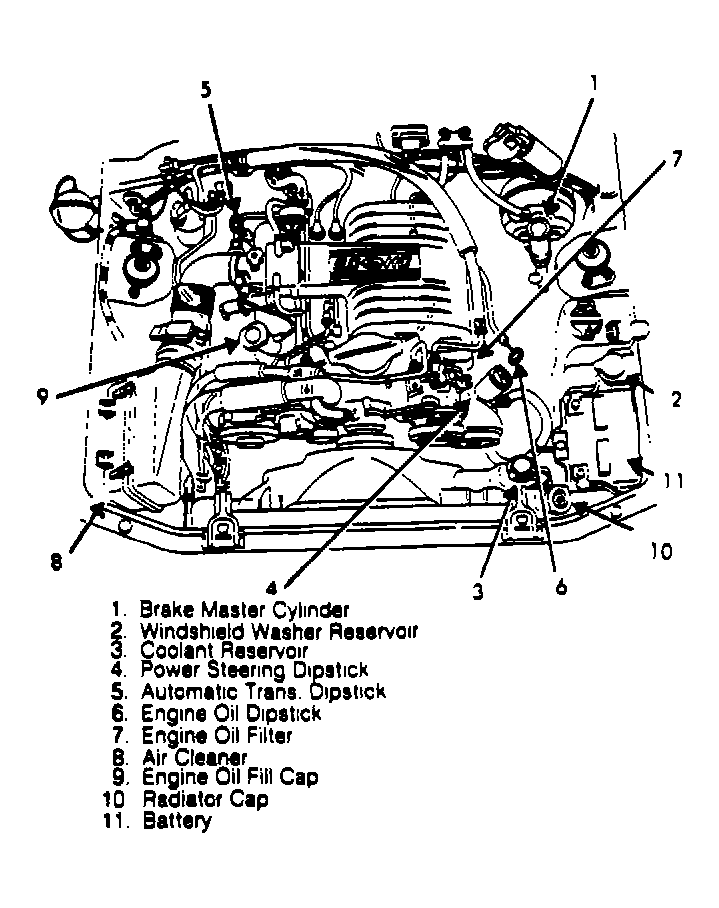

Fig 3: Service Point Locations (5.0L Engine)
G90I04139Courtesy of FORD MOTOR CO.
