Low-Reverse Servo

Apply air pressure to low-reverse servo apply passage. Low-reverse band should tighten around drum if servo is operating properly.

NOTE: If air pressure applied to either clutch passages fails to operate clutch, or operates both clutches at once, remove and check fluid passages in case and oil pump. Use air pressure to detect obstructions.

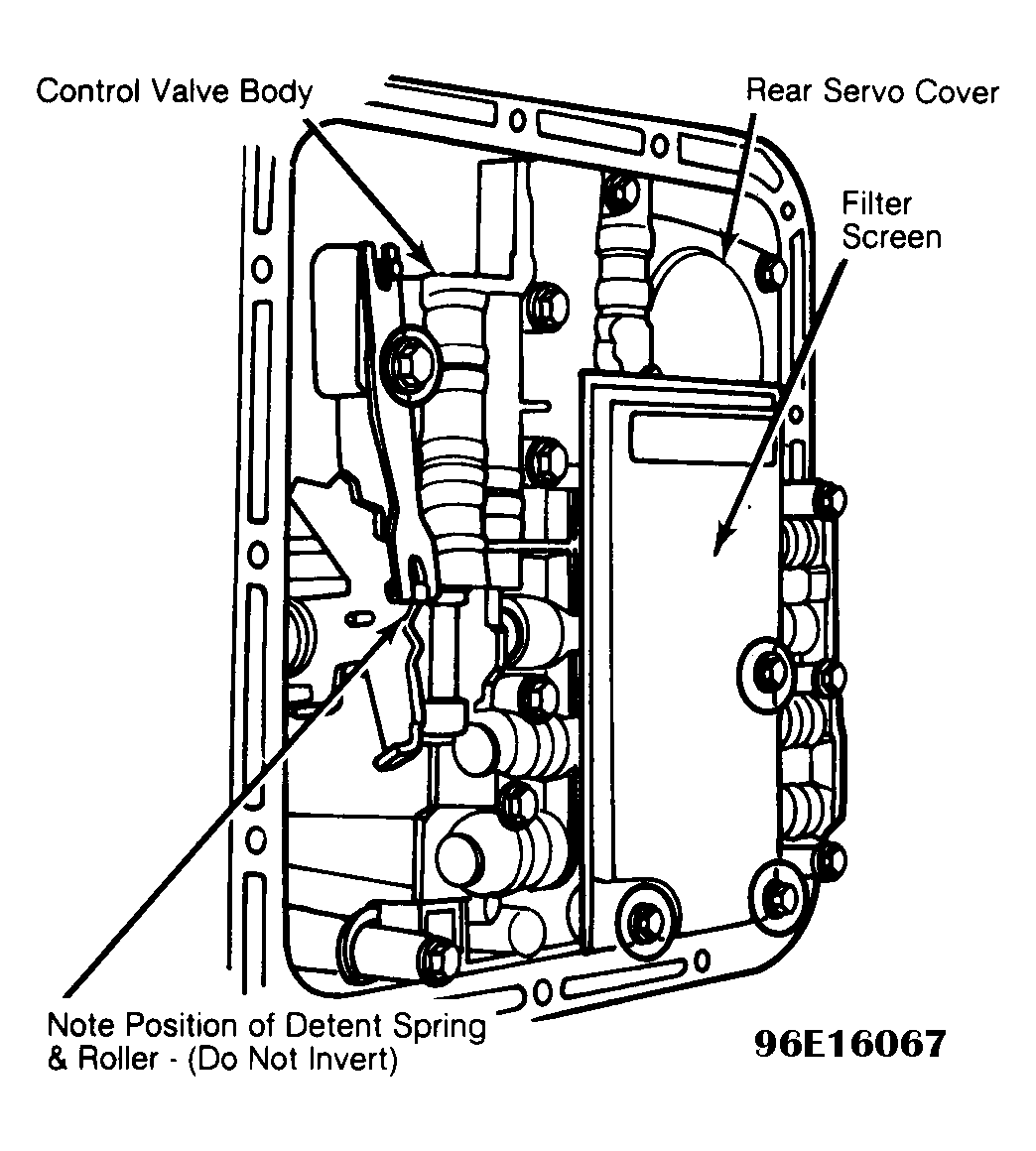

Fig 1: Bottom View of Case
G96E16067Courtesy of FORD MOTOR CO.
