Transmission Disassembly: Notes
NOTE:

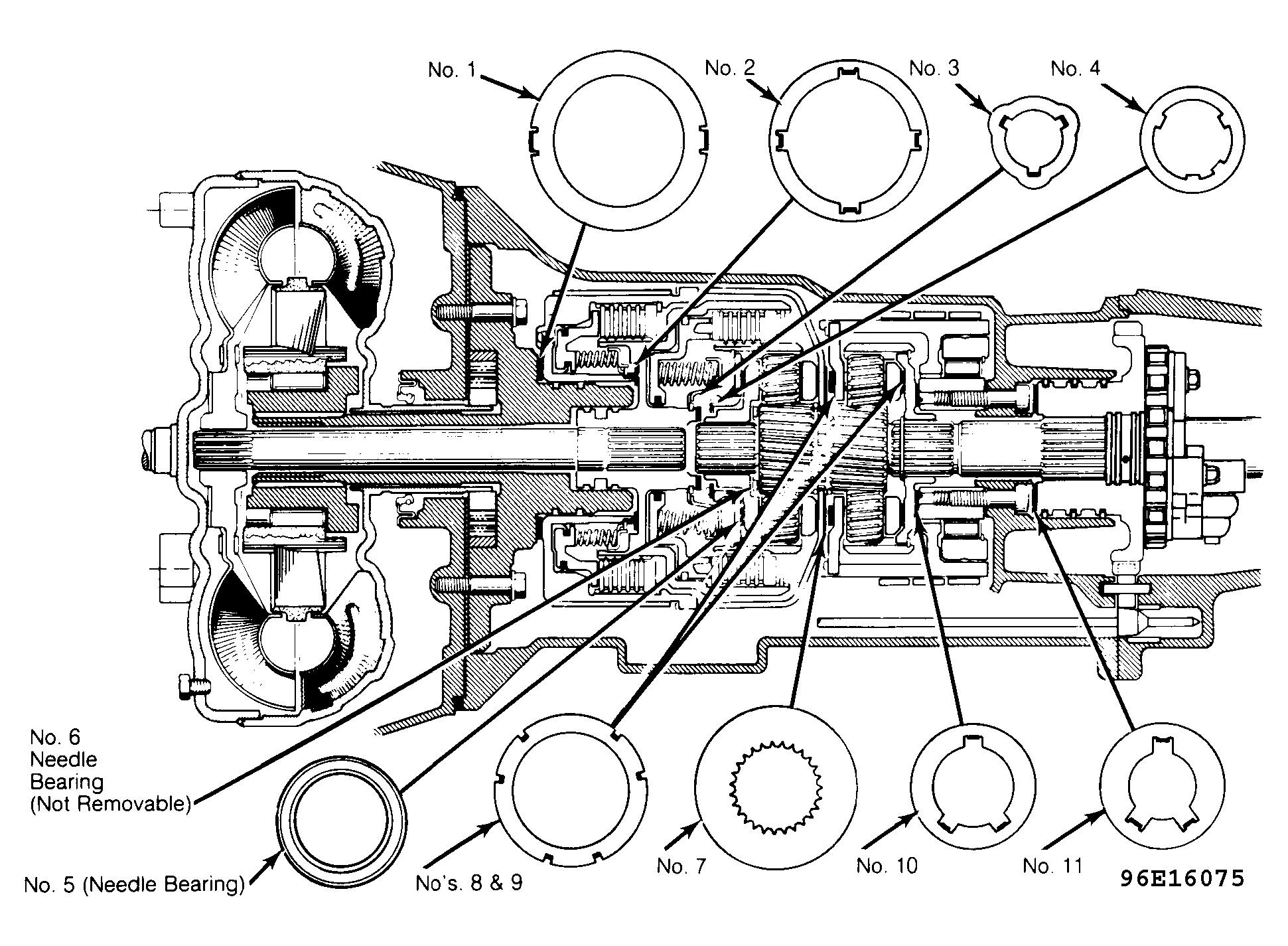

Ten thrust washers and one thrust bearing are used in this transmission, with No. 1 at front pump and No. 11 at governor. Note that No. 5 and No. 6, while performing thrust functions, are actually bearings. Because No. 6 bearing is part of staked portion of planet assembly, it is NOT
removable. Refer to Fig 1
for identification and location of thrust washers.
