Alternator & Regulator: Description

Mitsubishi alternators are conventional 3-phase, self-rectifying type units containing 6 diodes (3 positive and 3 negative). A case-mounted Integrated Circuit (IC) regulator is used on all models.

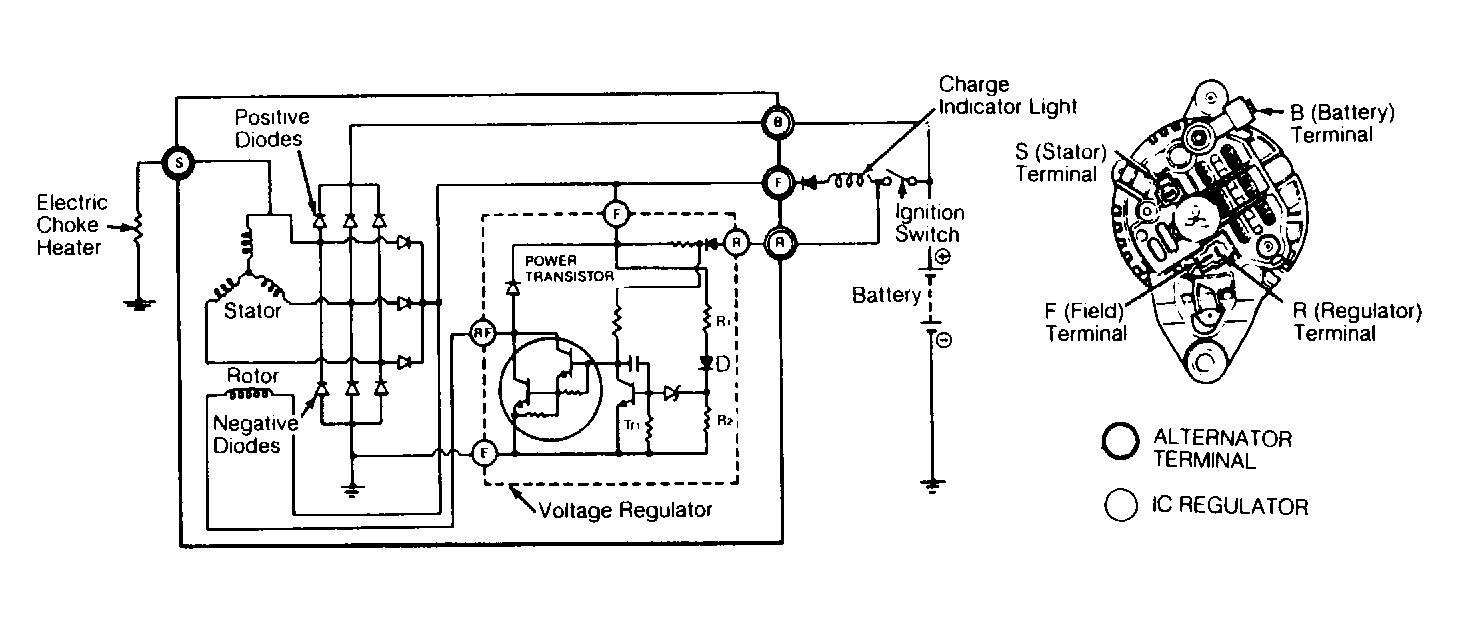

Fig 1: Festiva Charging System Wiring Schematic & Terminal ID

Courtesy of FORD MOTOR CO.

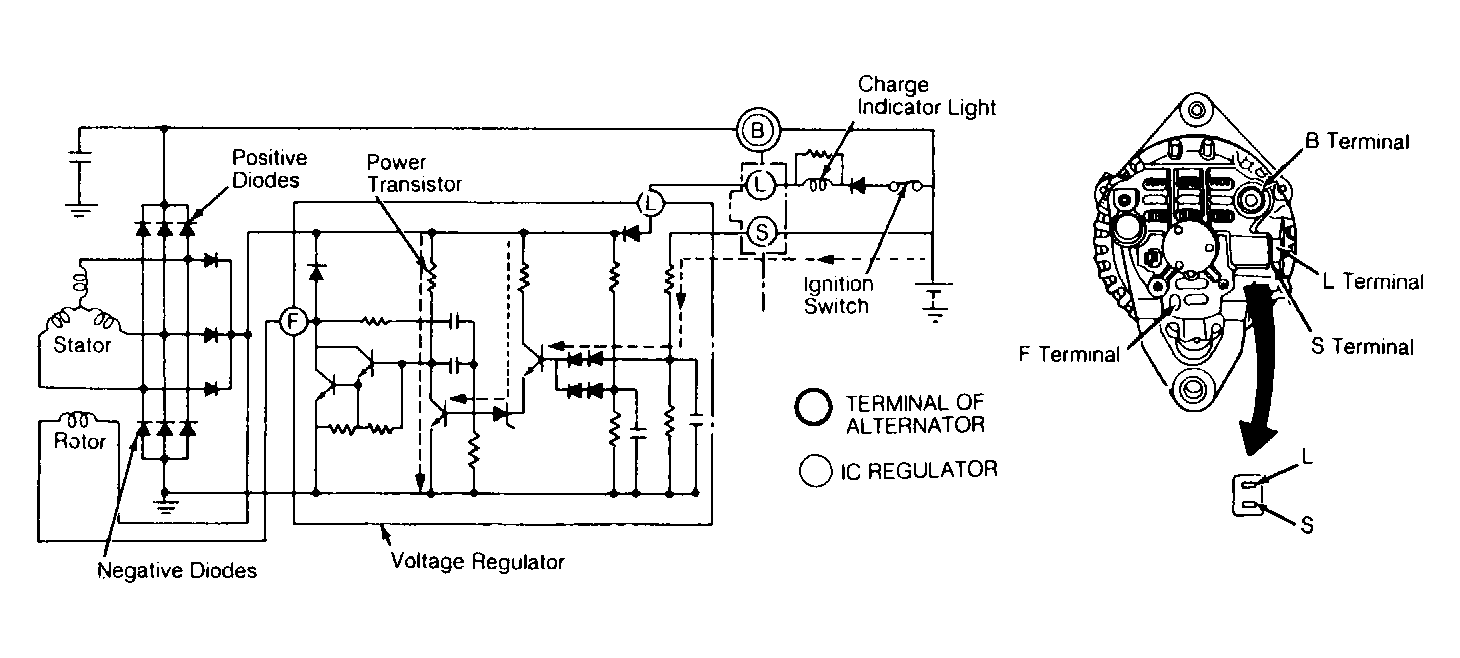

Fig 2: Tracer Charging System Wiring Schematic & Terminal ID

Courtesy of FORD MOTOR CO.
