Choke Unloader

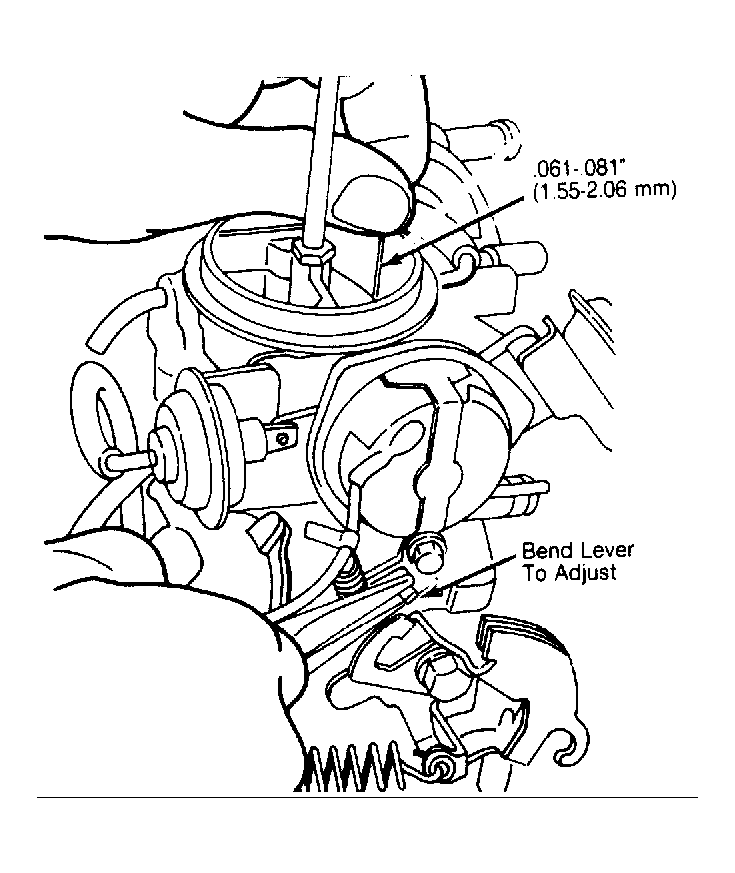

Open throttle fully while holding choke valve closed. Measure distance between upper edge of choke plate and air horn. Clearance should be .061-.081" (1.55-2.06 mm). Adjust clearance by bending choke unloader lever. See Fig 1 .
Open throttle fully while holding choke valve closed. Measure distance between upper edge of choke plate and air horn. Clearance should be .061-.081" (1.55-2.06 mm). Adjust clearance by bending choke unloader lever. See Fig 1 .
