Wiring Diagrams

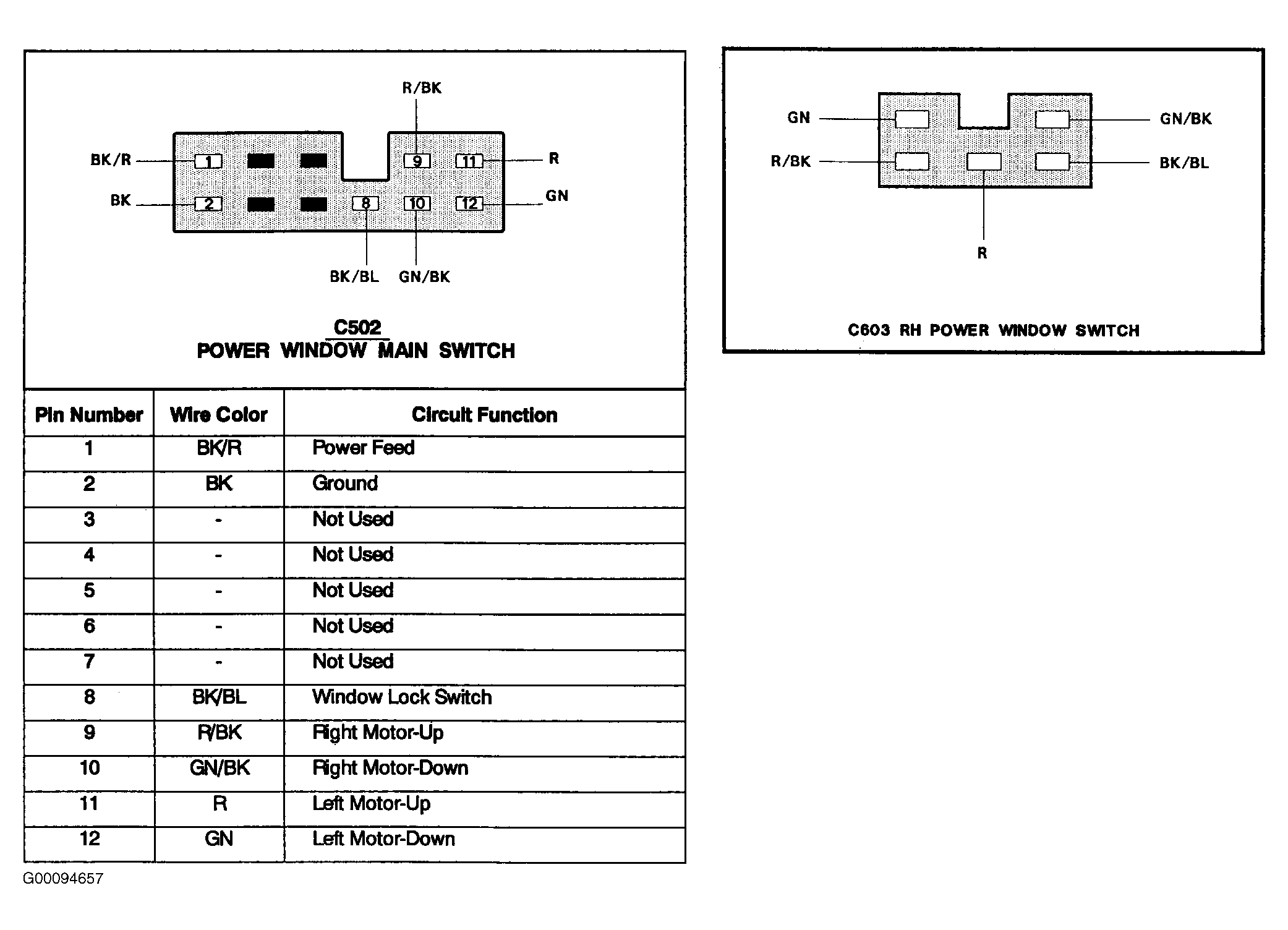

Fig 1: Power Window Connector Identification
G00094657Courtesy of FORD MOTOR CO.

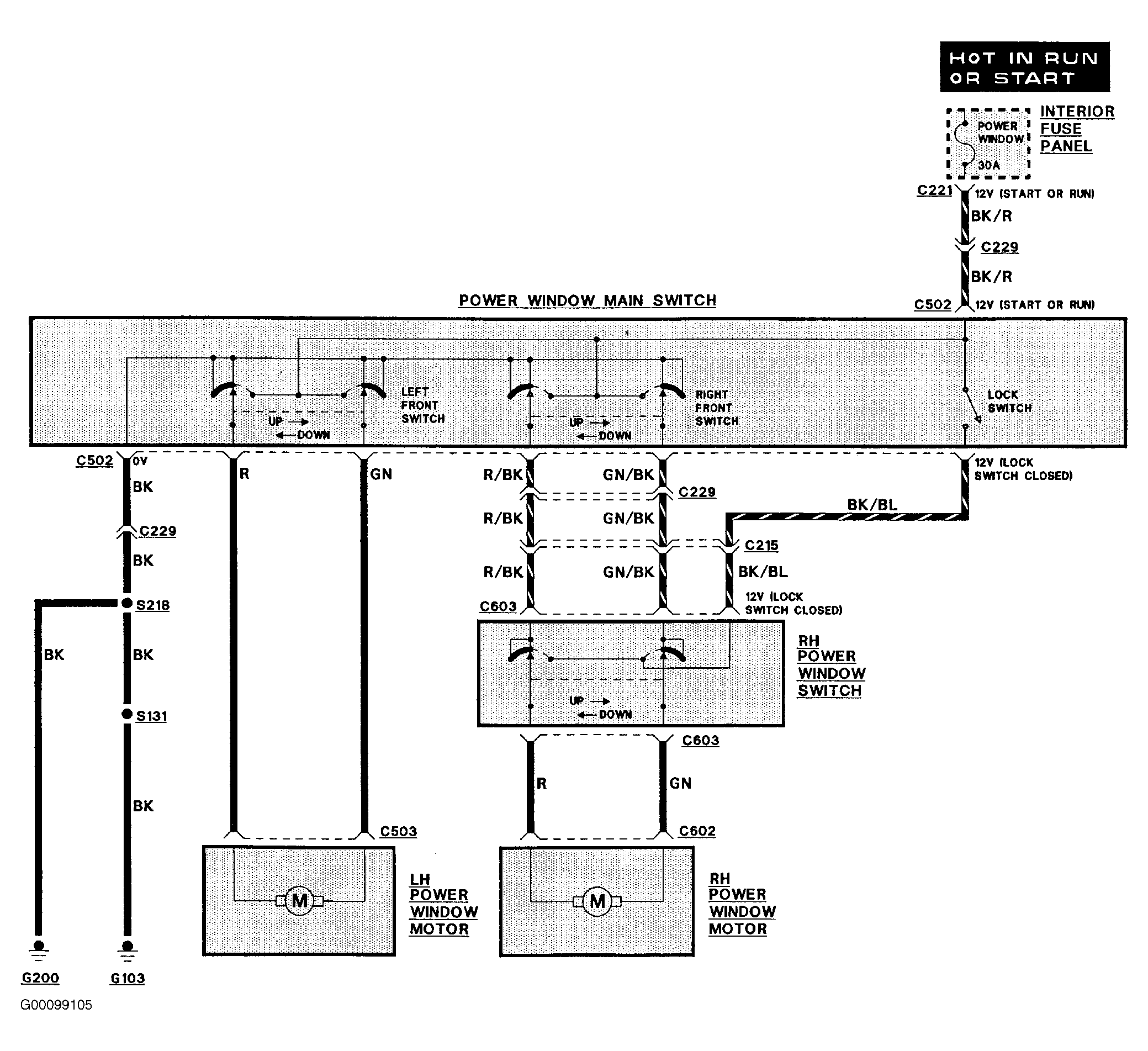

Fig 2: Power Window Wiring Diagram
G00099105Courtesy of FORD MOTOR CO.
